GB
PROTOTHERM
Instructions for Installation and Use
1. Important Information
Please read carefully all the information provided in these
instructions. Keep the instructions in a safe place and if
necessary give them to any future owner.
- The device may only be installed by an authorized and
qualified technician.
The unit may only be used for space heating in
-
enclosed rooms.
Any examination of the heater or repair work may only
-
be carried out by a qualified electrician.
Disconnect the heater from the power supply if it is
-
faulty or is not used for a long time. Disconnect or
unscrew fuse.
Do not cover the heater in any way (risk of fire).
-
Warning: Outer surfaces become hot when heater is
-
switched on.
Do not leave heater unattended when small children
-
are present.
Do not insert any objects into the openings.
-
Do not use the heater in rooms containing flammable
-
materials (e.g. solvents, etc.).
Do not place the connecting lead on top of the
-
appliance.
Warning: If the heater is switched on automatically (by
-
the thermostat), there is a danger of fire if it has been
in any way covered or blocked.

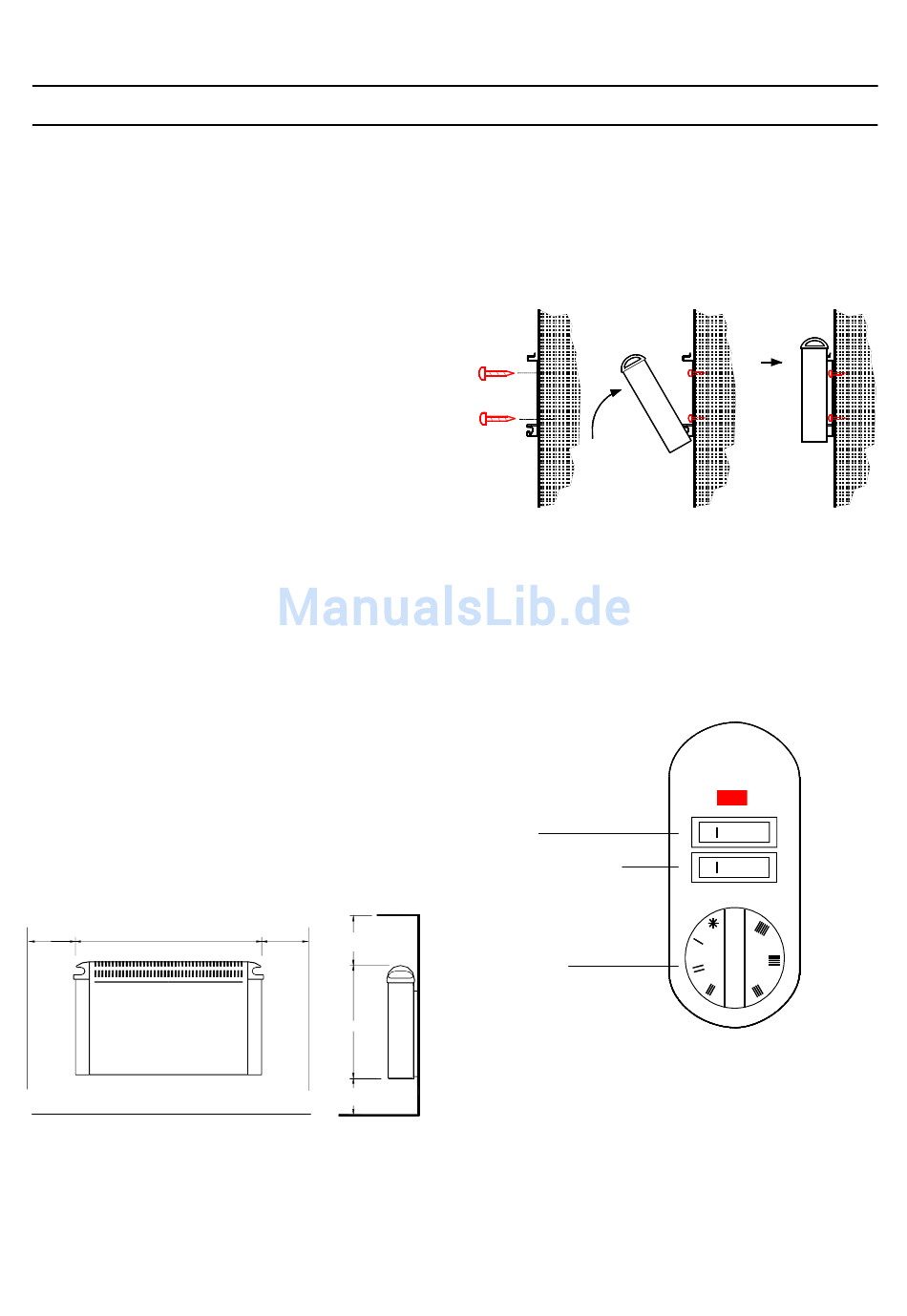

2. Positioning, Installation, Minimum Clearances
When installed, the heater must be aligned horizontally on a
vertical wall, as shown in the illustration.
The minimum clearances shown below must be complied
with.
In addition, a minimum distance of at least 500 mm must be
maintained in front of the heater.
The heater must not be located directly beneath a wall
socket outlet.
Do not install the heater where the controls can be reached
by a person bathing or showering.
Caution: Do not place near flammable objects.
Ensure that air can enter and leave the heater freely, at the
inlets below and the outlets above.
577
230
MIN
DKK 100 ... DKK 300 Convector heater
230
450 MIN
MIN
357
230 MIN
4
Wall Mounting
IMPORTANT-
The original wall brackets supplied attached to the rear of
the unit must be used.
- Drill mounting holes for the wall brackets.
- Screw the brackets securely to the wall.
- Hang the heater from the wall brackets using the slits in
its rear wall.
- Secure the heater at the top on the wall brackets.
3. Electrical Connection
The heater lead must be connected to a suitable socket.
If the connecting lead is damaged, it must be replaced; a
special new lead can be obtained from the manufacturer or
from after-sales service.
4. Heater Operation
All switch functions are explained below.
On/Off
Output 50%, 100%
(DKK 150 – DKK 300)
Thermostat
The heater is equipped with a thermostat, by means of
which the desired room temperature can be set.
The setting * represents a room temperature of about 6°C
(protection against freezing).
Turning the thermostat knob to the right (clockwise)
increases the temperature setting, while turning to the left
(anticlockwise) reduces the desired temperature.
453321.66.75gb 01/04/A
I O
II I
