Start Guide - Sharp AL-2051 Startanleitung

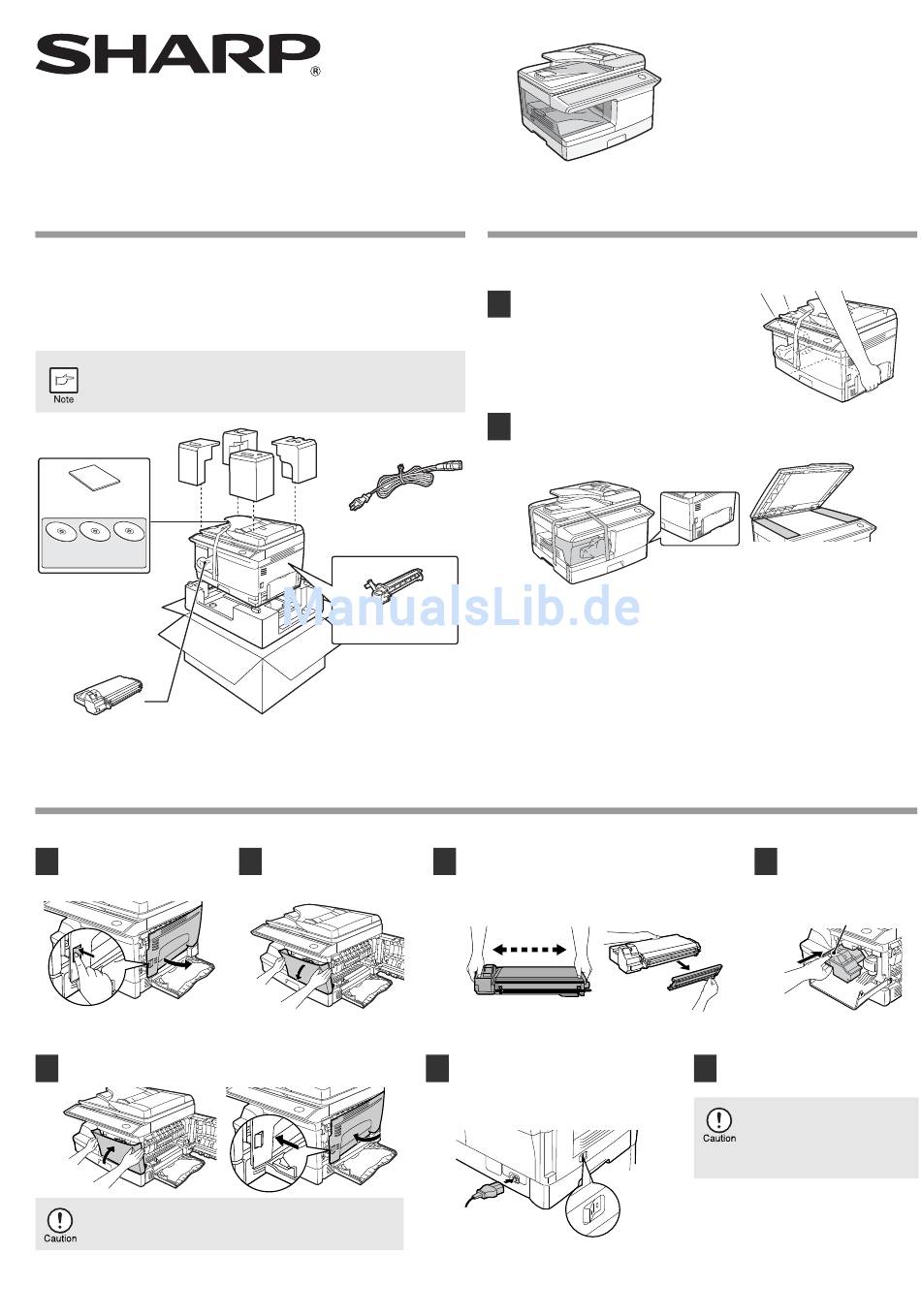

DIGITAL MULTIFUNCTIONAL SYSTEM

START GUIDE

This guide explains how to install the machine, and indicates important points to note for installation and usage. Read and understand this guide to ensure
that you install the machine correctly. The Operation Guide for the machine is on the accompanying CD-ROM. The procedure for viewing the guide is
explained in "6. HOW TO USE THE OPERATION GUIDE". After installation, read the Operation Guide to make full use of all the machine has to offer.
1. CHECKING PACKED COMPONENTS AND
ACCESSORIES
Open the carton and check if the following components and accessories
are included.
If anything is missing or damaged, contact your authorized service
representative.
If the machine does not function properly during setup or use,
or if a function cannot be used, see "TROUBLESHOOTING
AND MAINTENANCE" (p.137).
START GUIDE
CD-ROM
TD cartridge
3. INSTALLING THE TD (TONER DEVELOPER) CARTRIDGE
Open the bypass tray, and
1
then open the side cover.
Close the front cover and then the side cover by pressing the
5
round projections near the side cover open button.
When closing the covers, be sure to close the front cover
securely and then close the side cover. If the covers are
closed in the wrong order, the covers may be damaged.
Power cord
Drum cartridge
(installed in unit)
Press gently on both
2
sides of the front cover to
open the cover.
2. PREPARING THE MACHINE FOR
INSTALLATION
Be sure to hold the handles on both
1
sides of the machine to unpack the
machine and carry it to the installation
location.
Remove all pieces of tape shown in the illustration below and then open
2
the RSPF and remove the protective materials. Take out the bag
containing the TD cartridge.
Remove the TD cartridge from the bag. Hold the
3
cartridge on both sides and shake it horizontally
four or five times. Hold the tab of the protective
cover and pull the tab to your side to remove the
cover.
4 or 5 times
Ensure that the power switch of the
6
unit is in the OFF position. Insert the
attached power cord into the power
cord socket at the rear of the unit.
MODEL: AL-2051
While pushing the lock
4
release button, gently
insert the TD cartridge
until it locks into place.
Lock release button
Plug the other end of the power cord
7
into the nearest outlet.
Only insert the power cord
into a properly grounded wall
socket.
Do not use extension cords or
power strips.
1
