Start Guide - Sharp MX-B200 Startanleitung

DIGITAL MULTIFUNCTIONAL SYSTEM

START GUIDE

This guide explains how to install the machine, and indicates important points to note for installation and usage. Read and understand this guide to
ensure that you install the machine correctly. The Operation Guide for the machine is on the accompanying CD-ROM. The procedure for viewing the
guide is explained in "4. HOW TO USE THE OPERATION GUIDE". After installation, read the Operation Guide to make full use of all the machine
has to offer.

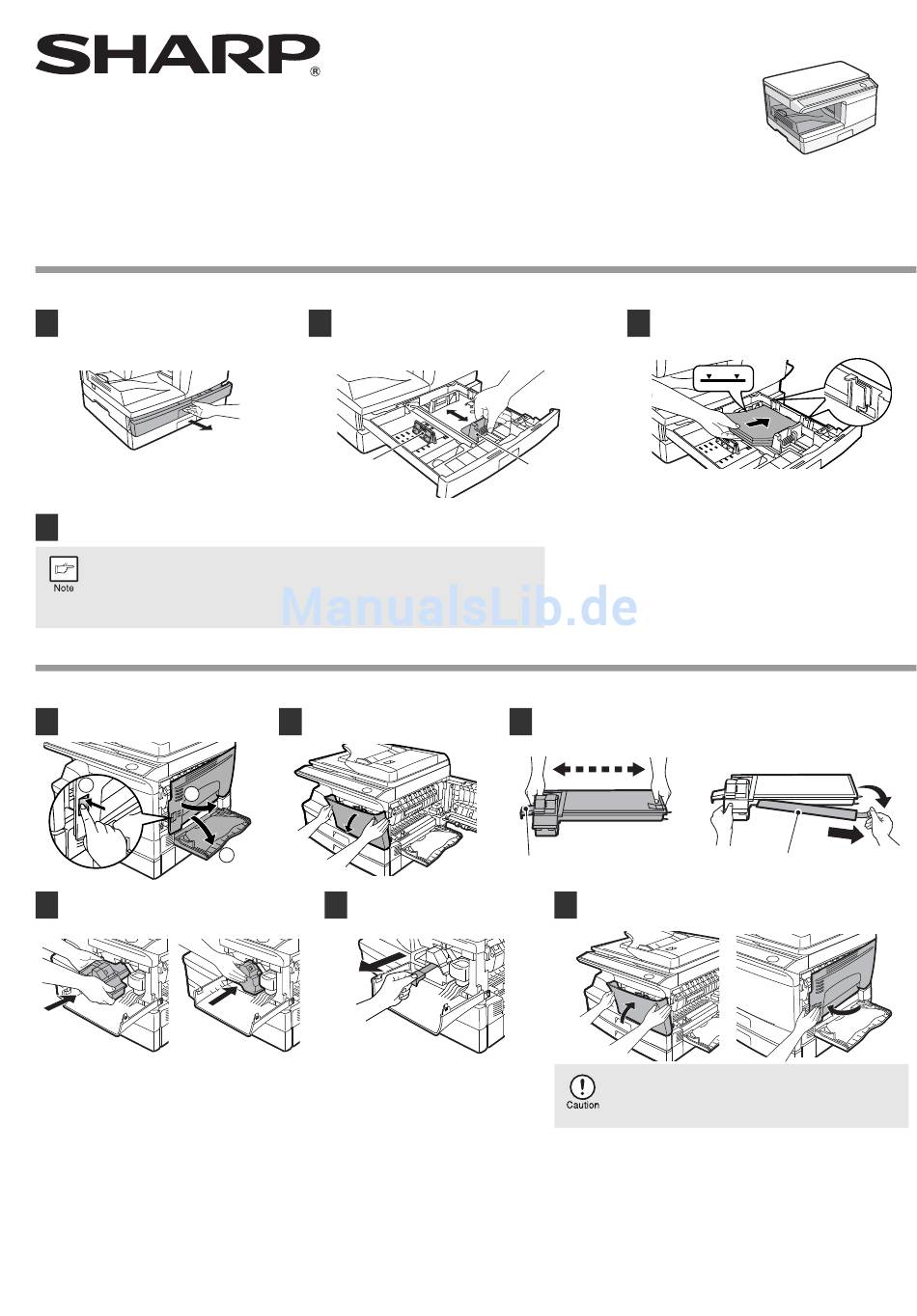

1. LOADING PAPER
Raise the handle of the paper tray and
1
pull the paper tray out until it stops.
Gently push the paper tray back into the unit.
4
• Be sure that paper is free of rips, dust, wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is the same size and type.
• When loading paper, ensure there is no space between the paper and the
guide, and check if the guide is not set too narrow causing the paper to bend.
Loading paper in these ways will result in document skew or a paper jam.
2. INSTALLING THE TONER CARTRIDGE
Open the multi-bypass tray, and
1
then open the side cover.
2
3
Gently insert the toner cartridge until it
4
locks in place.
7
Squeeze the lever of paper guide (A) and slide
2
the guide to match with the width of the paper.
Move paper guide (B) to the appropriate slot
as marked on the tray.
(B)
Push gently on both sides of the
2
front cover to open the cover.
1
Remove the tape from the
5
shutter.
Fan the paper and insert it into the tray. Make
3
sure the edges go under the corner hooks.
(A)
Grasp the cartridge on both sides and shake it horizontally four or five
3
times. After shaking the cartridge, remove the toner seal.
4 - 5
Shutter
Close the front cover and then the side cover by pressing
6
the round projections near the side cover open button.
When closing the covers, be sure to close the front
cover securely and then close the side cover. If the
covers are closed in the wrong order, the covers may
be damaged.
MODEL:MX-B200
Toner seal
1
