Preparing the installation

Caution!
Ensure that there are no electric wires, gas or water pipes in the
area where holes are to be made.
Caution!
Holes must be drilled differently depending on how the
appliance is designed. Before installing the extractor hood, take
note of its design.

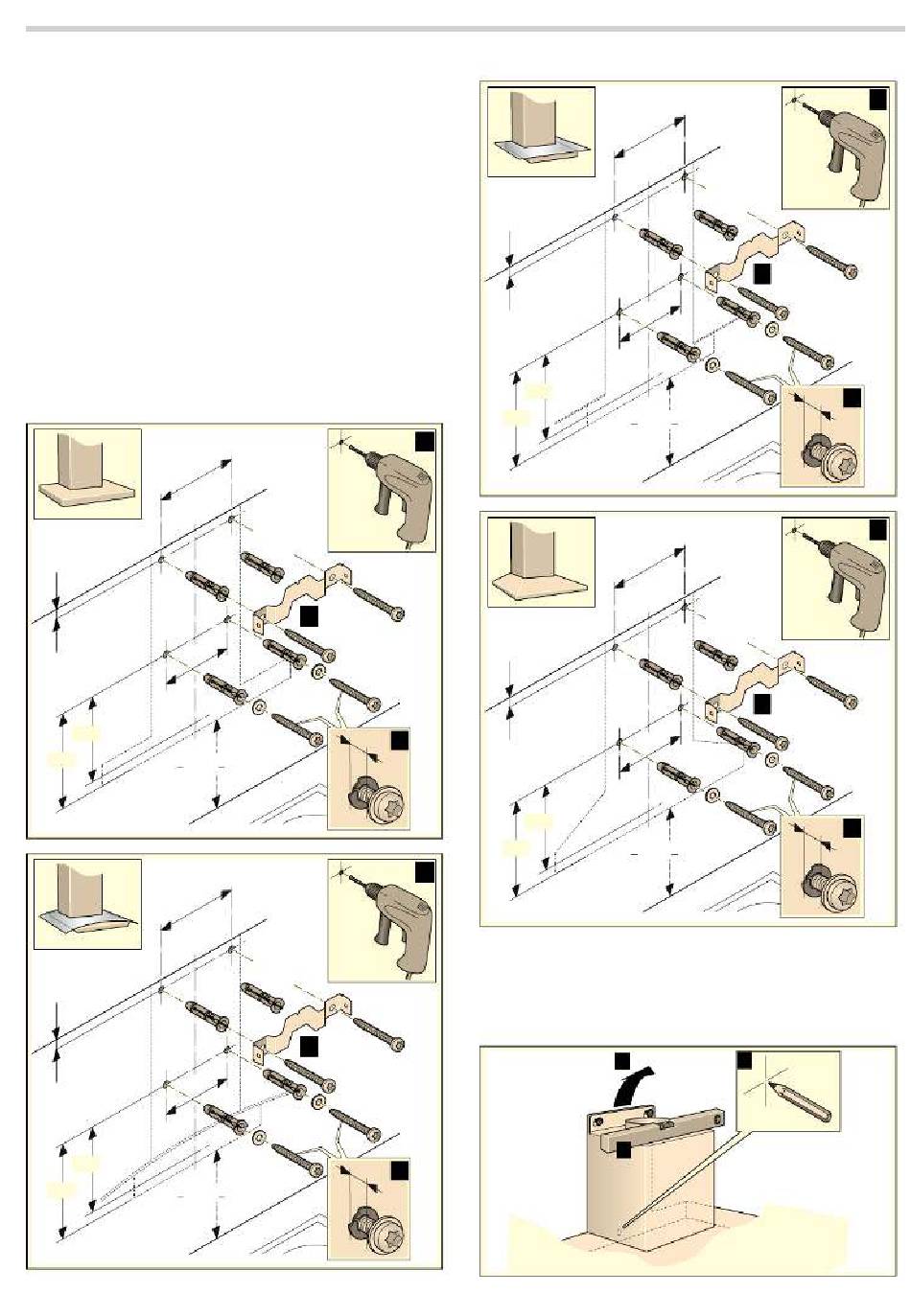

1. Mark a vertical centre line on the wall from the ceiling to the
lower edge of the extractor hood.
2. Mark positions for the screws and the contour of the
attachment area.
3. Drill 8mm Ø holes to a depth of 80mm and press the wall
plugs flush with the wall. ¨
Screw on the fixing bracket for the flue duct. ©
4.
5. Screw in 2 securing screws with washers to approx.5mm. ª




 
 ! 




 
 ! 
26
[
%

 !  
[
%

 !  


 
$

&


$
Installation
1. Attaching and aligning the appliance. ¨
2. Mark the hole for the safety screw. ©
3. Remove the appliance once more. ª
&

[
%

 !   !  

[
%

 !   !  
& %
$
$
 &
$
&

