4

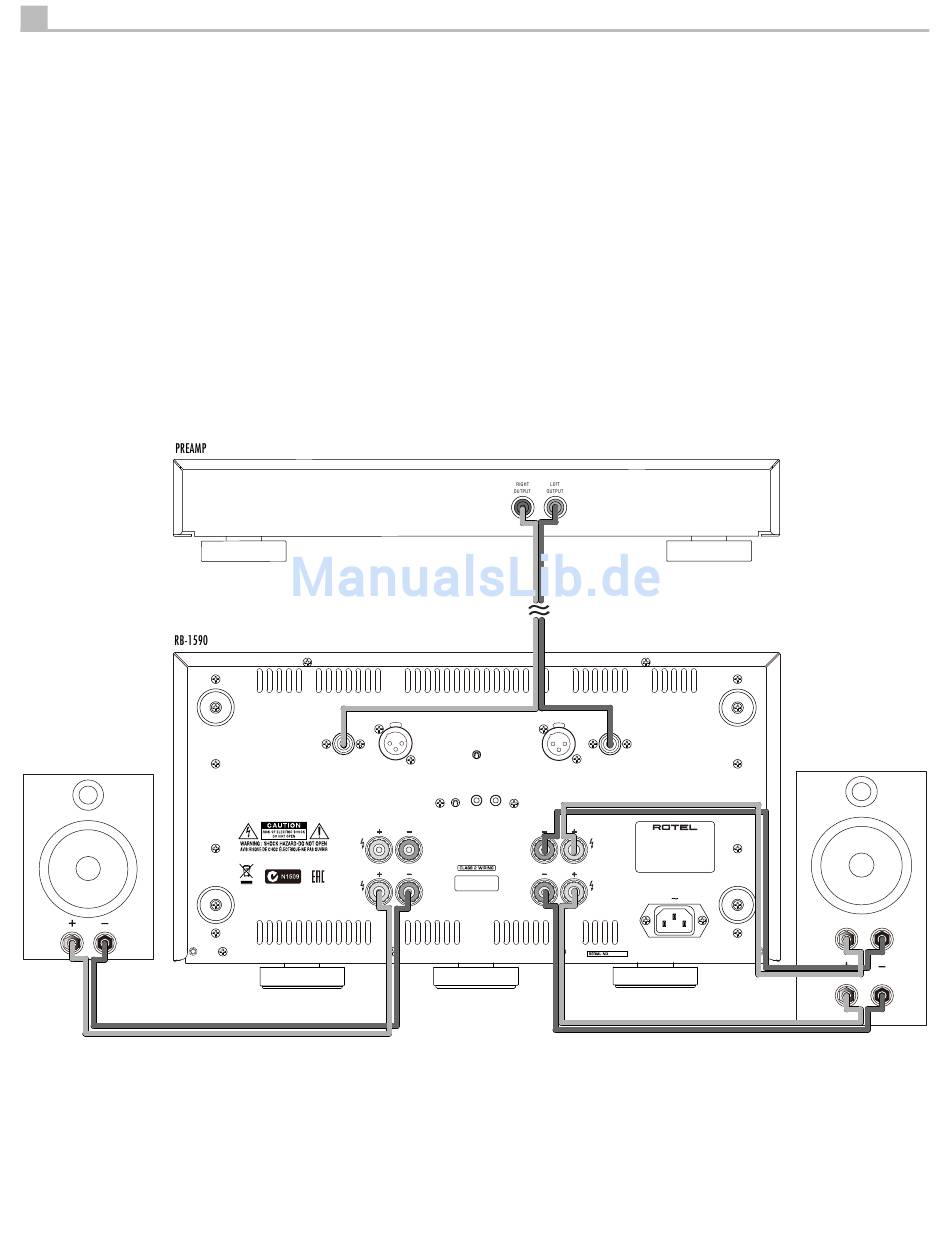

Figure 2: Analog Inputs and Speaker Output Connections
Branchements des entrées analogiques et sorties enceintes acoustiques
Anschlussdiagramm
Conexiones Analógicas de Entrada y de Salida a las Cajas Acústicas
Analoge ingangen en luidsprekeruitgangen
Collegamenti ingressi analogici ed uscite diffusori
Analoga ingångar och högtalaranslutningar
Аналоговые входы и выходы на акустические системы
SPEAKER
Single Wire Connection
RIGHT INPUT
UNBALANCED BALANCED
PUSH
BALANCED
UNBALANCED
12V TRIGGER
ON
OFF IN OUT
RIGHT SPEAKER
SPEAKER IMPEDANCE
COMBINED LOAD
4 OHMS MINIMUM
RB-1590 Stereo Power Amplifier
LEFT INPUT
BALANCED UNBALANCED
PUSH
LEFT SPEAKER
POWER AMPLIFIER
MODEL NO. : RB -1590
POWER CONSUMPTION : 800W
RP-553

Bi-wire Connection

SPEAKER
HF
LF
