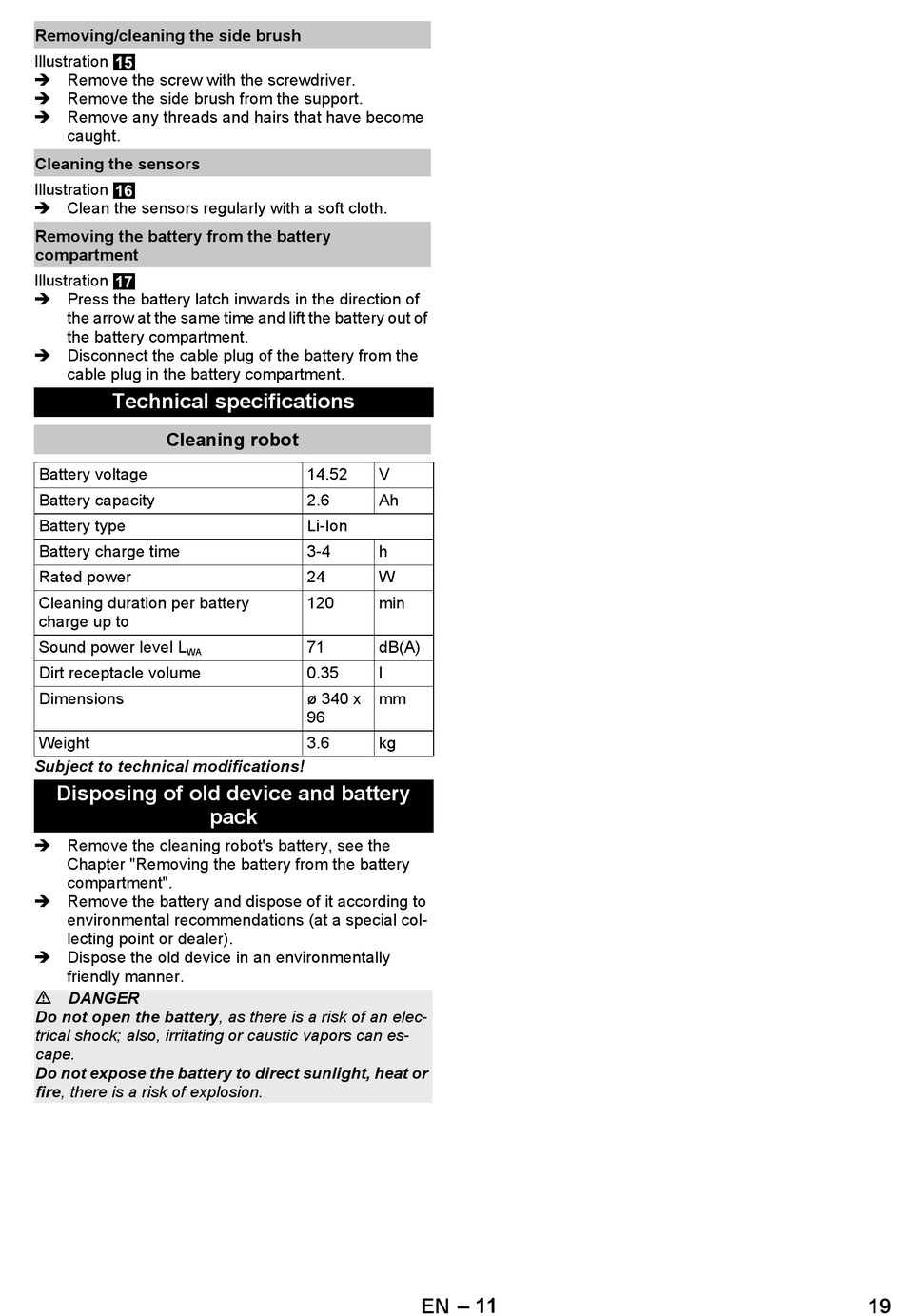

Technical Specifications; Disposing Of Old Device And Battery Pack - Kärcher RC 3 Premium Originalbetriebsanleitung

Removing/cleaning the side brush
Illustration
 Remove the screw with the screwdriver.
 Remove the side brush from the support.
 Remove any threads and hairs that have become
caught.
Cleaning the sensors
Illustration
 Clean the sensors regularly with a soft cloth.
Removing the battery from the battery
compartment
Illustration
 Press the battery latch inwards in the direction of
the arrow at the same time and lift the battery out of
the battery compartment.
 Disconnect the cable plug of the battery from the
cable plug in the battery compartment.

Technical specifications

Cleaning robot
Battery voltage
Battery capacity
Battery type
Battery charge time
Rated power
Cleaning duration per battery
charge up to
Sound power level L
WA
Dirt receptacle volume
Dimensions
Weight
Subject to technical modifications!
Disposing of old device and battery
 Remove the cleaning robot's battery, see the
Chapter "Removing the battery from the battery
compartment".
 Remove the battery and dispose of it according to
environmental recommendations (at a special col-
lecting point or dealer).
 Dispose the old device in an environmentally
friendly manner.
DANGER
Do not open the battery, as there is a risk of an elec-
trical shock; also, irritating or caustic vapors can es-
cape.
Do not expose the battery to direct sunlight, heat or
fire, there is a risk of explosion.
14.52 V
2.6 Ah
Li-Ion
3-4 h
24 W
120 min
71 dB(A)
0.35 l
ø 340 x mm
96
3.6 kg
pack
– 11
EN 19
