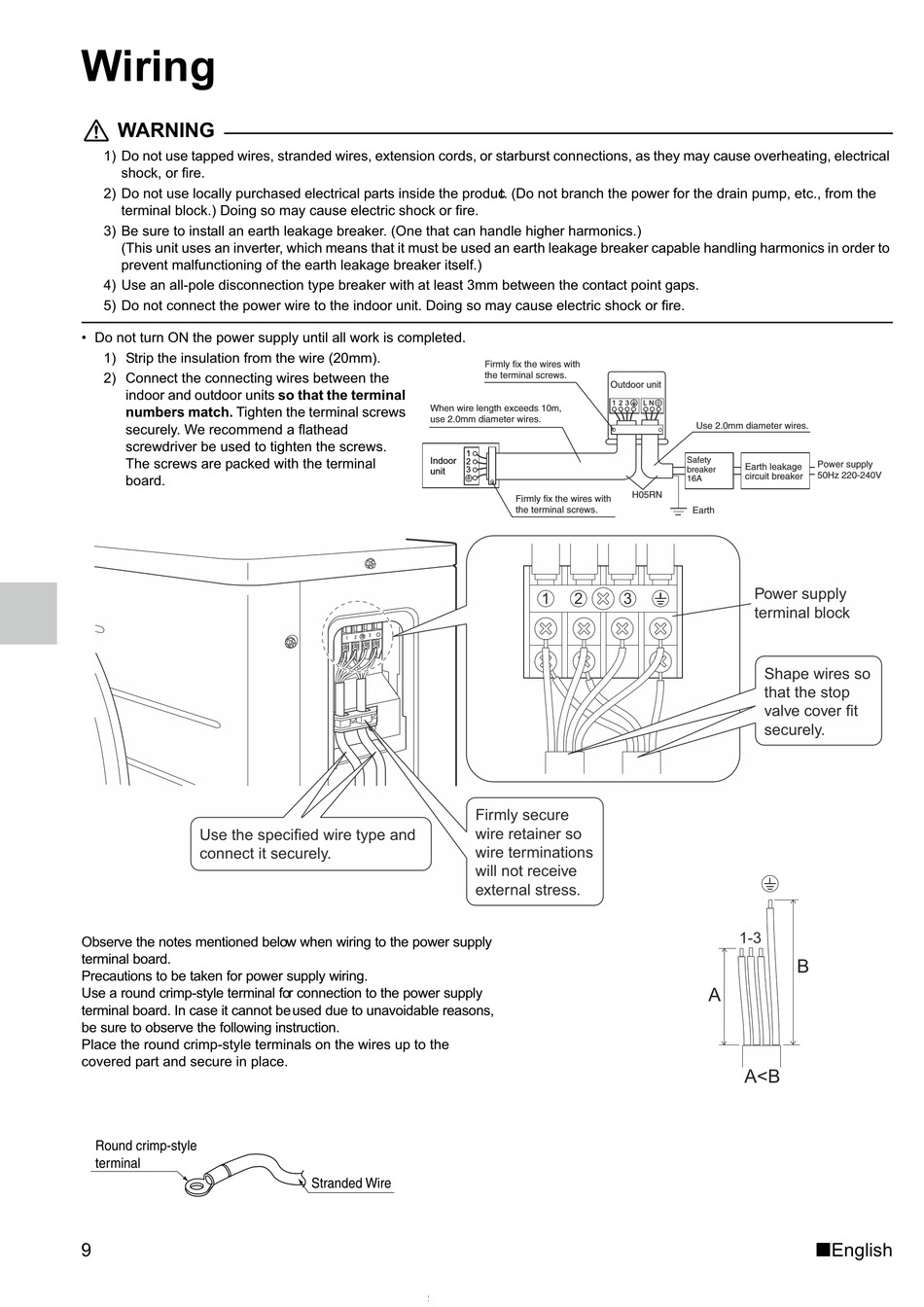

Wiring
WARNING
1) Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical
shock, or fire.
2) Do not use locally purchased electrical parts inside the produc t. (Do not branch the power for the drain pump, etc., from the
terminal block.) Doing so may cause electric shock or fire.
3) Be sure to install an earth leakage breaker. (One that can handle higher harmonics.)
(This unit uses an inverter, which means that it must be used an earth leakage breaker capable handling harmonics in order to
prevent malfunctioning of the earth leakage breaker itself.)
4) Use an all-pole disconnection type breaker with at least 3mm between the contact point gaps.
5) Do not connect the power wire to the indoor unit. Doing so may cause electric shock or fire.
• Do not turn ON the power supply until all work is completed.
1) Strip the insulation from the wire (20mm).
2) Connect the connecting wires between the
indoor and outdoor units so that the terminal
numbers match. Tighten the terminal screws
securely. We recommend a flathead
screwdriver be used to tighten the screws.
The screws are packed with the terminal
board.
Use the specified wire type and
connect it securely.
Observe the notes mentioned below when wiring to the power supply
terminal board.
Precautions to be taken for power supply wiring.
Use a round crimp-style terminal for connection to the power supply
terminal board. In case it cannot be used due to unavoidable reasons,
be sure to observe the following instruction.
Place the round crimp-style terminals on the wires up to the
covered part and secure in place.
Round crimp-style
terminal
9
Firmly fix the wires with
the terminal screws.
When wire length exceeds 10m,
use 2.0mm diameter wires.
1
Indoor
2
3
unit
3
2
1
Firmly secure
wire retainer so
wire terminations
will not receive
external stress.
Stranded Wire
Outdoor unit
1 2 3 L N
Safety
breaker
16A
H05RN
Firmly fix the wires with
the terminal screws.
1 2 3
Use 2.0mm diameter wires.
Power supply
Earth leakage
50Hz 220-240V
circuit breaker
Earth
Power supply
terminal block
Shape wires so
that the stop
valve cover fit
securely.
1-3
B
A
A<B
