Programming:
A. Pairing
Modules provided in the same kit have been paired at the factory, but up to 5 transmitters can be registered for each receiver.
To start this process, first activate the pairing procedure on the receiver (RX), then on the transmitter (TX).
To activate pairing, hold down the programming button on the module (RX or TX) for more than 2 seconds.
Start with the RX, then the TX.
After pressing twice, if pairing is successful, the receiver will emit 2 beeps, its LED R flashes twice and the transmitter LED flashes
rapidly 3 times.
The pairing procedure will link transmitter input 1 to receiver relay 1 and transmitter input 2 to receiver relay 2.
If necessary, take a second TX and press for 2 seconds to pair it with the same RX already in pairing mode.
To put a transmitter (TX) into sleep mode (no radio transmission), its memory needs to be cleared (see clearing the memory).

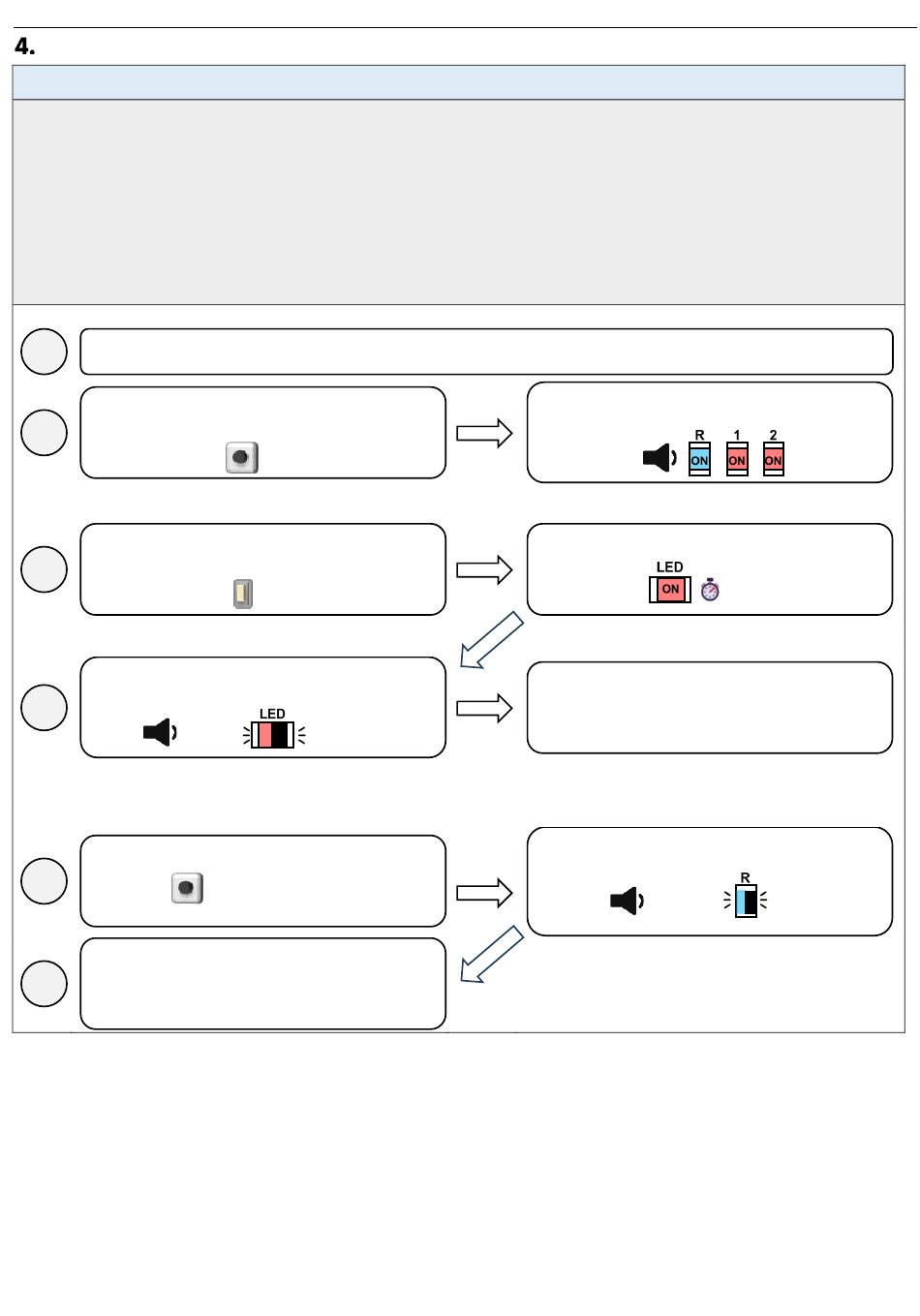

Activating pairing on the receiver (RX)
1
Press the PROG.RX button for more than 2
2
Activating pairing on transmitter (TX)
Press the PROG.TX button for more than 2
3
Validating pairing:
The receiver emits 2 beeps and the transmitter
4
x 2
If there is no response, start again at step .
� � �
Exiting pairing mode on the receiver (RX)
Press the PROG.RX button.
☛
7
8 The RX module is no longer in pairing mode.
868Mhz radio bridge
Check that the DIP4 frequency channel setting is identical on the RX and TX modules.
seconds.
☛
⏱>2 s
seconds.
☛
⏱>2 s
LED flashes twice.
x 2
⏱>1 s
or wait 60 s.
and LEDs R, 1 and 2 will be continuously lit.
The transmitter LED will light up for 2 seconds.
The receiver will emit 1 beep and LED R will flash
13
ISTCO7SG-KIT_EU_1224
The receiver will emit 1 beep
x2s
Pairing is confirmed.
once.
x 1
x 1
