TCO7SG-KIT

USERGUIDE

Presentation
The TCO7SG-KIT radio bridge system for gates and sliding doors is composed of two factory-paired components - a
transmitter (TX) and a receiver (RX).
The transmitter (TX) accepts two dry or 8K2 contact inputs. The function of the transmitter (TX) is to communicate the status of
its inputs to the receiver (RX). The receiver (RX) provides two dry or 8K2 contact outputs. The function of the receiver (RX) s to
take the status of the safety devices that are wired to the TX transmitter (TX) and communicate them to a control unit via its
safety inputs.
Depending on the statuses of the safety devices connected to the TX, this system can therefore activate control unit safety
measures, via an 868 MHz radio frequency channel*.

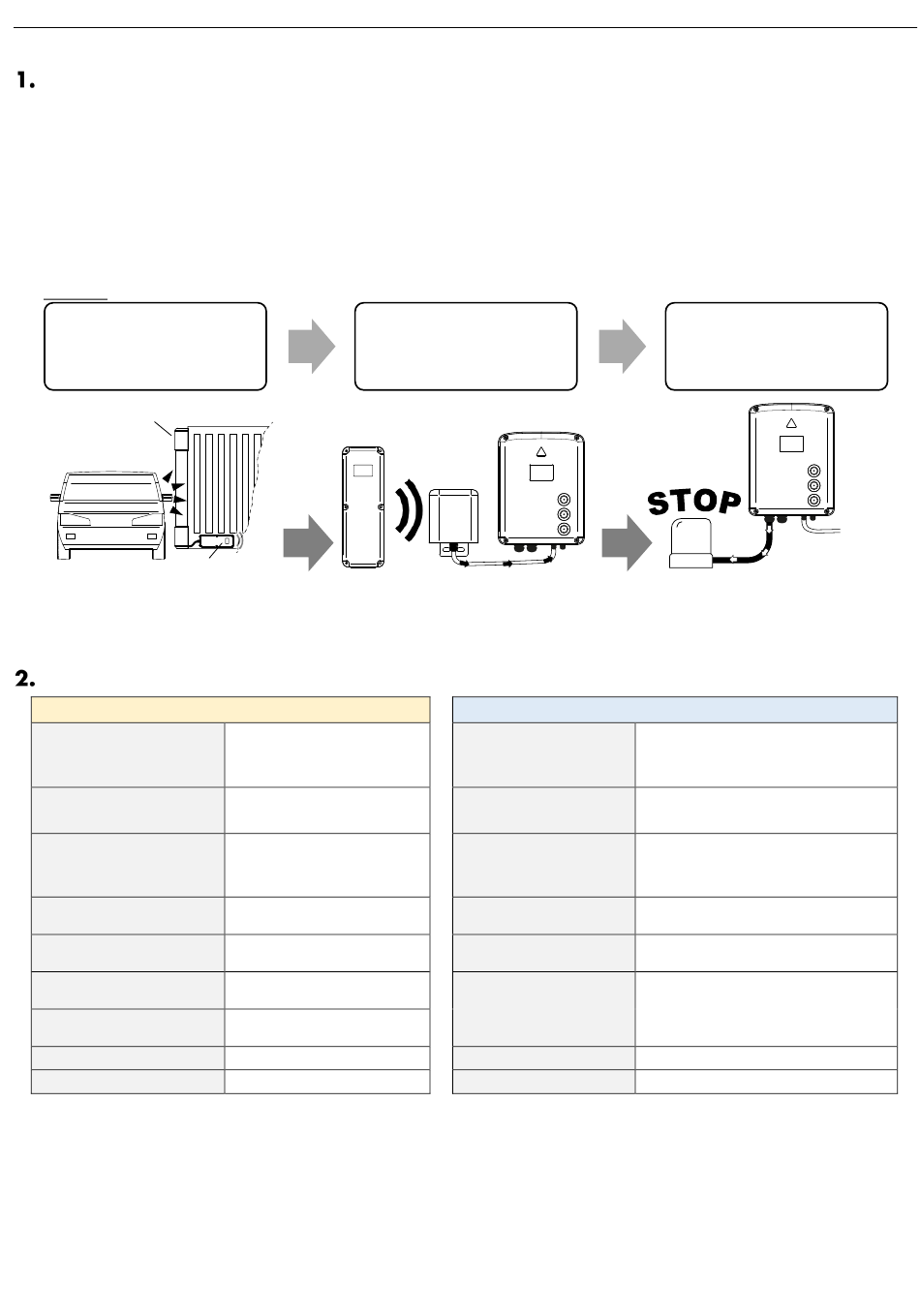

Example:
An obstacle is detected by a
sensor connected to the TX.
Sensor
Obstacle
TX
For added safety, signals are transmitted in both directions and the system incorporates a self-test function for each of its
relays.
*
If there is any interference, you can change the frequency (2 options available).
If the receiver (RX) is installed inside a metal enclosure, you will need to fit an external antenna.


Technical data:

Receiver (RX) - TCO7SG-RX
Supply voltage
Average consumption
Reception frequency
Memory
Number of outputs
Type of outputs
Contact capacity
Operating temperature
Size and weight
868Mhz radio bridge
The TX informs the RX
connected to the control
TX
12-24 V
AC/DC
MAX 28 V / 36 V DC
AC
On 90 mA, Off 50 mA
Frequency 1: 869.0 MHz
Frequency 2: 868.3 MHz
5 TX modules
2
Dry contact or 8K2
0.5 A max @ 24 V AC/DC
-20 °C / +55 °C
80x73x30mm,56g, IP55
unit.
UNIT
RX
Transmitter (TX) – TCO7SG-TX
Battery powered
Power consumption
Transmission frequency
Range
Number of inputs
Type of inputs
Operating temperature
Size and weight
10
ISTCO7SG-KIT_EU_1224
The control unit stops the
motor.
MOTOR
2 x AA (1.5 V) alkaline **
For transmitting: 12 mA, Standby: 5
µA
Frequency 1: 869.0 MHz
Frequency 2: 868.3 MHz
Up to 100 m***
2
Dry contact or 8K2
-20 °C / +55 °C
160x55x26 mm, 173 g, IP66
**
TX module battery life ≈ 4-5 years.
*** In optimum conditions
