Always make sure that no liquid can get into the device!
Only use the "EASYControl" in professional use if you are familiar with the functions and are familiar with the
operation. Only let other people work with the device if you are sure that they are also familiar with the functions. In
most cases, malfunctions are the result of a previous incorrect operation.
If damage occurs as a result of non-observance of the intended use and the instructions contained in this manual,
the guarantee will expire and the result may be a short circuit, fire or electric shock as well as the device falling.
Under no circumstances should you open the housing of the device or adapter. Unauthorized changes to the
device are prohibited for security reasons.
The manufacturer is not liable for damage caused by improper installation and inadequate securing!
Part 2: Functions & Operation:
2.1 Overview of buttons and controls:

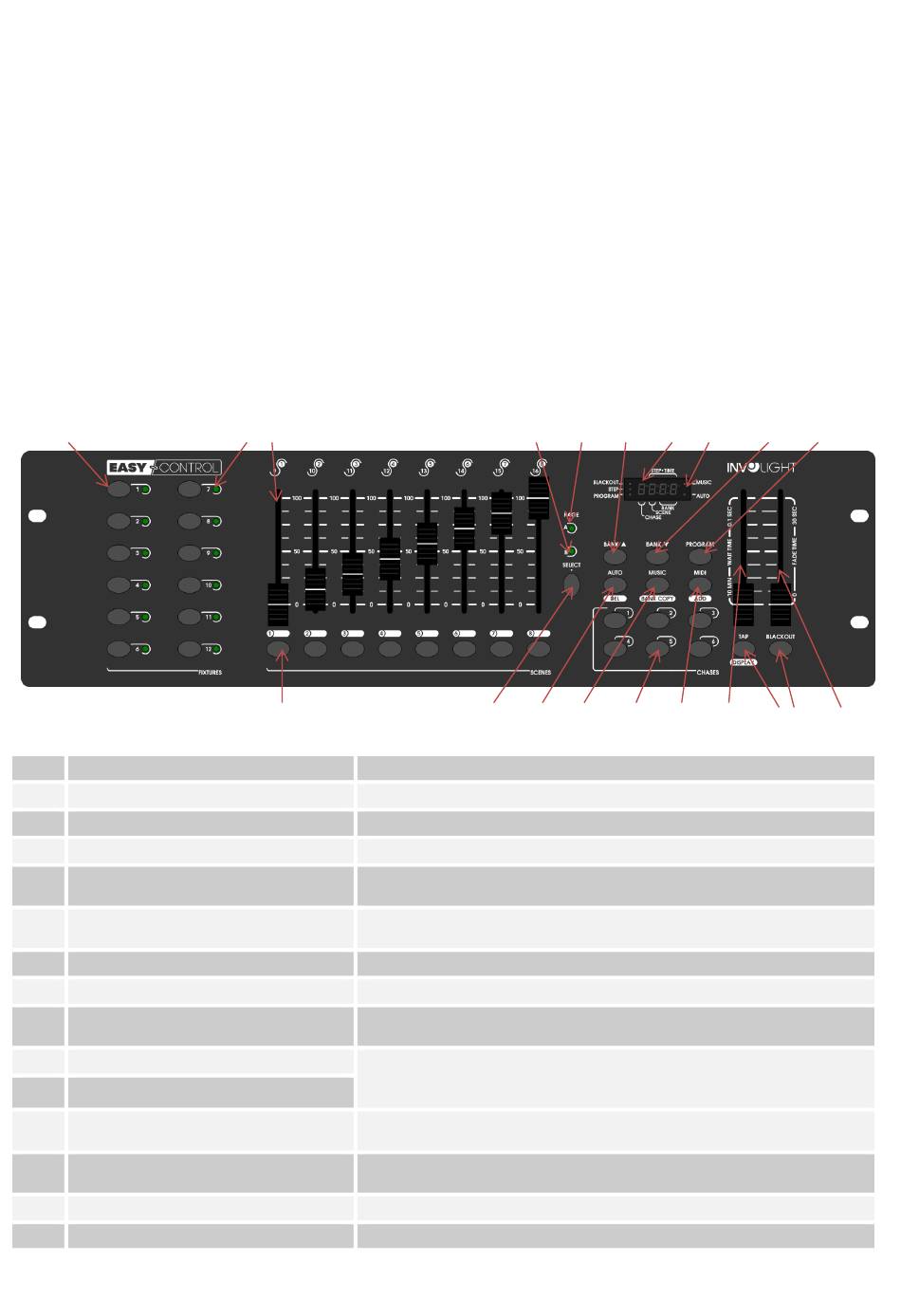

Illustration 1.
Controller surface:
1.
Pos. Controls
1 Button group / FIXTURES /
2 The control LEDs
3 Key group / SCENES /
4 Slider
5 / PROGRAM / button
6 / MUSIC BANK / COPY / button
7 LCD display
8 Control LEDs / MUSIC /, / MANUAL
/ and / AUTO /
/ BANK ▲ / button
9
/ BANK ▼ / button
10
11 / TAPSYNC / DISPLAY / button
12 / BLACKOUT / button
13 / MIDI / ADD / button
14 / AUTO / DEL / button
2. 4.
3.
Keys 1-12 for selecting and deselecting devices.
Show which devices are selected.
Buttons 1-8 for switching lighting scenes on and off.
Setting the DMX values for the selected devices. The current DMX
value is shown on the display.
Switching the programming mode on and off. The control LED
flashes when the function is activated.
Activate music control and copy an entire memory bank.
Show the selected mode when lighting scenes of a memory bank
or a chaser sequence are running.
Switch between memory banks 1-23 and for programming
functions.
Switch the display between percentage and decimal value to set
the fade time between two
Scenes during the time- or music-controlled sequence of lighting
scenes from a memory bank or a running light
sequence and for programming functions.
Switches all control channels to zero. The LED lights up in this
