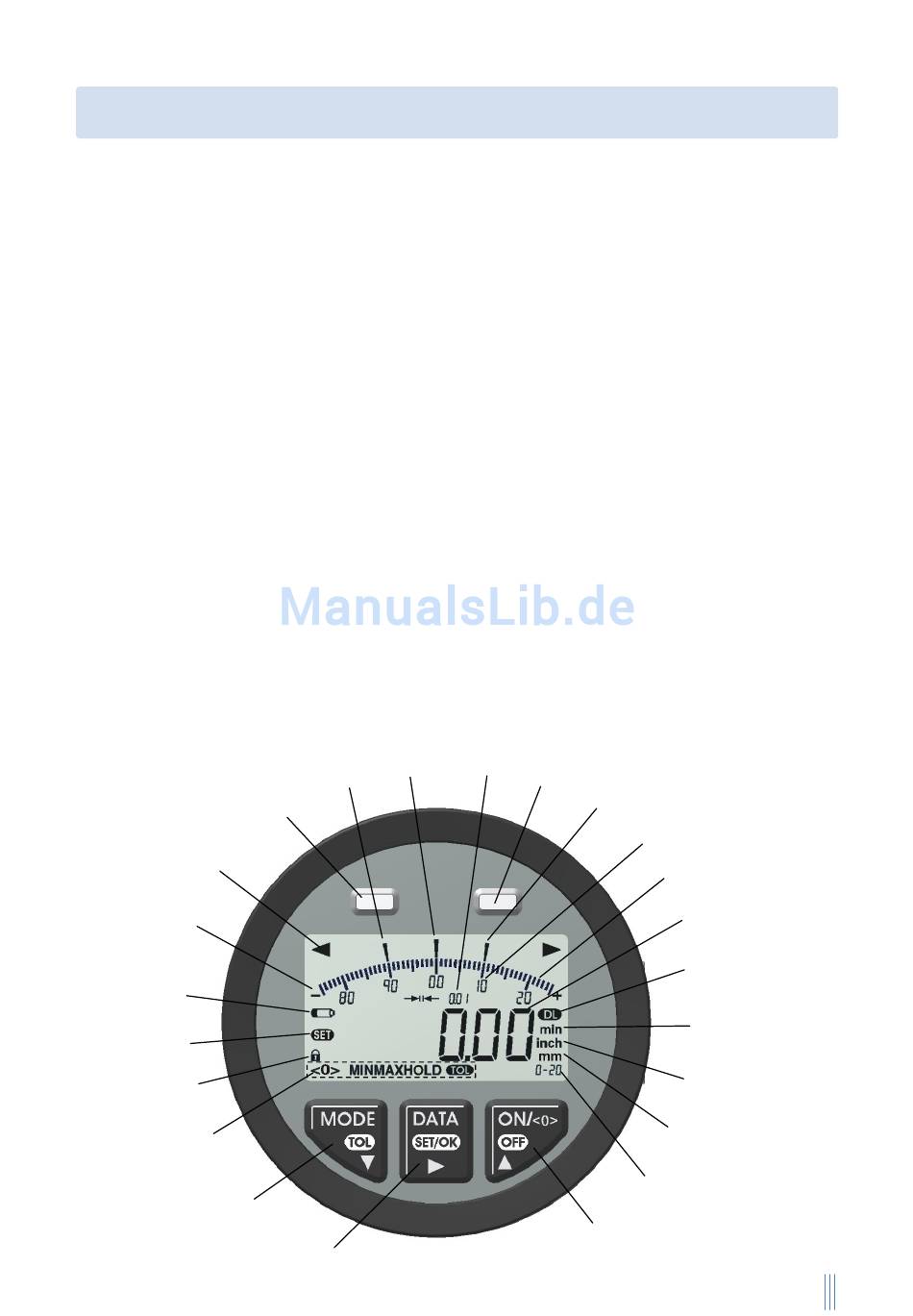

LCD – Display
1 Numerical Display
2 Display inscription
3 Analog display
4 Measuring programs (footer):
4.1 <0> – Relative mode is activated: 0-Preset with calibration gage
4.2 MIN – program is activated: Determination of the minimum
4.3 MAX – program is activated: Determination of the maximum
4.4 HOLD – program is activated: Determination of the measuring result in
measuring position
4.5 TOL – program is activated: Activating the tolerance marks and LED's (red/green)
5 Pointer
6 Scale interval
7 Measuring range / SETUP-Menu
8 Tolerance direction
9 +/- display for comparison measurement
10 Key MODE – TOL
11 Key DATA – SET/OK
12 Key ON/<0> – OFF
13 LED red (tolerance limit)
14 LED green (tolerance limit)
15 LOW BATT activated
16 Data Logger activated
17 Key lock activated
18 mm – measuring value in millimeter
19 inch – measuring value INCH
20 min – AUTO-POWER-OFF in minutes
21 Setup – Menu active
22 Tolerance marks
14
8
9
15
21
17
4
4.1-4.5
(footer)
10
5
22
11
6
13
22
2
7
12
3
1
16
20
19
18
