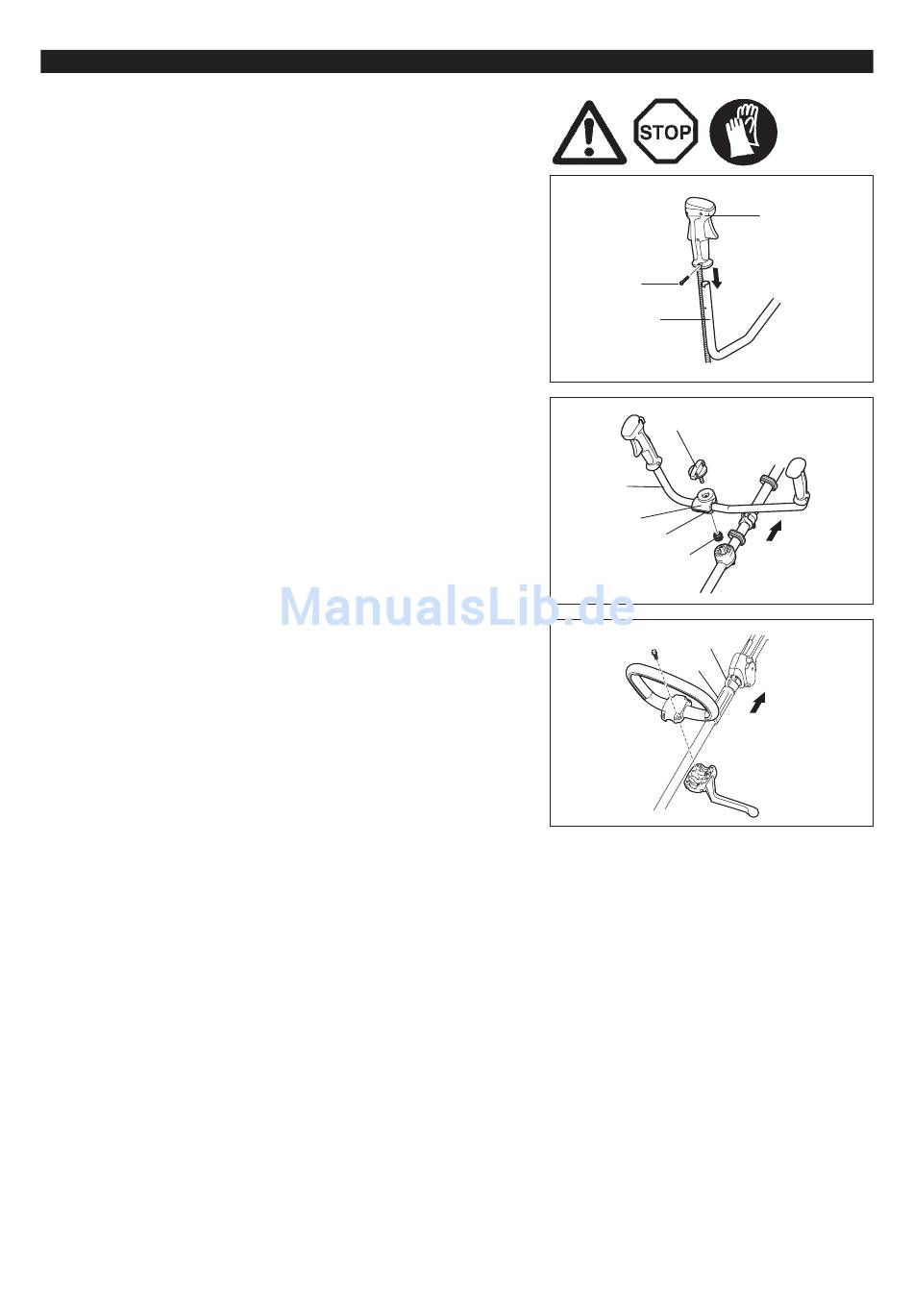

MOUNTING OF HANDLE

CAUTION: Before doing any work on the equipment, always stop the engine
and pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION: Start the engine only after having assembled it completely.
For model MS-4300.4 U, MS-430.4 U
Insert the shaft of the handle into the grip as shown.
Align the screw hole in the grip with the one in the shaft.
Tighten the screw securely.
– Loosen knob (1).
– Place handle (4) between handle clamp (2) and handle holder (3).
– Adjust handle (4) to an angle that provides a comfortable working position
and then secure by firmly hand-tightening knob (1).
CAUTION: Do not forget to mount spring (5).
For model MS-430.4 C
– Fix the loop handle on the shaft with four screws.
– To keep a proper distance between the grips, place the spacer (1) between
the loop handle and the hanger (2).
Screw
Handle
(4)
(2)
9
Grip
(1)
Engine
(3)
(5)
(2)
(1)
Engine
