Smart-RTC+
3

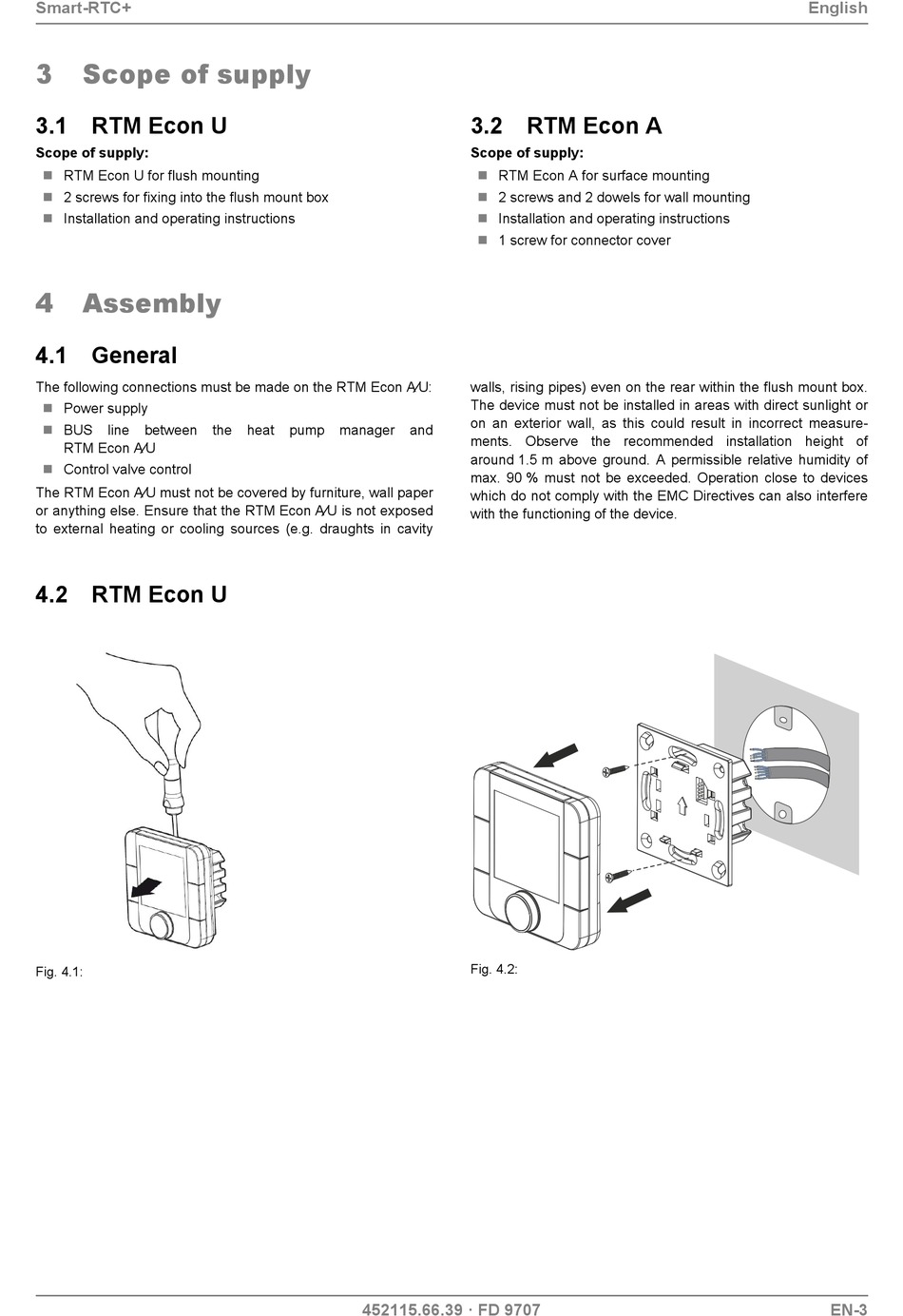

Scope of supply

3.1 RTM Econ U

Scope of supply:
 RTM Econ U for flush mounting
 2 screws for fixing into the flush mount box
 Installation and operating instructions
4

Assembly

4.1 General

The following connections must be made on the RTM Econ A⁄U:
 Power supply
 BUS line between
RTM Econ A⁄U
 Control valve control
The RTM Econ A⁄U must not be covered by furniture, wall paper
or anything else. Ensure that the RTM Econ A⁄U is not exposed
to external heating or cooling sources (e.g. draughts in cavity
4.2 RTM Econ U
Fig. 4.1:
the heat pump manager
452115.66.39 · FD 9707

3.2 RTM Econ A

Scope of supply:
 RTM Econ A for surface mounting
 2 screws and 2 dowels for wall mounting
 Installation and operating instructions
 1 screw for connector cover
walls, rising pipes) even on the rear within the flush mount box.
The device must not be installed in areas with direct sunlight or
on an exterior wall, as this could result in incorrect measure-
and
ments. Observe the recommended installation height of
around 1.5 m above ground. A permissible relative humidity of
max. 90 % must not be exceeded. Operation close to devices
which do not comply with the EMC Directives can also interfere
with the functioning of the device.
Fig. 4.2:
English
EN-3
