Exploding Draw; Part List - Homcom B1-9904 Montageanleitung

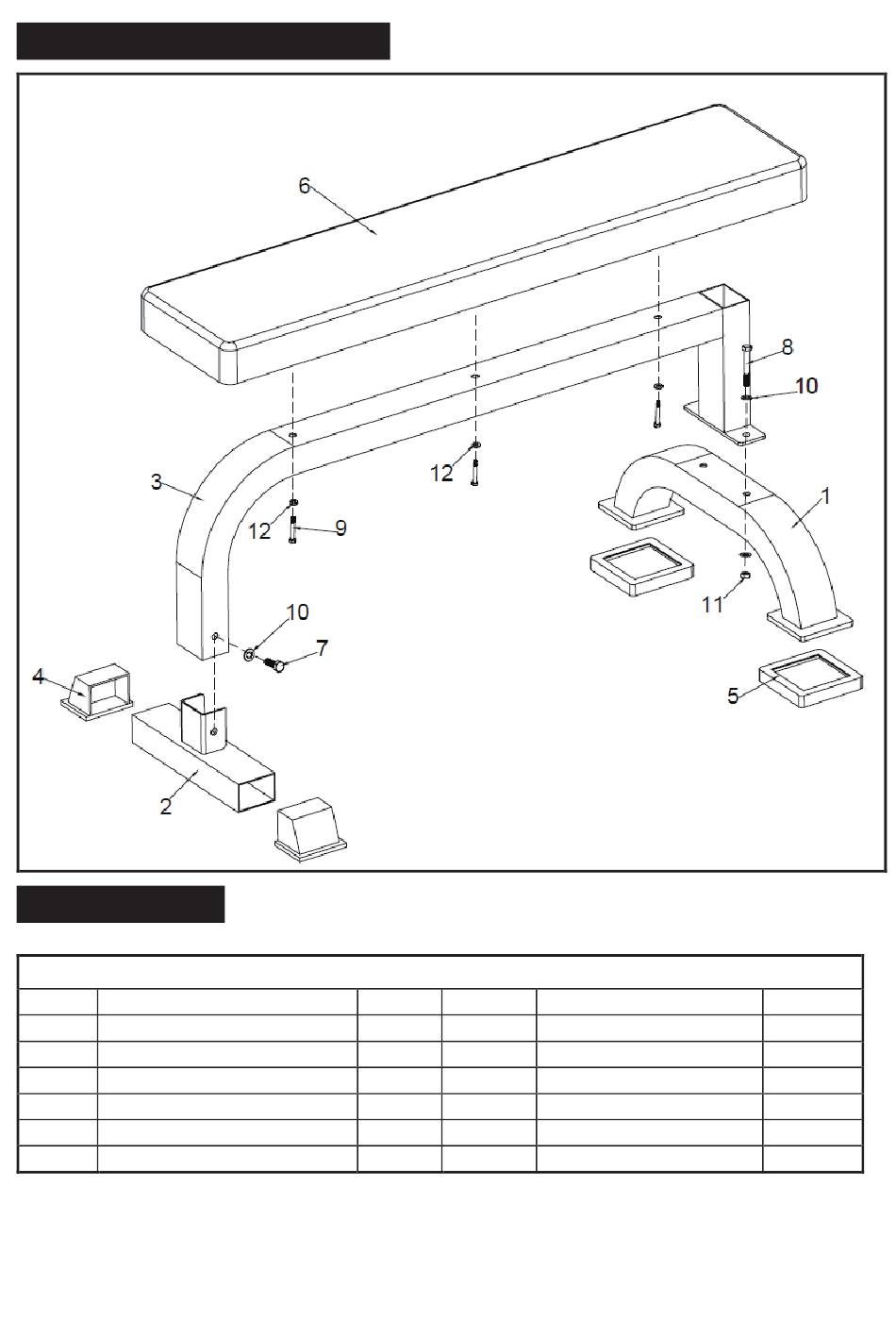

EXPLODING DRAW

PART LIST

NO. DESCRIPTION
1. Front Base Tube
2. Back Base Tube
3. Main Frame
4. □70*50 Foot Cover
5. Foot Rubber
6. Cushion
PART LIST
QTY NO.
1 7.
1 8.
1 9.
2 10.
2 11.
1 12.
DESCRIPTION
M10*20 Hex Bolt
M10*70 Hex Bolt
M8*70 Hex Bolt
M10 Washer
M10 Nylon Nut
M8 Washer
QTY
2
2
3
6
2
3
