Mount LED light:
WARNING!
!
Only use the light on the rollator. The LED light is used to make the rollator more visible to other
road users, but only to a limited extent to brighten up the area.
Attach the LED light to any aluminum tube of the rollator handles (B). Make sure that the
7
light can be seen by oncoming traffic or pedestrians. Pull the long side of the rubber band (C) far
enough so that it can be stretched around the aluminum tube (B) and hooked into the hook (E)
provided on the short side of the rubber band (D).
4
B
C
E
D
6

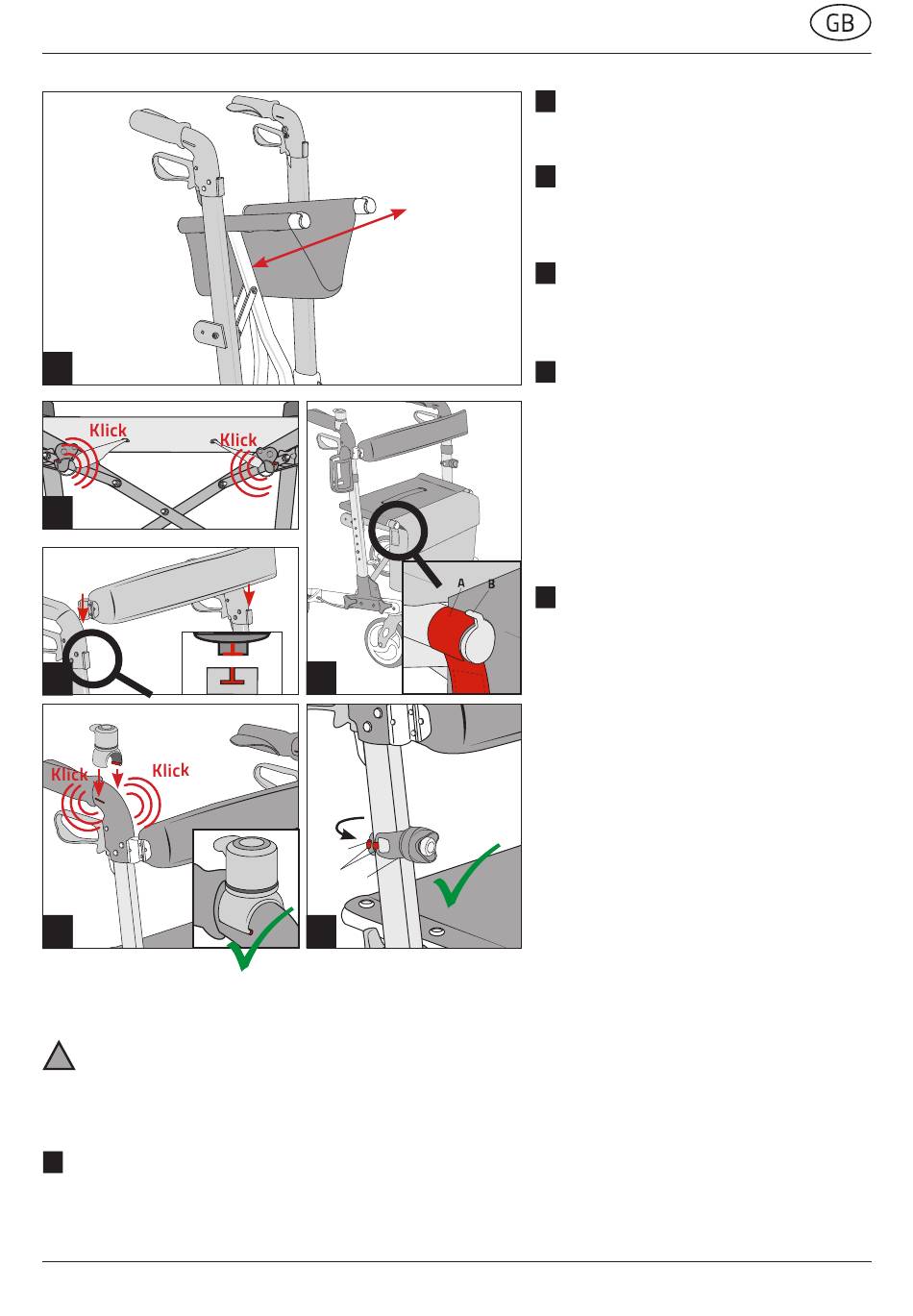

Commissioning
unfold the rollator as wide as
1
possible.
The holders under the seat must
2
snap into the small struts on the
frame.
Now push the back strap from
3
above onto the device on the handles
until they are at the stop.
yelets (A) are attached to the right
E
4
and left of the bag. Put the eyelets of
the bag (A) on the left and right over
the side tubes of the seat and then
hook the loop into the barbs (B) atta-
ched to the tube to prevent the bag
from slipping out.
Mount bell:
Attach the bell to one of the
5
handles depending on whether you
are right or left handed. There are
depressions (A) on the left and right
of both handles, into which the bell
frame must engage. These ensure a
secure hold of the bell on the handle.
Mount the bell so that you can press
the bell with your thumb.
