4.0 Description

The machine should be used for suction and separation of dried
dust. The machine fulfil the demands for separation of unhealthy dust.
The COMPACTCLEAN is, despite it's compact size, a full
capacity machine. It is stable, tough and reliable and particularly
suited to spot extraction in many different applications: welding,
grinding, sanding and cleanup with the 38 mm program. Dust
separation is in any case as efficient as with the larger machines.
The design is ergonomic and appealing. With a very low sound
level of 70 dB(A) at 1m distance, the COMPACTCLEAN is
suitable for use in areas which are sensitive to noise. The direct
drive two stage high pressure fan is integrated into the units top.
The 1200 W capacity fan is double insulated for higher safety.

5.0 Operation

Autostart: Connect the subject electric tool to the electrical out-
let on unit. Set the selector switch to the AUTO position. The unit
will start automatically when the subject tool is started.
For manual start of the unit, set the selector switch to the MAN
position. The Compactclean is equipped with a filter indication
lamp that indicates when the filter needs cleaning or changing.
The filter is generally cleaned once or twice daily during normal
continuous operation. Connect only devices to a maximum of
1200W. Otherwise damage to electronics.

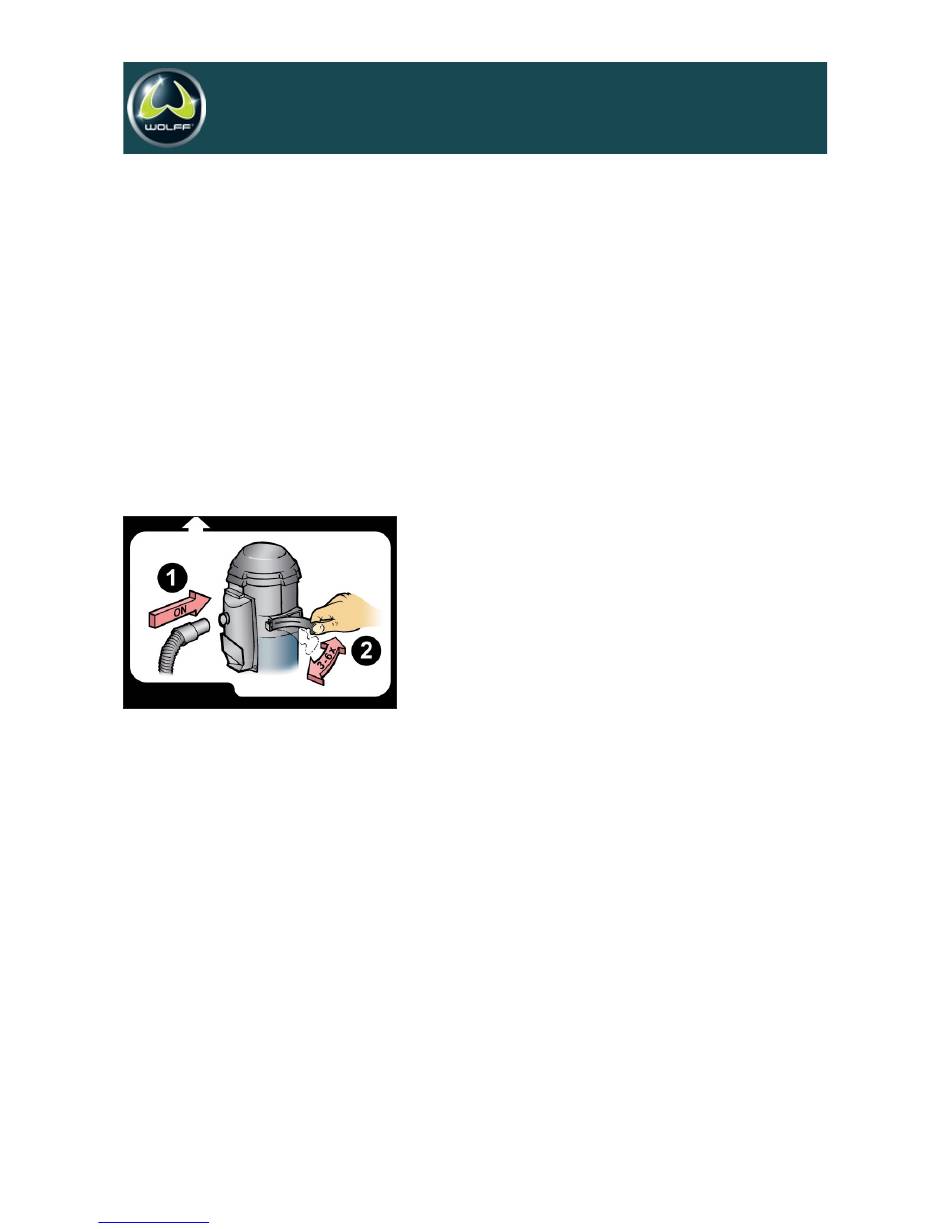

The unit must be in operation to perform filter cleaning. Loose
the tube from the suction pipe and press the plastic cage against
the black stop head on the exhaust channel so that maximum
pressure is created in the cyclone. Open the port on the side o
the unit three to six times. This reverse pulse of air cleans the
filter. The machine can be used both with or without collection
sack. The collection sack should only be changed after the cle-
aning of the filters. The collection sack must be tied off when it
is removed from the container. Use only original spare parts.
There should not be any fold on the container border. The tight-
ness make that the sac does not being sucked. When remoun-
ting the motor top and the cyclone on the container the hose
inlet should be pointed according to the picture beside.
For best result: -Secure that no air is between the bag and the
barrel when you apply the bag. -Secure that no air is leaking bet-
ween the bag and the barrel when you are using the machine.

6.0 Service

During cleaning and service of the unit, the unit should be
disconnected from the power supply. The fine filter should be
changed at least once per year.
Use only original parts for replacement. If the unit is equipped
with a HEPA filter, this filter should be changed every 300
working hours.
