RP-307H

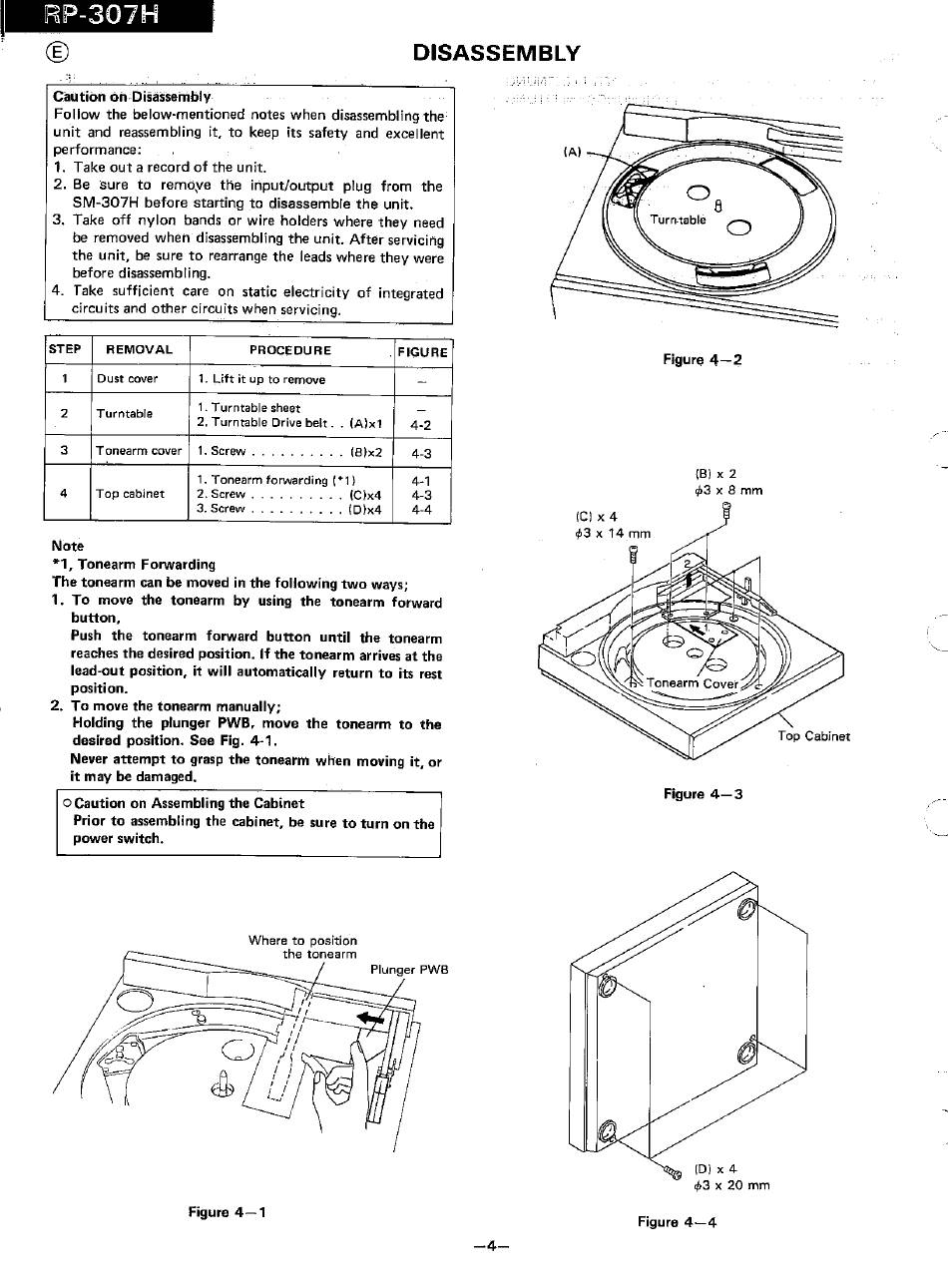

Caution on-Disassembly-
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep its safety and excellent
pe rformance :
1. Take out a record of the unit.
2. Be sure to remoye the input/output
SM-307H before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leadswhere they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
STEP REMOVAL
Dust cover . Lift
. Turntable
2 Turntable
2. Turntable
3 Tonearm cover
. Screw
1. Tonearm forwarding
4 Top cabinet 2. Screw
3. Screw
Note
*1, Tonearm Forwarding
The tonearm can be moved in the following two ways;
1. To move the tonearm
button,
Push the tonearm forward
reaches the desired position. If the tonearm arrives at the
lead-out position, it will automatically
position.
2. To move the tonearm manually;
Holding the plunger PWB, move the tonearm
desired position. See Fig. 4-1.
Never attempt to grasp the tonearm when moving it, or
it may be damaged.
o Caution on Assembling
Prior to assembling the cabinet, be sure to turn on the
power switch.
Figure 4— 1
plug from the
PR OCEDURE
FIGURE
it up to remove
sheet
Drive belt . (A)xl
. . (B)x2
(
.
(C)x4
. . (o)x4
by using the tonearm forward
button until the tonearm
return to its rest
to the
the Cabinet
Where to position
the tonearm
Plunger
DISASSEMBLY
4-2
4-3
4-1
4-3
4-4
43 X
PWB
8
Turn. table
Figure
+3 x 8 mm
14 mm
Tonearm Cover
Top Cabinet
Figure 4—3
+3 x 20 mm
Figure 4—4
