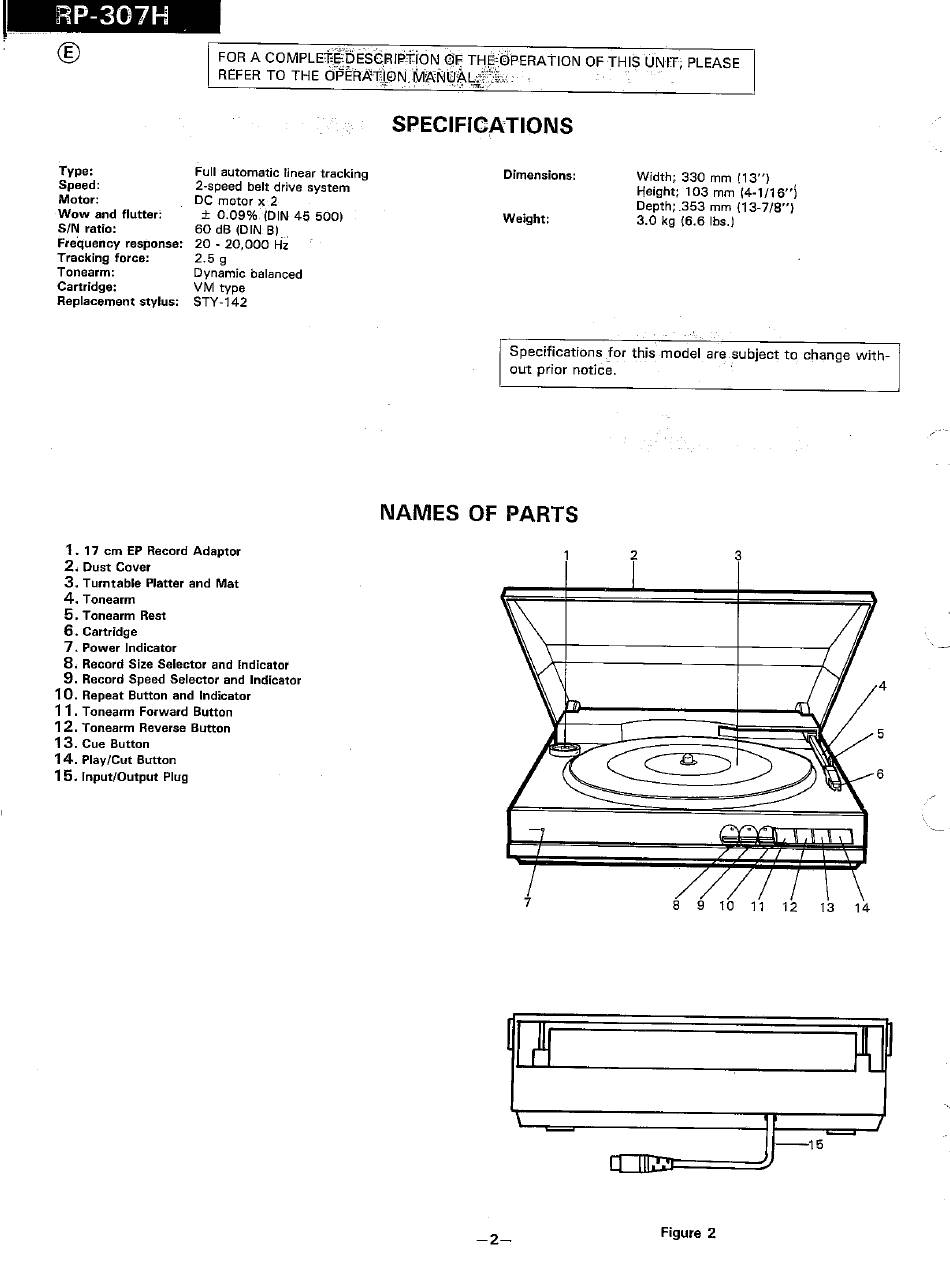

Sharp RP-307H Serviceanleitung Seite 2

RP-307H
FORA COMPLETEDESCRlP.tiON
REFERTO THE OFERÄTui@N.MÄNUéÄL•..
Type:
Full automatic linear tracking
Speed :
2-speed belt drive system
Motor:
DC motor
Wow and flutter:
± 0.09%
SIN ratio:
60 dB (DIN B)
Frequency response:
20 - 20,000
Tracking force: 2.5 g
Tonearm: Dynamic
Cartridge:
VM type
Replacement stylus: STY-142
l. 17 cm EP Record Adaptor
2.
Dust Cover
3. Tumtable Platter and Mat
4. Tonearm
5. Tonearm Rest
6. Cartridge
7.
Power Indicator
Record Size Selector and
9. Record Speed Selector
and Indicator
10.
Repeat Button and Indicator
1 1 . Tonearm Forward Button
12. Tonearm Reverse Button
13. Cue Button
14. Play/Cut Button
15. Input/Output Plug
SPECIFICATIONS
2
(DIN 45 500)
Hz
balanced
NAMES
Indicator
OFTHE.:OPERATION OFTHIS
Dimensions:
Weight:
Specifications for this model are subject to change with-
out prior notice.
OF PARTS
7
PLEASE
Width; 330 mm (13")
Height; 103 mm (4-1/16' t;
Depth; .353 mm (13-7/8")
3.0 kg (6.6 lbs.)
2 3
8 9
10 11
12
15
Figure 2
4
5
6
13 14
