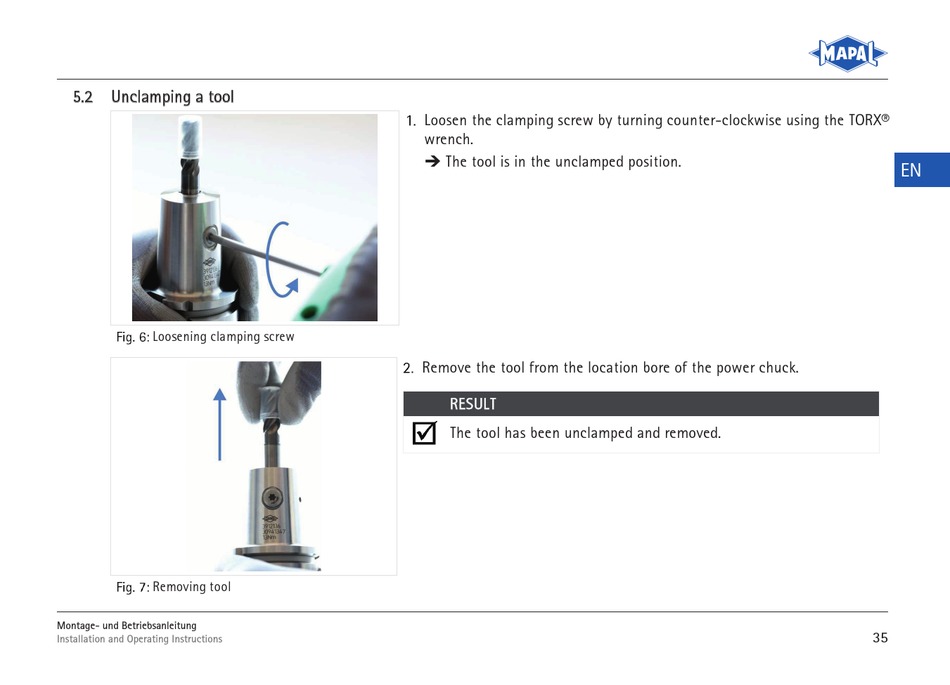

Mapal SYSTEM HB Installations- Und Betriebs-Anleitung Seite 35

5 5 . . 2 2 U U n n c c l l a a m m p p i i n n g g a a t t o o o o l l
Loosening clamping screw
Removing tool
Montage- und Betriebsanleitung
Montage- und Betriebsanleitung
Installation and Operating Instructions
Installation and Operating Instructions
Loosen the clamping screw by turning counter-clockwise using the TORX®
wrench.
 The tool is in the unclamped position.
Remove the tool from the location bore of the power chuck.
R R E E S S U U L L T T
The tool has been unclamped and removed.
