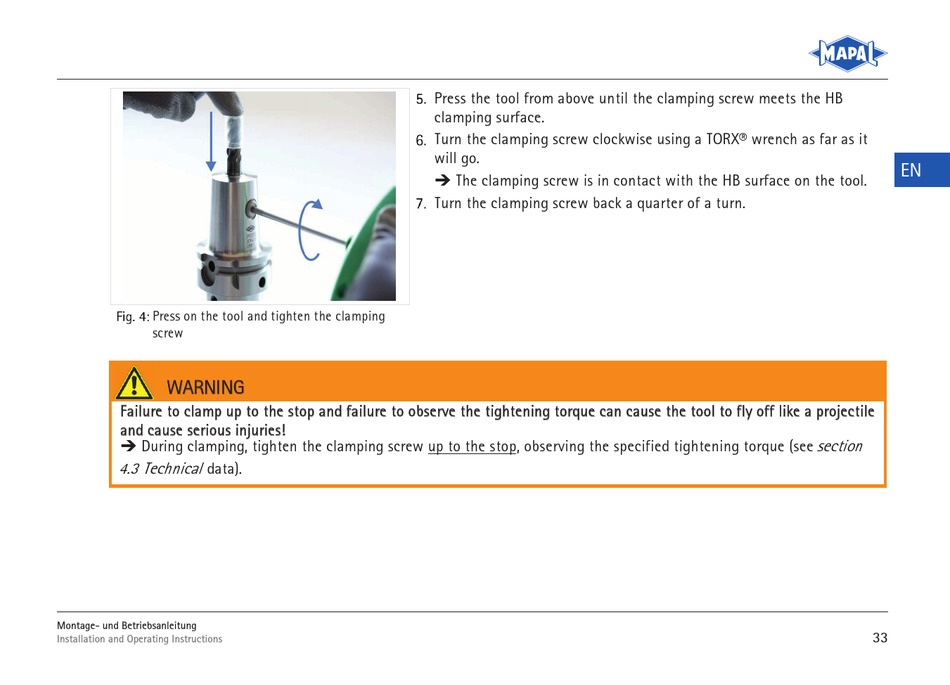

Press on the tool and tighten the clamping
screw
W W A A R R N N I I N N G G
F F a a i i l l u u r r e e t t o o c c l l a a m m p p u u p p t t o o t t h h e e s s t t o o p p a a n n d d f f a a i i l l u u r r e e t t o o o o b b s s e e r r v v e e t t h h e e t t i i g g h h t t e e n n i i n n g g t t o o r r q q u u e e c c a a n n c c a a u u s s e e t t h h e e t t o o o o l l t t o o f f l l y y o o f f f f l l i i k k e e a a p p r r o o j j e e c c t t i i l l e e
a a n n d d c c a a u u s s e e s s e e r r i i o o u u s s i i n n j j u u r r i i e e s s ! !
 During clamping, tighten the clamping screw up to the stop, observing the specified tightening torque (see
4.3 Technical
data).
Montage- und Betriebsanleitung
Montage- und Betriebsanleitung
Installation and Operating Instructions
Installation and Operating Instructions
Press the tool from above until the clamping screw meets the HB
clamping surface.
Turn the clamping screw clockwise using a TORX® wrench as far as it
will go.
 The clamping screw is in contact with the HB surface on the tool.
Turn the clamping screw back a quarter of a turn.
