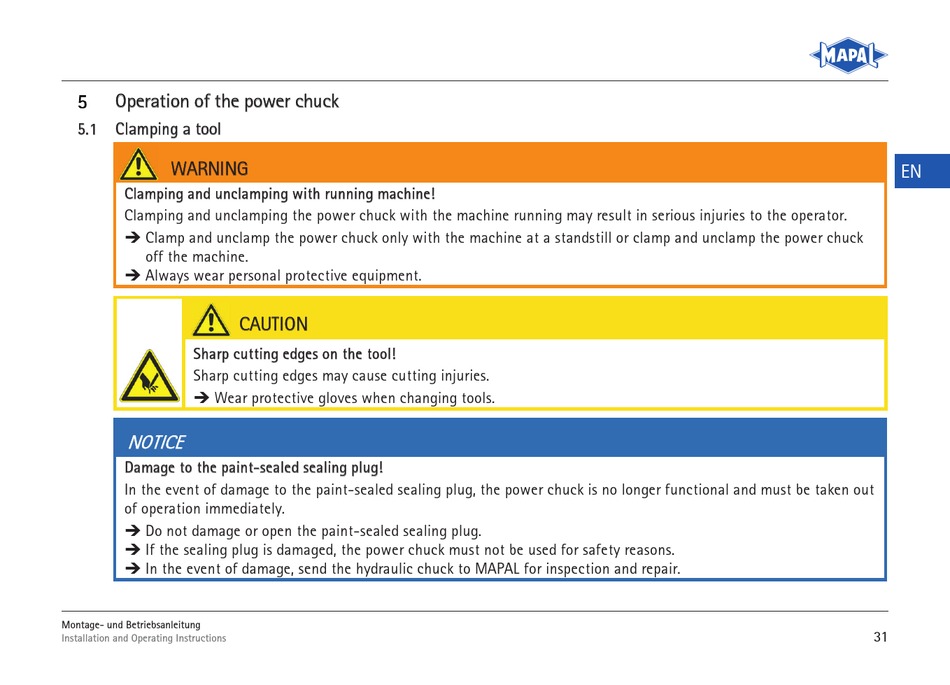

Mapal SYSTEM HB Installations- Und Betriebs-Anleitung Seite 31

O O p p e e r r a a t t i i o o n n o o f f t t h h e e p p o o w w e e r r c c h h u u c c k k
5 5 . . 1 1 C C l l a a m m p p i i n n g g a a t t o o o o l l
W W A A R R N N I I N N G G
C C l l a a m m p p i i n n g g a a n n d d u u n n c c l l a a m m p p i i n n g g w w i i t t h h r r u u n n n n i i n n g g m m a a c c h h i i n n e e ! !
Clamping and unclamping the power chuck with the machine running may result in serious injuries to the operator.
 Clamp and unclamp the power chuck only with the machine at a standstill or clamp and unclamp the power chuck
off the machine.
 Always wear personal protective equipment.
C C A A U U T T I I O O N N
S S h h a a r r p p c c u u t t t t i i n n g g e e d d g g e e s s o o n n t t h h e e t t o o o o l l ! !
Sharp cutting edges may cause cutting injuries.
 Wear protective gloves when changing tools.
N N O O T T I I C C E E
D D a a m m a a g g e e t t o o t t h h e e p p a a i i n n t t - - s s e e a a l l e e d d s s e e a a l l i i n n g g p p l l u u g g ! !
In the event of damage to the paint-sealed sealing plug, the power chuck is no longer functional and must be taken out
of operation immediately.
 Do not damage or open the paint-sealed sealing plug.
 If the sealing plug is damaged, the power chuck must not be used for safety reasons.
 In the event of damage, send the hydraulic chuck to MAPAL for inspection and repair.
