schmersal SLC 210 RF Montage- Und Verdrahtungshinweise Seite 53

Table 2
(Ref.
Page 11)
Table 2
(Ref.
Page 11)
In order to assure a correct light curtain / light grid operation, it is necessary to connect the
PINs 2 and 4 of the Emitter according to table 2 and to the "TEST FUNCTION" paragraph.

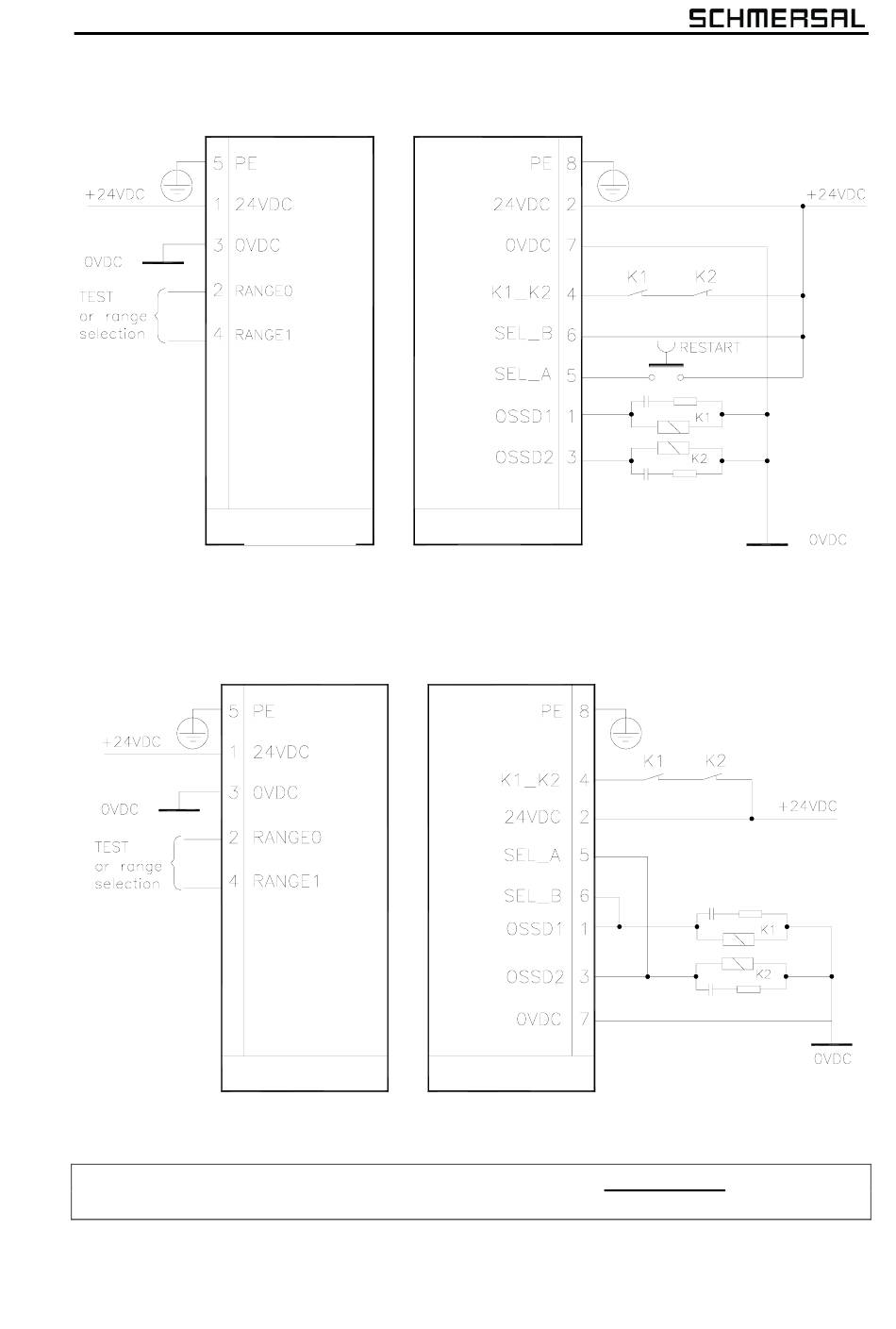

Example of connection in MANUAL mode
with external contactors K1-K2
EMITTER
Example of connection in AUTOMATIC mode
with external contactors K1-K2
EMITTER
RECEIVER
Figure 15
RECEIVER
Figure 16
17
