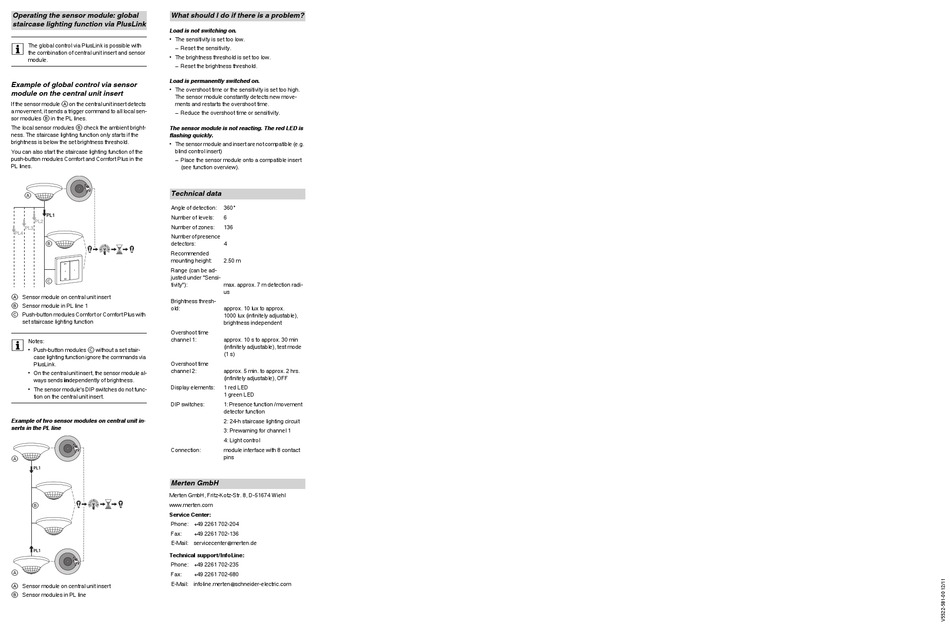

Operating the sensor module: global
What should I do if there is a problem?
staircase lighting function via PlusLink
Load is not switching on.
• The sensitivity is set too low.
The global control via PlusLink is possible with
|
– Reset the sensitivity.
the combination of central unit insert and sensor
• The brightness threshold is set too low.
module.
– Reset the brightness threshold.
Load is permanently switched on.
Example of global control via sensor
• The overshoot time or the sensitivity is set too high.
module on the central unit insert
The sensor module constantly detects new move-
If the sensor module A on the central unit insert detects
ments and restarts the overshoot time.
a movement, it sends a trigger command to all local sen-
– Reduce the overshoot time or sensitivity.
sor modules B in the PL lines.
The local sensor modules B check the ambient bright-
The sensor module is not reacting. The red LED is
ness. The staircase lighting function only starts if the
flashing quickly.
brightness is below the set brightness threshold.
• The sensor module and insert are not compatible (e.g.
You can also start the staircase lighting function of the
blind control insert)
push-button modules Comfort and Comfort Plus in the
– Place the sensor module onto a compatible insert
PL lines.
(see function overview).
Technical data
A
Angle of detection:
PL1
Number of levels:
PL2
Number of zones:
PL3
PL4
Number of presence
detectors:
B
Recommended
mounting height:
Range (can be ad-
justed under "Sensi-
C
tivity"):
A Sensor module on central unit insert
Brightness thresh-
B Sensor module in PL line 1
old:
C Push-button modules Comfort or Comfort Plus with
set staircase lighting function
Overshoot time
channel 1:
Notes:
|
• Push-button modules C without a set stair-
case lighting function ignore the commands via
Overshoot time
PlusLink.
channel 2:
• On the central unit insert, the sensor module al-
ways sends independently of brightness.
Display elements:
• The sensor module's DIP switches do not func-
tion on the central unit insert.
DIP switches:
Example of two sensor modules on central unit in-
serts in the PL line
Connection:
A
PL1
Merten GmbH
Merten GmbH, Fritz-Kotz-Str. 8, D-51674 Wiehl
www.merten.com
B
Service Center:
Phone: +49 2261 702-204
Fax:
E-Mail: servicecenter@merten.de
PL1
Technical support / InfoLine:
Phone: +49 2261 702-235
A
Fax:
E-Mail: infoline.merten@schneider-electric.com
A Sensor module on central unit insert
B Sensor modules in PL line
360°
6
136
4
2.50 m
max. approx. 7 m detection radi-
us
approx. 10 lux to approx.
1000 lux (infinitely adjustable),
brightness independent
approx. 10 s to approx. 30 min
(infinitely adjustable), test mode
(1 s)
approx. 5 min. to approx. 2 hrs.
(infinitely adjustable), OFF
1 red LED
1 green LED
1: Presence function / movement
detector function
2: 24-h staircase lighting circuit
3: Prewarning for channel 1
4: Light control
module interface with 8 contact
pins
+49 2261 702-136
+49 2261 702-680
