SIP 50000250 Handbuch Seite 14

4.1

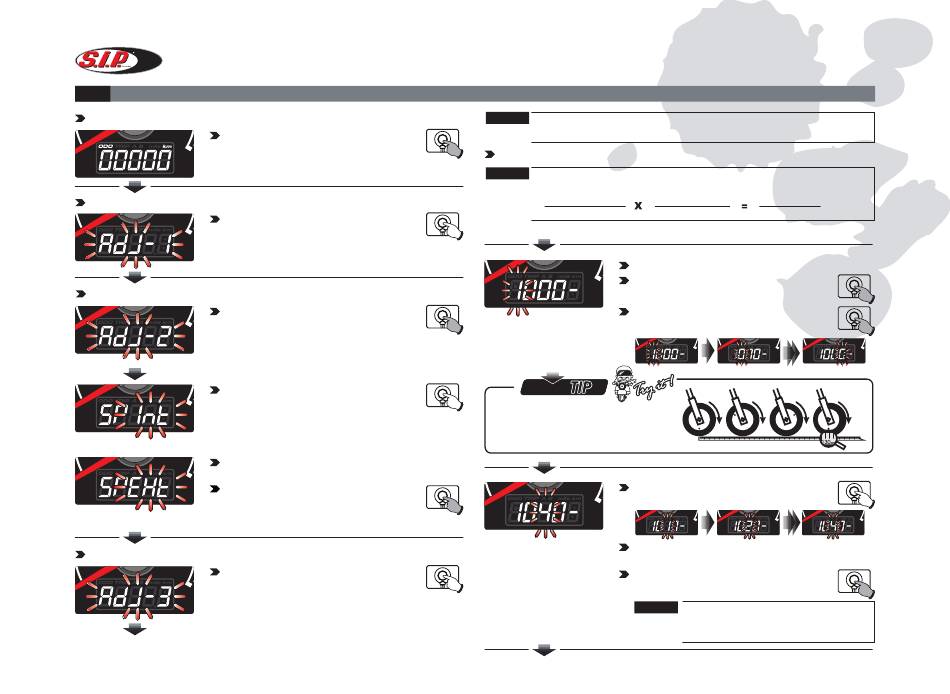

SPEED SENSOR FUNCTION SETTING INSTRUCTIONS
Main display
Hold the button down for 3 seconds to
switch from the main display to the
ADJ 1 menu (Measuring unit setting).
Measuring unit setting
Press the button once to enter the
ADJ 2 menu (Speed signal setting).
Speed signal setting
Hold the button down for 3 seconds to
enter the speed signal setting.
Press the button once to select the kind
of transmission you would like to use.
A: Int (Speedo cable).
B: EXt (SIP sensor No. 50000250/ 50000270).
A: Intern
Choose setting B (SP EXt) for the external SIP
sensor.
Hold the button down for 3 seconds to
return to the ADJ 2 menu (Speed signal
B: Extern
setting).
Tyre circumference setting
Press the button once to enter the
ADJ 3 menu (Tyre circumference
setting).
14-15
NOTE!
In contrast to the normal meter setting, we need to enter the final
result of a calculation.
E.g.: Your tyre circumference is 1,300 mm and the transmission ratio is 0,8.
NOTE! How to calculate the correct input value:
Actual tyre Transmission
circumference
(1,300 mm)
*Check section 4.2
The input value is 1,040 mm.
Hold the button down for 3 seconds to
enter the input value setting.
Hold the button down for 3 seconds to
move to the digit you want to set.
Simply define the valve as the starting
point and the terminal point to measure
the wheel circumference with a
measuring tape.
Press button once to choose the
setting number.
E.g.: The input value setting is changed from
1,000 mm to 1,040 mm.
Hold the button down for 3 seconds to
enter the sensor point setting.
NOTE!
ratio* Input value
(0,8) (1040)
1. Setting range: 300-2,500 mm
Setting unit: 1 mm
2. The default setting: 1,000 mm
