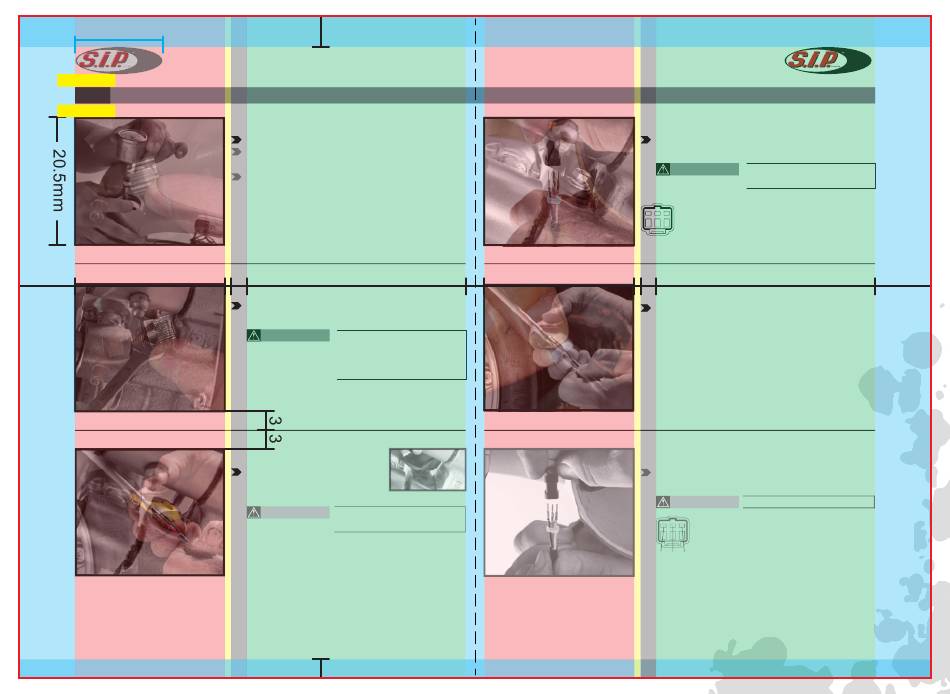

MOUNTING INSTRUCTION SPEED SENSOR
MOUNTING- AND SETTING INSTRUCTIONS SPEED SENSOR (PART NO. 50000270)
2mm
9 mm
24 mm
22-23
5mm
Step 1
Step 1
Unscrew the speedometer cable and remove
Release the headlights safety clip.
Undo the speedometer bolt and
from the speedo drive gear.
the nut for the speedometer cable.
Remove speedo.
2.5 mm
Step 2
Step 2
Remove the original speedometer
Place the speed sensor in the speedo drive
1 mm
35 mm
cable, rubber and fixing plate from
gear and lock nut.
the suspension arm.
CAUTION!
Connection speedometer drive
gear must have 2.7mm. In the
case of resistance, carefully
turn the wheel.
Step 3
Step 3
Place the included rubber
Attach the sensor to the old speedo cable
gasket and speed sensor
with sticky tape and pull it through the
into the suspension arm.
steering column.
CAUTION!
In the case of resistance,
carefully turn the wheel.
3mm
24 mm
3 mm
1 mm
Step 4
Step 4
Mount the speed sensor and the bolt,
Position the rubber gasket over the cable
safety washer and washer that are
connector followed by the cables.
included.
CAUTION!
Pay attention to wire colour
and order.
Cable colour:
1- black 2 - red 3 - white
1 2 3
2.5 mm
Step 5
Step 5
Attach the sensor to the old speedo
Push the gasket completely into the
35 mm
cable with sticky tape and pull it
connection.
through the steering column.
Step 6
Position the rubber gasket over the
cable connector followed by the cables.
CAUTION!
Note the wire color and order.
Cable colours:
1- black, 2 – red, 3 – white
1 2 3
9 mm
