Do not overload the power sockets. This constitutes a fire hazard! The sockets and the
connection cable will become warm when there is a high connected load.
– Pay attention to the maximum permitted total power consumption of all connected
loads in the "Technical Data" section.
– Do not connect any other socket strips or other power distribution devices to the
product.
The under-cabinet light is only fully isolated from the mains when the mains voltage has
been switched off!
7 Overview of product
4
1 Earthed contact sockets
2 USB ports

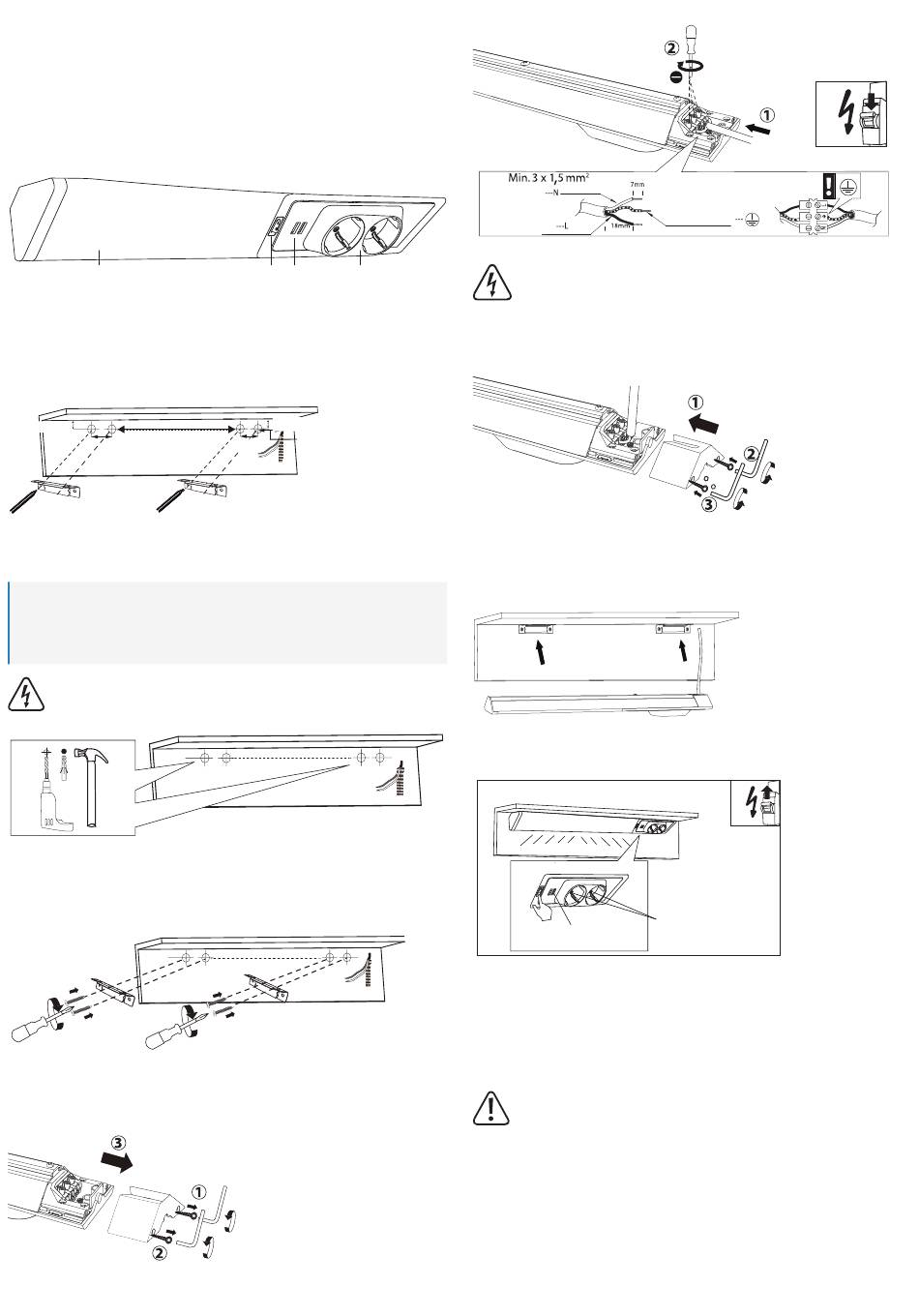

8 Connection and installation

Step 1 - Mark the installation positions:
1
≥8mm
530mm
78mm
Use the mounting brackets to mark the installation positions.
(If required) Step 2 - Insert dowels:
2
Important:
– Use special dowels (not included) for surfaces made of lightweight materials (plaster-
board, gypsum etc.).
– Dowels are not required for surfaces made of wood, wood-based materials or metal.
Ensure that no existing cables or pipes (including water pipes) are damaged
when drilling mounting holes or securing screws.
1. Drill holes for the dowels at the marked installation locations.
2. Insert the dowels into the material.
Step 3 - Secure the mounting brackets:
3
Secure the supplied mounting brackets to the mounting surface using the screws provided.
Step 4 - Remove cover:
4
Remove the rear cover.
3 2 1
3 On/off switch
4 Light cover
≥8mm
25-40mm
78mm
Step 5 - Connect the cable:
5
Blue
Brown/
Black
Make sure that the cable is de-energized when connecting (switch off the circuit
breakers). Use a voltage detector to check that there is no voltage in the
connection cable.
Connect the product using a copper cable with a cross section of at least 1.5 mm
Step 6 - Replace the rear cover:
6
1. Replace the rear cover.
2. Screw it tight again using the supplied hex key. Do not clamp the cable into the cable
bushing.
Step 7 - Mount the light:
7
Secure the lamp to the mounting brackets in the correct orientation.
Step 8 - Switch on the mains voltage:
8
On/Off
Ein/Aus USB 5 V/DC
Switch the voltage supply back on.
9 Operation
9.1 Using the LED light
Switch the LED light under the light cover (4) on or off using the on/off switch (3).
9.2 Using the power strip
Read and follow the "Safety information" section carefully.
Connect up to two devices to the earthed mains sockets (1).
Off
Aus
Yellow and green
On
Ein
250 V/AC max.3500 W
.
