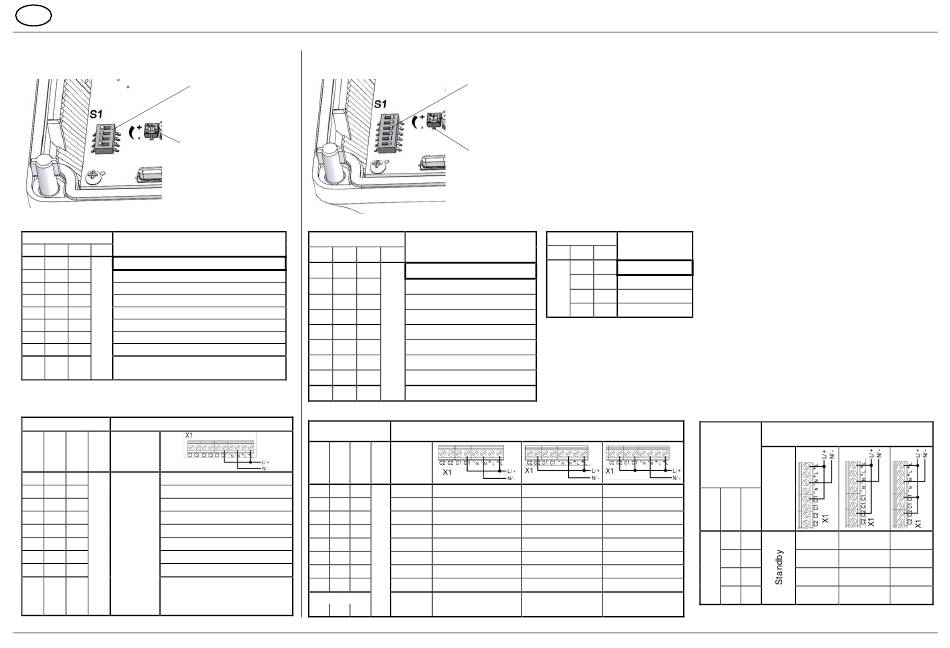

Setting the operating modes

With single color LED
(Circuit board in the lens)
S1
Selection of operating
mode
Light intensity control
Flashing light:
10 – 100%
Blinking/Continuous
light:
Without external control
S1
Operating mode
1 2 3 4
OFF OFF OFF Flashing light 1 Hz *
OFF OFF ON Flashing light 0.75 Hz
OFF ON OFF Continuous light
OFF ON ON Blinking light 1 Hz
ON OFF OFF Flashing light 2 Hz
OFF
ON OFF ON Blinking light 2 Hz
ON ON OFF Flashing light 0.1 Hz
ON ON ON Flashing light 0.5 Hz
Double Flash mode (DFM3) see op-
OFF OFF ON
tion in original operating instructions
* Factory setting
With external control
S1 Operating mode
C1
1 2 3 4
not acti-
vated
OFF OFF OFF Flashing light 1 Hz
OFF OFF ON Flashing light 0.75 Hz
OFF ON OFF Continuous light
OFF ON ON Blinking light 1 Hz
ON OFF OFF Flashing light 2 Hz
Standby
ON OFF ON ON Blinking light 2 Hz
ON ON OFF Flashing light 0.1 Hz
ON ON ON Flashing light 0.5 Hz
Double Flash mode (DFM3)
OFF OFF ON see option in original operat-
ing instructions
03/2021
With multicolor-LED
(Circuit board in the lens)
45 – 100%
Without external control
S1
1 2 3 4
OFF OFF OFF
OFF OFF ON
OFF ON OFF
OFF ON ON
ON OFF OFF OFF
ON OFF ON
ON ON OFF
ON ON ON
OFF OFF ON
With external control
S1
C1/ C2
1 2 3 4 not acti-
vated
OFF OFF OFF Standby Blinking light 1 Hz
OFF OFF ON Standby
OFF ON OFF Standby Blinking light 1 Hz
OFF ON ON Standby Flashing light 1 Hz Continuous light
ON OFF OFF Standby Flashing light 1 Hz Continuous light Blinking light 1 Hz
ON
ON OFF ON Standby Flashing light 1 Hz Continuous light Flashing light 1 Hz
ON ON OFF Standby Blinking light 1 Hz Blinking light 1 Hz Blinking light 1 Hz
ON ON ON Standby
DFM
Standby
OFF OFF ON
S1
Selection of operating mode
Light intensity control
Flashing light: 10 – 100%
Blinking / Continuous light: 45 – 100%
Color assignment
S1
Operating mode
4 5
OFF OFF Red *
Flashing light 1 Hz *
OFF ON Blue
Flashing light 0.75 Hz
OFF
ON OFF Green
Continuous light
ON ON Yellow
Blinking light 1 Hz
*
Flashing light 2 Hz
Factory setting
Blinking light 2 Hz
Flashing light 0.1 Hz
Flashing light 0.5 Hz
Double flash mode (DFM3)
Operating mode
Continuous light
Continuous light Continuous light
Continuous light Blinking light 1 Hz
Continuous light Continuous light Blinking light 1 Hz
DFM1 DFM2
6/16
Quick guide PY L-M/ PY L-MA
Color
6
S1
C1/ C2
not ac-
Continuous light
tivated
Continuous light
4 5 6
Continuous light
OFF OFF
OFF ON
ON
ON OFF
ON ON
DFM3
Color assignment
Red Green Blue
Red Green Yellow
Red Green White
Yellow Green Red
