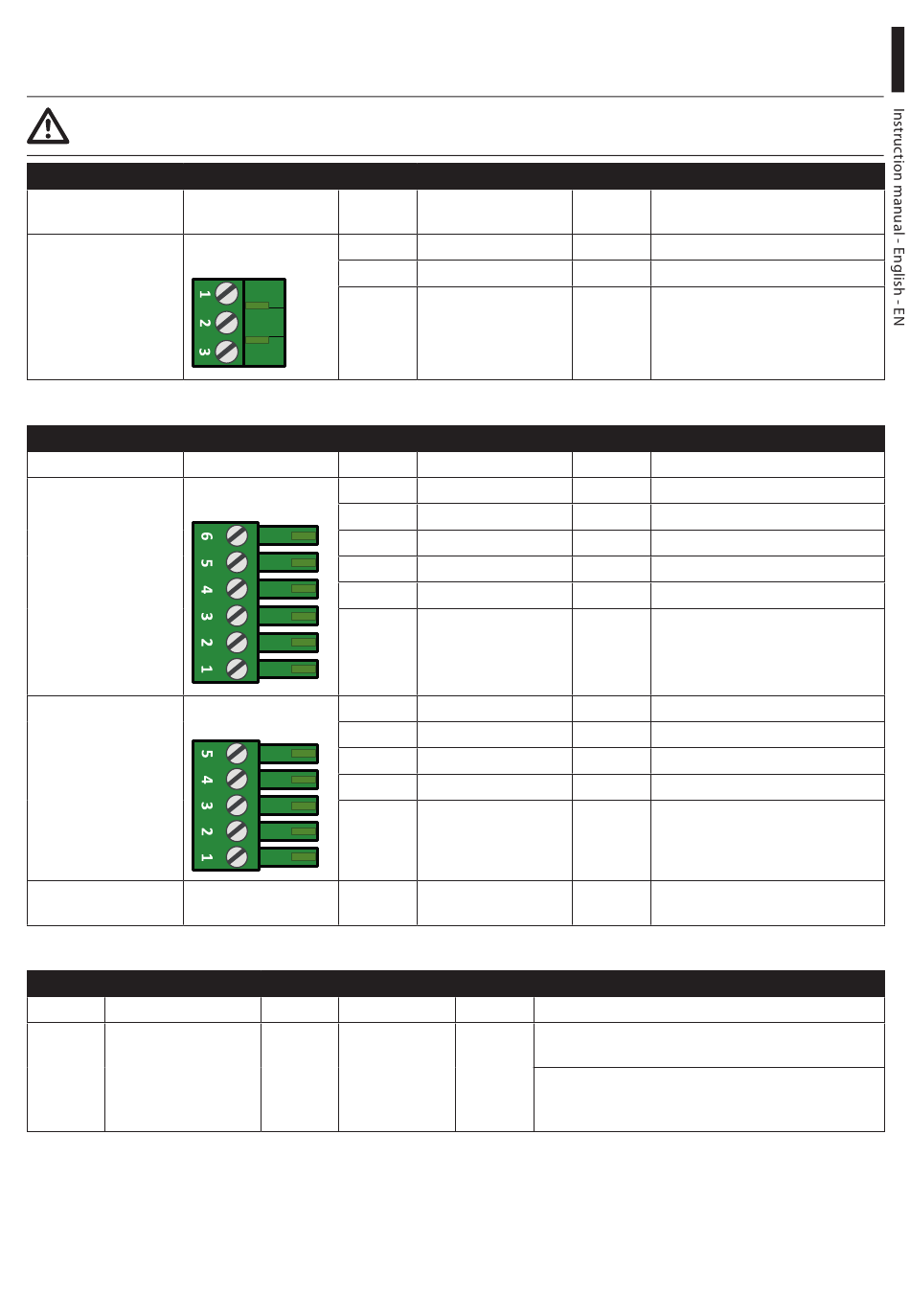

6.3 Description of the multipolar cable and of the cable tail
Connect the connectors and the free ends of the multipolar cable or of the cable tail as described in the tables.
The shielding of the I/O cable must be grounded.
POWER SUPPLY CABLE
Function Type of connector
Power supply 3 pole
Tab. 1
I/O CABLE
Function Type of connector
Reset, alarm 6 pole
Relay 5 pole
Protection from –
interference
Tab. 2
ETHERNET CABLE
Function Type of connector
Ethernet RJ45 (8P8C)
Tab. 3
MNVKMPX2C_2225_EN
Position Description
1 Phase (L)
2 Neutral (N)
3 Earth
Position Description
1 –
2 –
3 Reset
4 Reset
5 GND
6 Alarm 1
1 –
2 Relay 1, Terminal A
3 Relay 1, Terminal B
4 Relay 2, Terminal A
5 Relay 2, Terminal B
– Tinned copper braid
shielding
Position Description
Standard –
EIA/TIA
568-B
Colour/
Number
Black/1
Black/2
Yellow-
Green
Colour
–
–
Yellow
White
Green
Red
–
Brown
Grey
Pink
Blue
–
Colour Notes
– Multipolar cable
Shielded connector
Cable tail
Shielded connectors. The cable with the black sheath
is connected to the shielding.
Notes
–
–
The safety earthing system must
be carried out according to local
installation dispositions
Notes
Not connected
Not connected
–
–
–
–
Not connected
–
–
–
–
The shielding must be grounded.
