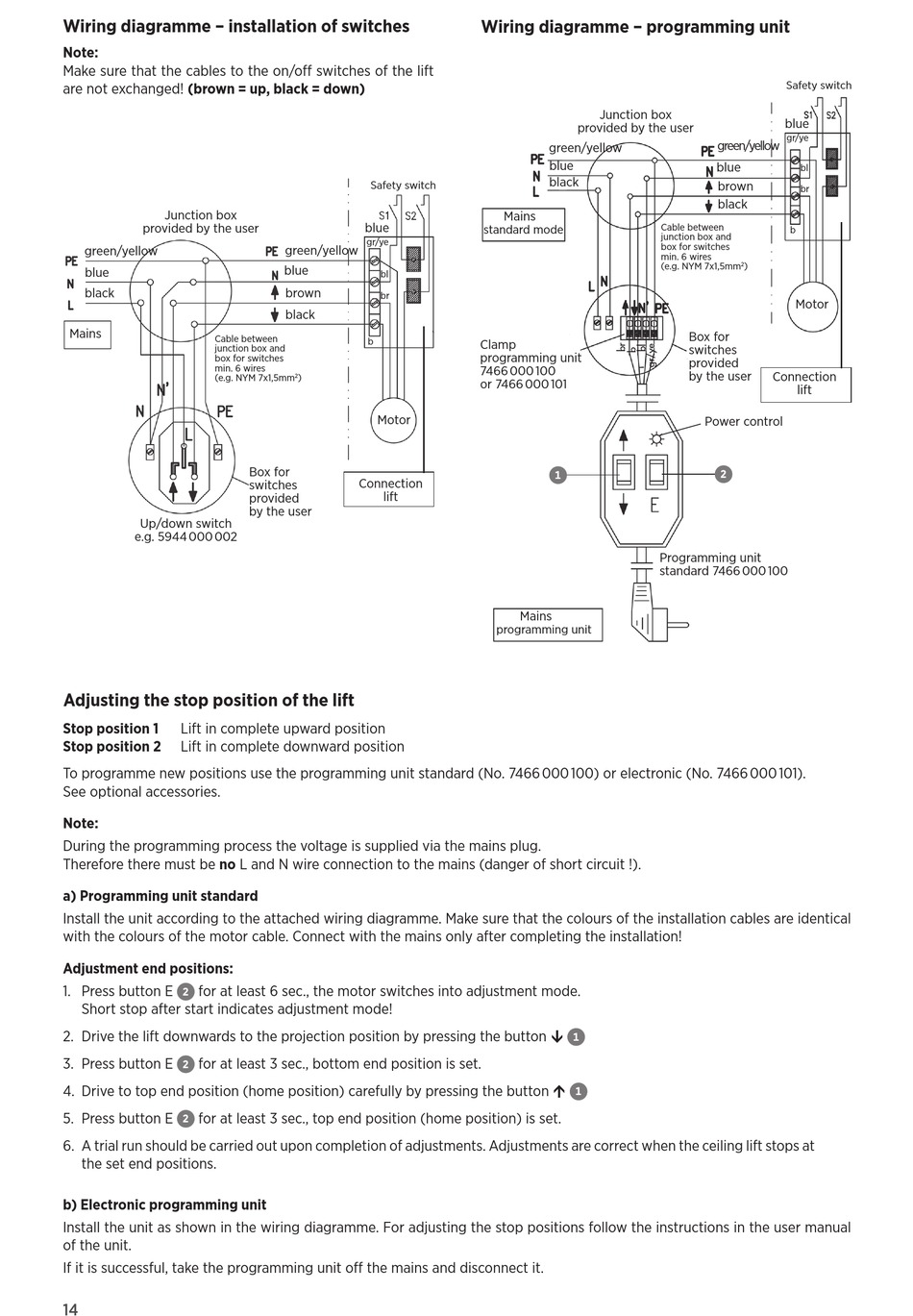

Wiring diagramme – installation of switches
Note:
Make sure that the cables to the on/off switches of the lift
are not exchanged! (brown = up, black = down)
Junction box
provided by the user
green/yellow
blue
black
Mains
Cable between
junction box and
box for switches
min . 6 wires
(e .g . NYM 7x1,5mm
Up/down switch
e .g . 5944 000 002
Adjusting the stop position of the lift
Stop position 1 Lift in complete upward position
Stop position 2 Lift in complete downward position
To programme new positions use the programming unit standard (No . 7466 000 100) or electronic (No . 7466 000 101) .
See optional accessories .
Note:
During the programming process the voltage is supplied via the mains plug .
Therefore there must be no L and N wire connection to the mains (danger of short circuit !) .
a) Programming unit standard
Install the unit according to the attached wiring diagramme . Make sure that the colours of the installation cables are identical
with the colours of the motor cable . Connect with the mains only after completing the installation!
Adjustment end positions:
1 . Press button E for at least 6 sec ., the motor switches into adjustment mode .
2
Short stop after start indicates adjustment mode!
2 . Drive the lift downwards to the projection position by pressing the button 
3 . Press button E for at least 3 sec ., bottom end position is set .
2
4 . Drive to top end position (home position) carefully by pressing the button 
5 . Press button E for at least 3 sec ., top end position (home position) is set .
2
6 . A trial run should be carried out upon completion of adjustments . Adjustments are correct when the ceiling lift stops at
the set end positions .
b) Electronic programming unit
Install the unit as shown in the wiring diagramme . For adjusting the stop positions follow the instructions in the user manual
of the unit .
If it is successful, take the programming unit off the mains and disconnect it .
14
Safety switch
blue
gr/ye
green/yellow
blue
bl
brown
br
black
b
)
2
Motor
Box for
Connection
switches
lift
provided
by the user
Wiring diagramme – programming unit
Junction box
provided by the user
green/yellow
blue
black
Mains
standard mode
Clamp
programming unit
7466 000 100
or 7466 000 101
1
Mains
programming unit
1
1
Safety switch
blue
gr/ye
green/yellow
blue
bl
brown
br
black
Cable between
b
junction box and
box for switches
min . 6 wires
(e .g . NYM 7x1,5mm )
2
Motor
Box for
switches
provided
by the user
Connection
lift
Power control
2
Programming unit
standard 7466 000 100
