This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!
B
C
D
E
F
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Damage and/or malfunctions of the heater due to the use of other than high qua-
lity water-free pure paraffin oil is not covered by the warranty.
Always refer to your local dealer for the right fuel for your heater.
ManUal
A

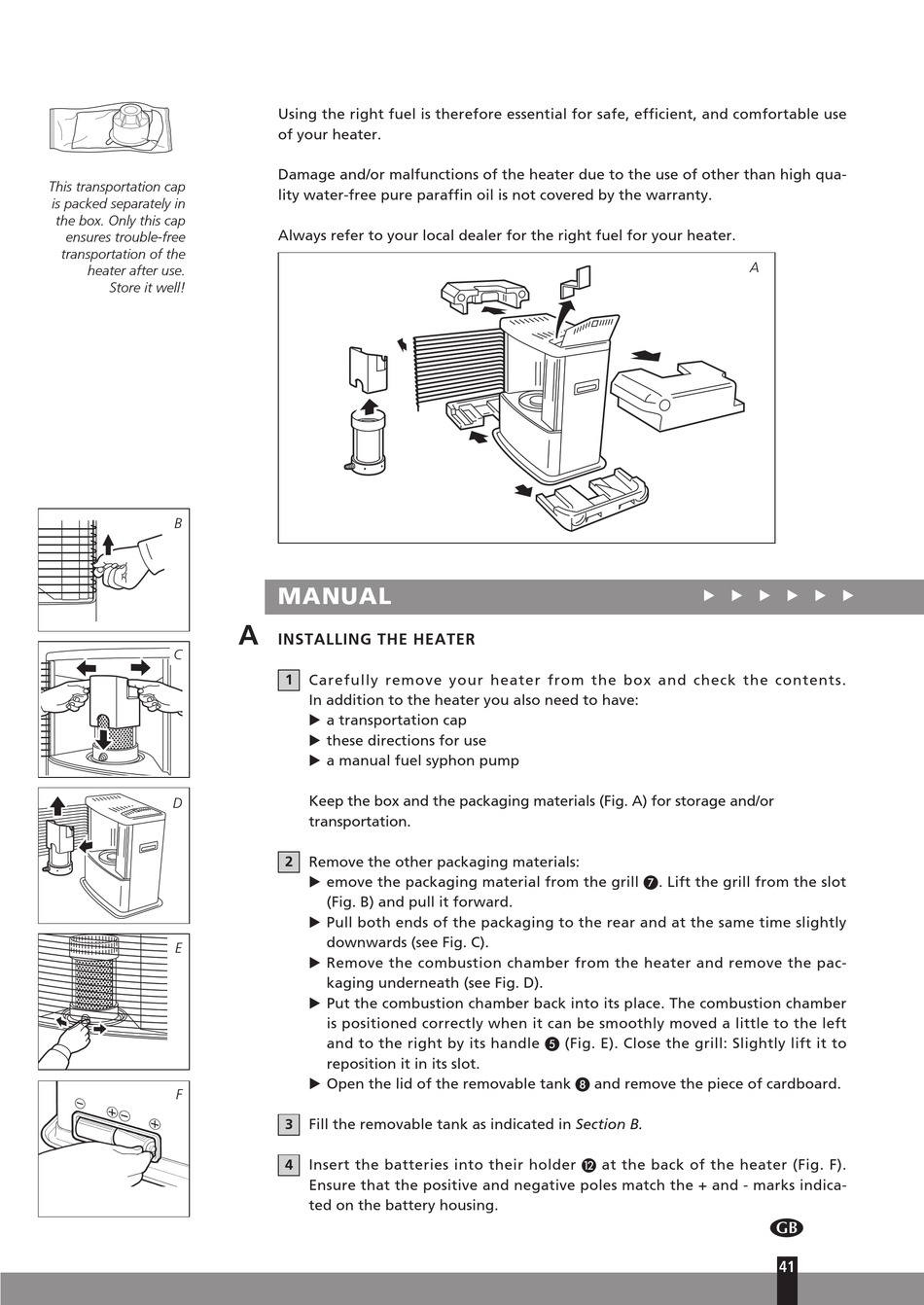

INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents.
In addition to the heater you also need to have:
e a transportation cap
e these directions for use
e a manual fuel syphon pump
Keep the box and the packaging materials (Fig. A) for storage and/or
transportation.
2 Remove the other packaging materials:
e emove the packaging material from the grill G. Lift the grill from the slot
(Fig. B) and pull it forward.
e Pull both ends of the packaging to the rear and at the same time slightly
downwards (see Fig. C).
e Remove the combustion chamber from the heater and remove the pac-
kaging underneath (see Fig. D).
e Put the combustion chamber back into its place. The combustion chamber
is positioned correctly when it can be smoothly moved a little to the left
and to the right by its handle E (Fig. E). Close the grill: Slightly lift it to
reposition it in its slot.
e Open the lid of the removable tank H and remove the piece of cardboard.
3 Fill the removable tank as indicated in Section B.
4 Insert the batteries into their holder L at the back of the heater (Fig. F).
Ensure that the positive and negative poles match the + and - marks indica-
ted on the battery housing.
A
e e e e e e
