Installing the Scale Control R Meter

(for systems installed after October 2017)
1
3
2
4
12

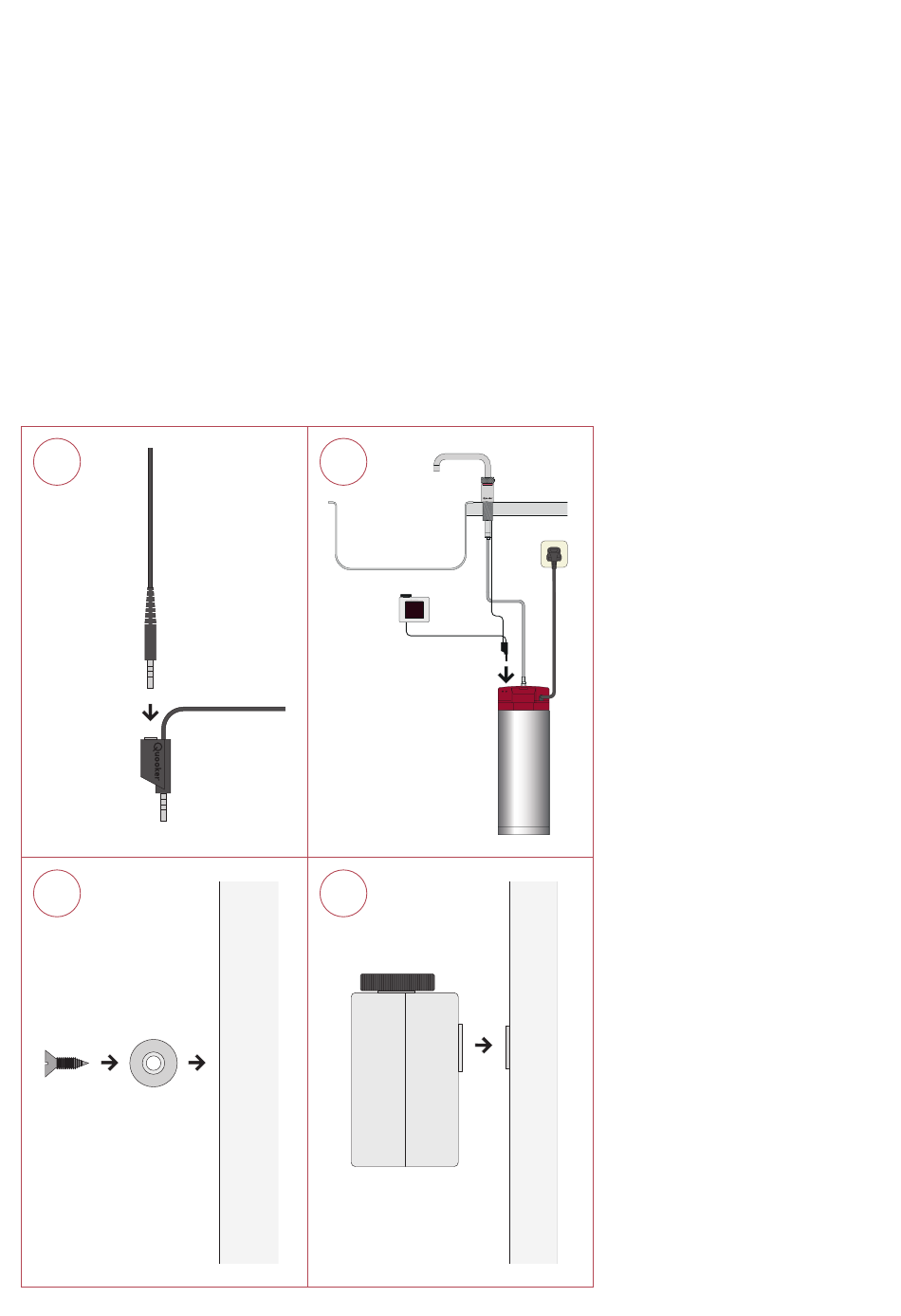

1. Connecting the tap
Detach the tap's jack plug from the
tank and insert it into the jack plug
socket of the Scale Control R Meter.
2. Connecting the Scale Control R
Meter
Insert the jack plug of the Meter into the
inside port, closest to the backside of the
Quooker tank.
3. Mounting the metal washer
Use the supplied screw to fasten the
metal washer to the kitchen cabinet.
4. Securing the Scale Control R Meter
Mount the Meter onto the metal washer
using the magnet on the back of the
Meter. Affix the sticker provided next to
the Meter on the inside of the cabinet.
Please note
In case of error, try to install the jack
plug of the Scale Control R Meter into
the second port of the Quooker-tank.
If the error still persists, please contact
Quooker Service.
