Installation
ð All three black cables are brought together in the block wire connector
8.
Replace the funnel and fasten hand-tight.
9.
Close the dispenser again with the locking bracket.
Wiring diagram

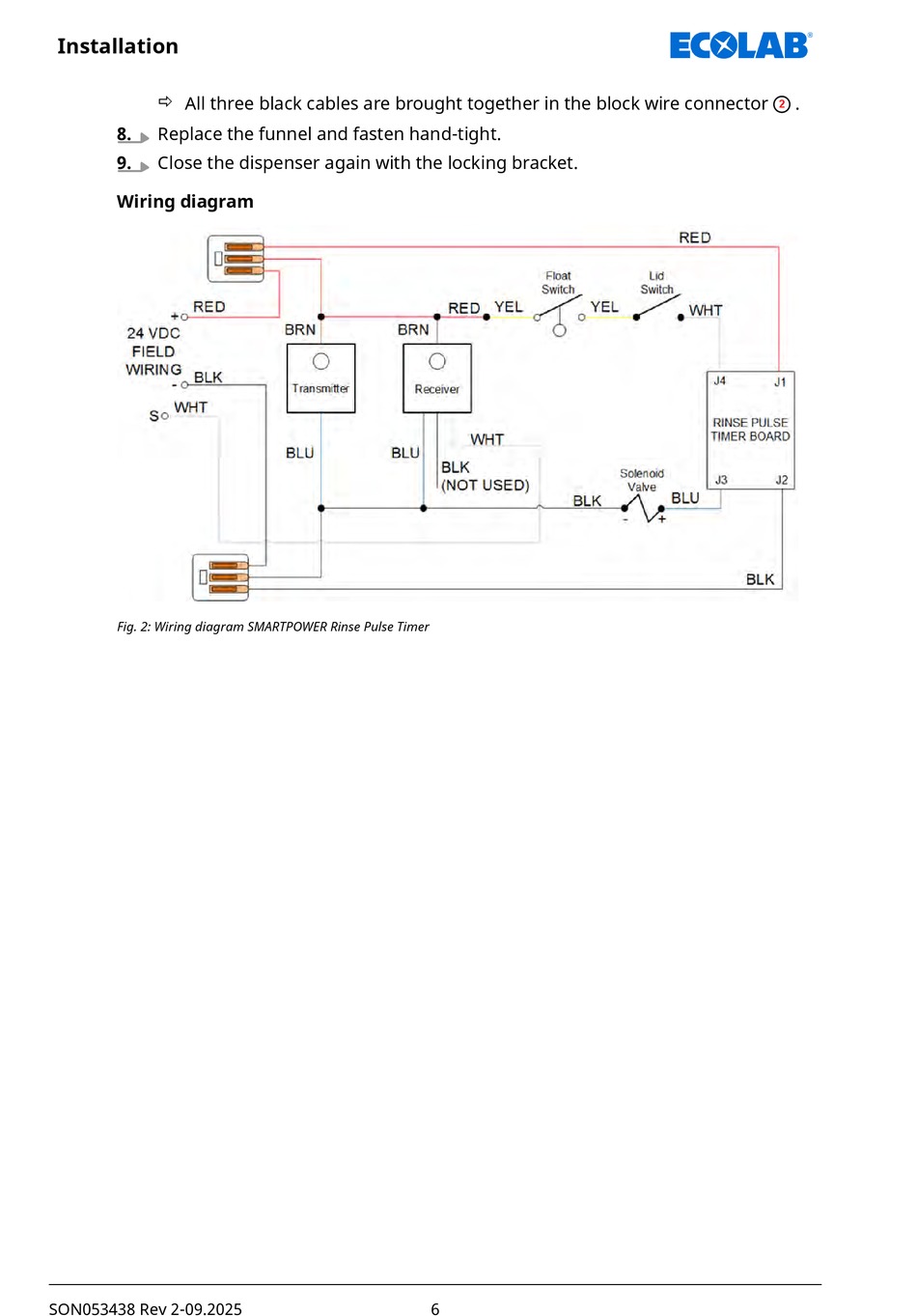

Fig. 2: Wiring diagram SMARTPOWER Rinse Pulse Timer
