2 Installation
Protective equipment:
NOTICE!
Material damage by using incorrect tools!
Material damage may arise by using incorrect tools. Use the correct
tools.
DANGER!
Risk of electric shock
Be sure to disconnect the power supply immediately and to secure against
accidental switch-on!
Have the required tools ready before installation.
Tool:
Material:
1
2
3

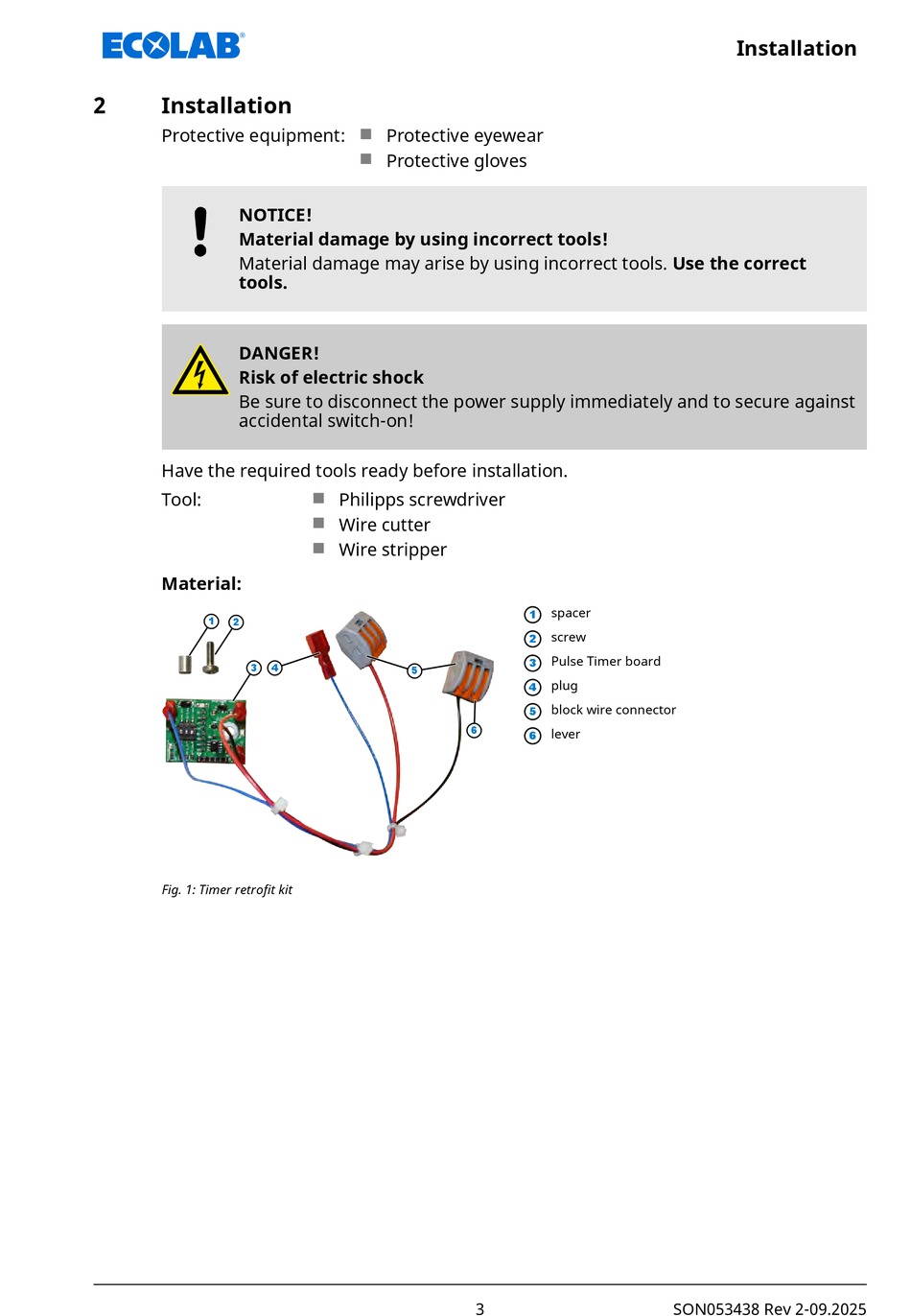

Fig. 1: Timer retrofit kit
Protective eyewear
n
Protective gloves
n
Philipps screwdriver
n
Wire cutter
n
Wire stripper
n
4
5
spacer
1
screw
2
Pulse Timer board
3
plug
4
block wire connector
5
6
lever
6
