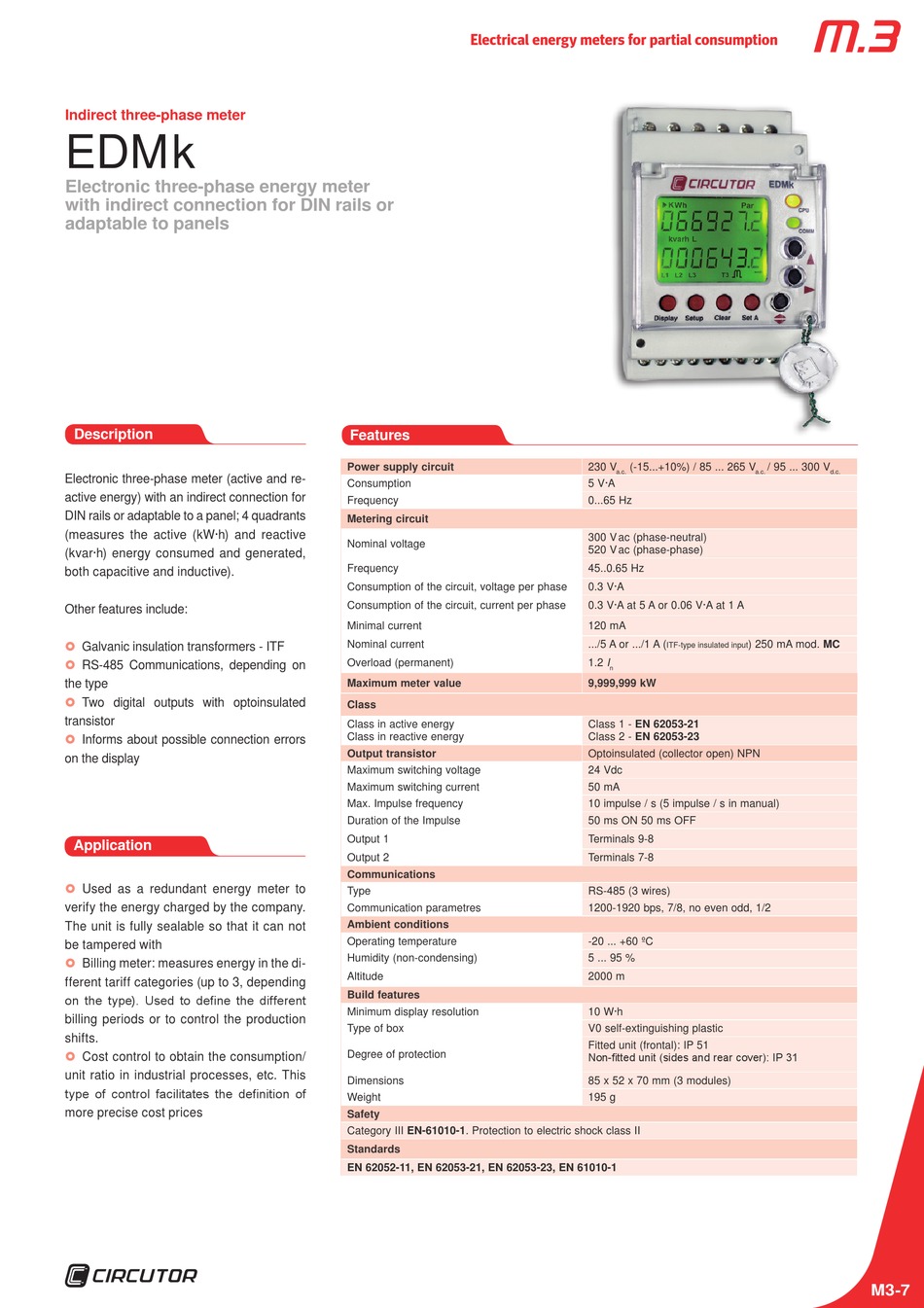

Indirect three-phase meter
EDMk
Electronic three-phase energy meter
with indirect connection for DIN rails or
adaptable to panels
Description
Electronic three-phase meter (active and re-
active energy) with an indirect connection for
DIN rails or adaptable to a panel; 4 quadrants
(measures the active (kW ·h) and reactive
(kvar ·h) energy consumed and generated,
both capacitive and inductive).
Other features include:
} }
Galvanic insulation transformers - ITF
} }
RS-485 Communications, depending on
the type
} }
Two digital outputs with optoinsulated
transistor
} }
Informs about possible connection errors
on the display
Application
} }
Used as a redundant energy meter to
verify the energy charged by the company.
The unit is fully sealable so that it can not
be tampered with
} }
Billing meter: measures energy in the di-
fferent tariff categories (up to 3, depending
on the type). Used to define the different
billing periods or to control the production
shifts.
} }
Cost control to obtain the consumption/
unit ratio in industrial processes, etc. This
type of control facilitates the definition of
more precise cost prices
Electrical energy meters for partial consumption
Features
Power supply circuit
Consumption
Frequency
Metering circuit
Nominal voltage
Frequency
Consumption of the circuit, voltage per phase
Consumption of the circuit, current per phase
Minimal current
Nominal current
Overload (permanent)
Maximum meter value
Class
Class in active energy
Class in reactive energy
Output transistor
Maximum switching voltage
Maximum switching current
Max. Impulse frequency
Duration of the Impulse
Output 1
Output 2
Communications
Type
Communication parametres
Ambient conditions
Operating temperature
Humidity (non-condensing)
Altitude
Build features
Minimum display resolution
Type of box
Degree of protection
Dimensions
Weight
Safety
Category III EN-61010-1. Protection to electric shock class II
Standards
EN 62052-11, EN 62053-21, EN 62053-23, EN 61010-1
230 V (-15...+10%) / 85 ... 265 V
a.c. a.c.
5 V ·A
0...65 Hz
300 V ac (phase-neutral)
520 V ac (phase-phase)
45..0.65 Hz
0.3 V ·A
0.3 V ·A at 5 A or 0.06 V ·A at 1 A
120 mA
.../5 A or .../1 A ( ) 250 mA mod. MC
ITF-type insulated input
1.2 I
n
9,999,999 kW
Class 1 - EN 62053-21
Class 2 - EN 62053-23
Optoinsulated (collector open) NPN
24 Vdc
50 mA
10 impulse / s (5 impulse / s in manual)
50 ms ON 50 ms OFF
Terminals 9-8
Terminals 7-8
RS-485 (3 wires)
1200-1920 bps, 7/8, no even odd, 1/2
-20 ... +60 ºC
5 ... 95 %
2000 m
10 W ·h
V0 self-extinguishing plastic
Fitted unit (frontal): IP 51
Non-fitted unit (sides and rear cover): IP 31
85 x 52 x 70 mm (3 modules)
195 g
/ 95 ... 300 V
d.c.
M3-7
