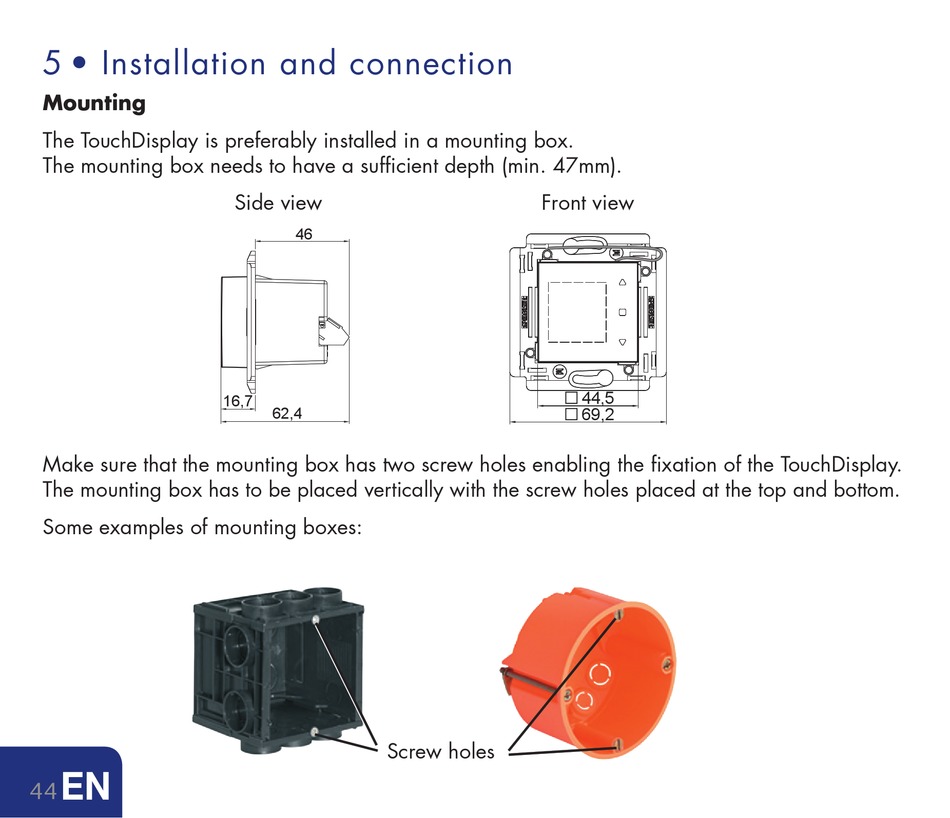

5 • Installation and connection
Mounting
The TouchDisplay is preferably installed in a mounting box.
The mounting box needs to have a sufficient depth (min. 47mm).
Make sure that the mounting box has two screw holes enabling the fixation of the TouchDisplay.
The mounting box has to be placed vertically with the screw holes placed at the top and bottom.
Some examples of mounting boxes:
EN
44
Side view
46
16,7
62,4
Screw holes
Front view
£ 44,5
£ 69,2
