Control menu

You can use the control buttons and the display to navigate through the control menu
and make settings or activate functions.
The menu has the following structure:
Mode START SYSTEM
FILLING THE SYSTEM
PARAMETERS
CONFIGURATION
REMOVE MAP

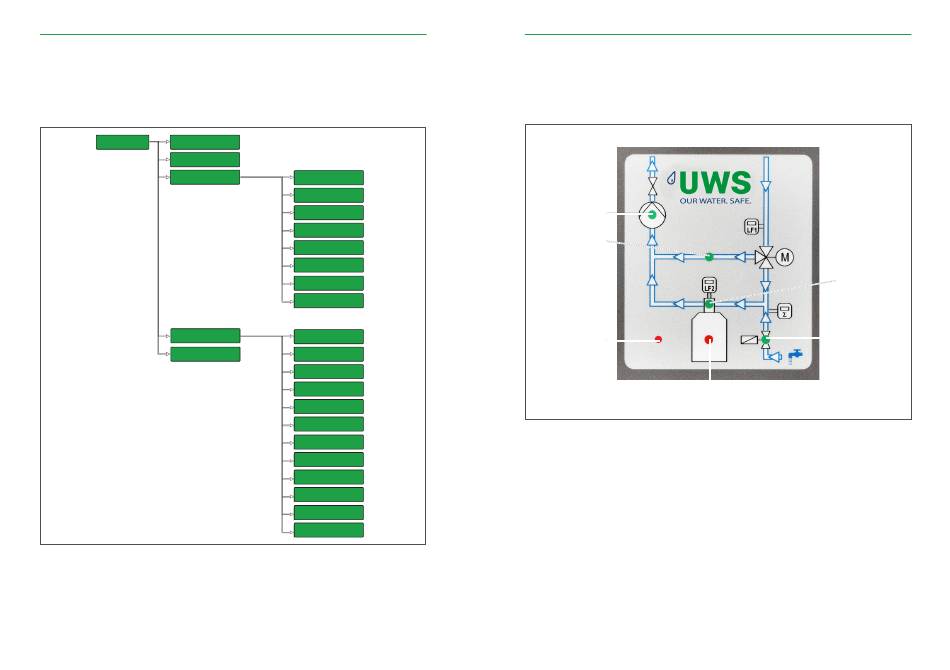

Fig. 3-5: Menu structure of the control unit
Further information on the individual functions and settings can be found in section
„5.1 Making settings in the control unit" on page 32.
22
OPERATING
Measurement delay
Limit value LF 1
Hysteresis desalination
Delay desalination
Temperature limit
Max. LF from cartridge
Max. Replenishment
Cartridge protection
Operating mode...
Differential pressure
measurement
Reset water meter
Reset leakage counter
Factory settings
Language
Time of day
Date
Data acquisition
Set password
Software
Serial number
Device description | Heaty Racun 300 Advanced
Flow diagram with status display
The flow chart with status display shows the treatment process schematically. The
following status displays are available at the corresponding points to monitor the
process:
A
B
Alarm
F
E
Fig. 3-6: Flow diagram with status indicators
A „Pump on" indicator light
B „Internal bypass active" indicator light
C „Treatment active" indicator light
D „Solenoid valve backfeed" indicator light
E „Cartridge used" indicator light
F „Alarm" indicator light (cartridge used up,
LF1/LF2 measuring probe fault, filter full, pump fault)
C
D
