5.18. The visual readability of the register and all key figures for the meter and the confor-
mity and metrology markings must not be concealed.
5.19. For wet room installations with an extension sleeve, a rosette disk can also be
inserted and this must be ordered separately.
6. Meter exchange
6.1. Block and empty the line by closing the flat or mains stop valve.
6.2. Remove the rosette (possibly with the extension sleeves).
6.3. Ensure it is actually an AMS flush-mounted housing (see no. 1.4).
Only use the Minolas measurement capsule in Allmess flush-mounted parts with
the 3/4" ground stamp!
6.4. Unscrew the thread ring and the measurement capsule from the FMT with an instal-
lation wrench. The AMS threaded ring is not reused.
6.5. Remove the seal ring from the FMH and, if necessary, clean dirt from it, especially on
the sealing surfaces of the O-ring.
6.6. Install the new Minolas measurement capsule, as described in No. 1.6 to 1.19.
Carefully check seal and function.
7. Installation wrench
To install and dismantle the measuring insert, use an installation wrench.
8. User safeguard
A user safeguard must be used (adhesive label, seal etc.) to detect whether the measurement capsule has been removed
from the connection interface or whether an impermissible removal has taken place.
9. Disposal
Battery-powered devices, or battery-powered modules additionally installed on mechanical devices, may contain
non-removable and non-rechargeable lithium batteries. These are marked with the WEEE directive symbol (crossed-out
garbage can). Batteries contain substances, which could harm the environment and might endanger human health if not
disposed of properly. To reduce the disposal quantity so as unavoidable pollutants from electrical and electronic equip-
ment in waste, old equipment should be reused prior or materials recycled or reused as another form. This is only possible
if old equipment, batteries, other accessories and packaging of the products are returned to the manufacturer or handed in
at recycling centres. Our business processes generally provide that we or the specialist companies we use take old devices
including batteries, other accessories and packaging material back with us after they have been replaced or at the end of
their useful life and dispose of them properly.
Insofar as no other contractual arrangement has been made in this respect, your local or municipal authority or the local
waste disposal company can give you information relating the collection points for your used equipments. ZENNER will
always ensure correct disposal.
Attention!
Do not dispose of the devices with domestic waste. In this way, you will help to protect natural resources and to promote
the sustainable reuse of material resources.
Should you have any questions, please contact info@zenner.com
The latest information on this product and the current version of these instructions can be found at www.zenner.com
ZENNER International GmbH & Co. KG
Heinrich-Barth-Straße 29 | 66115 Saarbrücken | Germany
Phone +49 681 99 676-30
Fax +49 681 99 676-3100
E-Mail info@zenner.com
Internet www.zenner.com

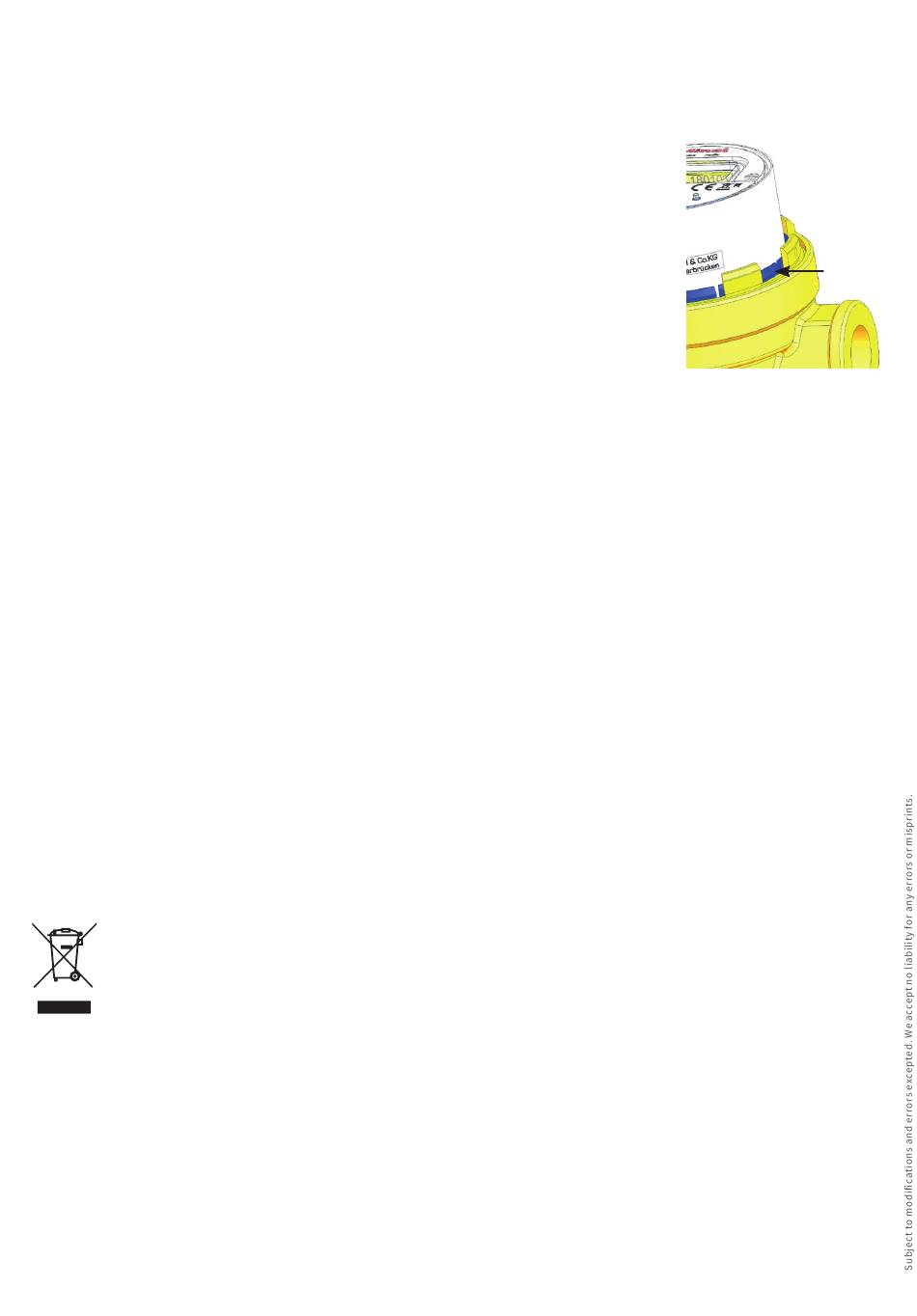

Fig. 5
