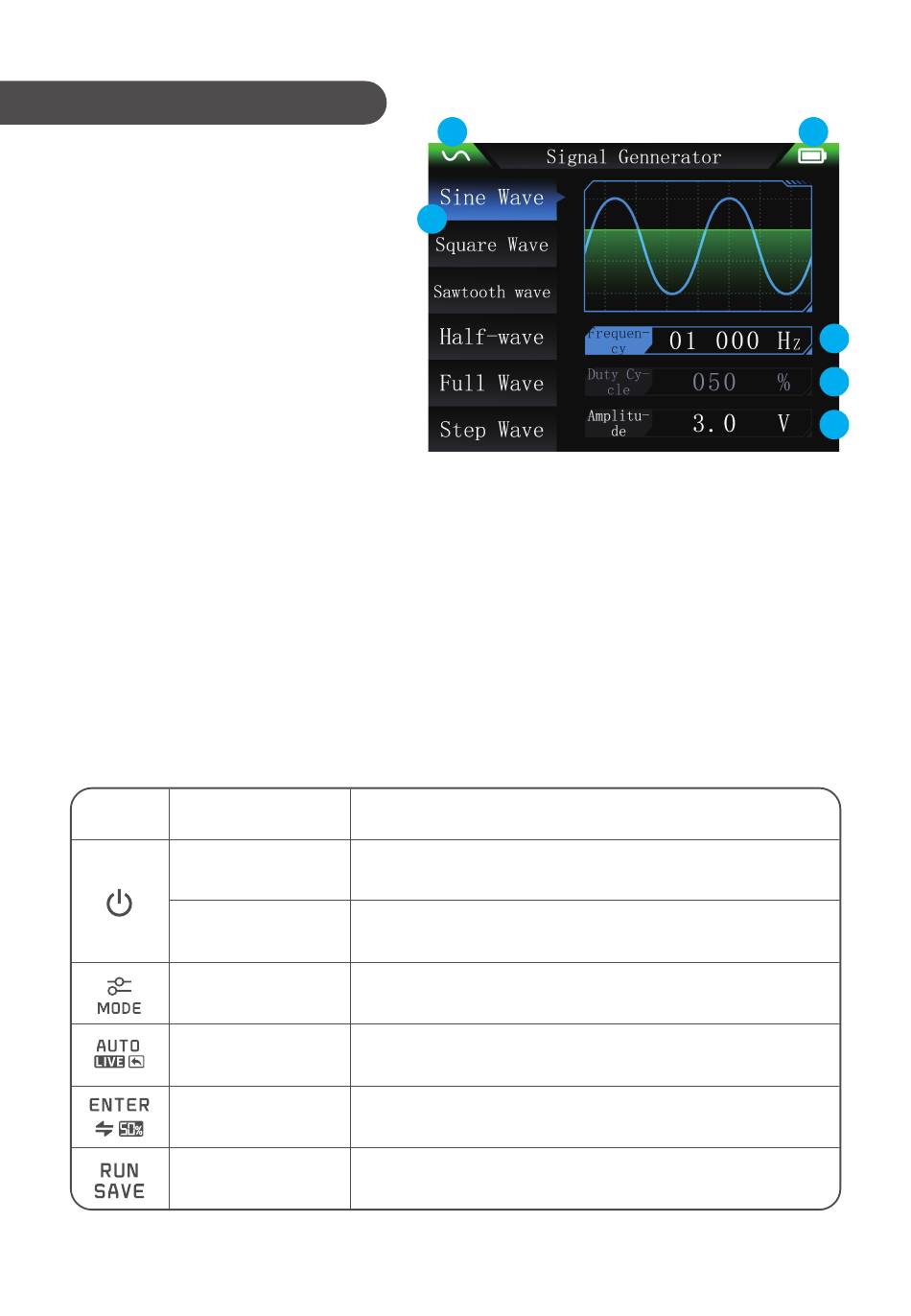

2.5 Signal Generator

① Battery display: This area
displays the remaining battery.
② Status display: This area
displays the on-state of the
signal generator, green for on,
red for off.
③ Waveform category: Short
press the up or down key to
select the waveform category, a
total of 13 waveforms are
available.
④ Frequency setting: Click the confirmation key to enter the frequency/du-
ty cycle/amplitude selection, click the "Select the frequency" to enter the
third-level navigation, set the frequency value, and click the return key to
save.
⑤ Duty cycle setting: Click the confirmation key to enter the frequency/du-
ty cycle/amplitude selection, click the "Select duty cycle" to enter the
third-level navigation, set the duty cycle, and click "Return" to save.
⑥ Amplitude setting: Click the confirmation key to enter the frequency/du-
ty cycle/amplitude selection, click the key to select the amplitude to enter
the third-level navigation, set the amplitude, and click "Return" to save.
Key
Operation
Short press
Long press
Short press
Long press
Short press
Short press
2
3
Function description
Menu button, switch to function menu.
Turn on/off power
Switch to other modes
Confirm, enter the frequency/duty cycle/amplitude
selection, use the up,down, left, and right keys to
set the corresponding value
Click to turn on/off generator
"Back"
EN
1
4
5
6
