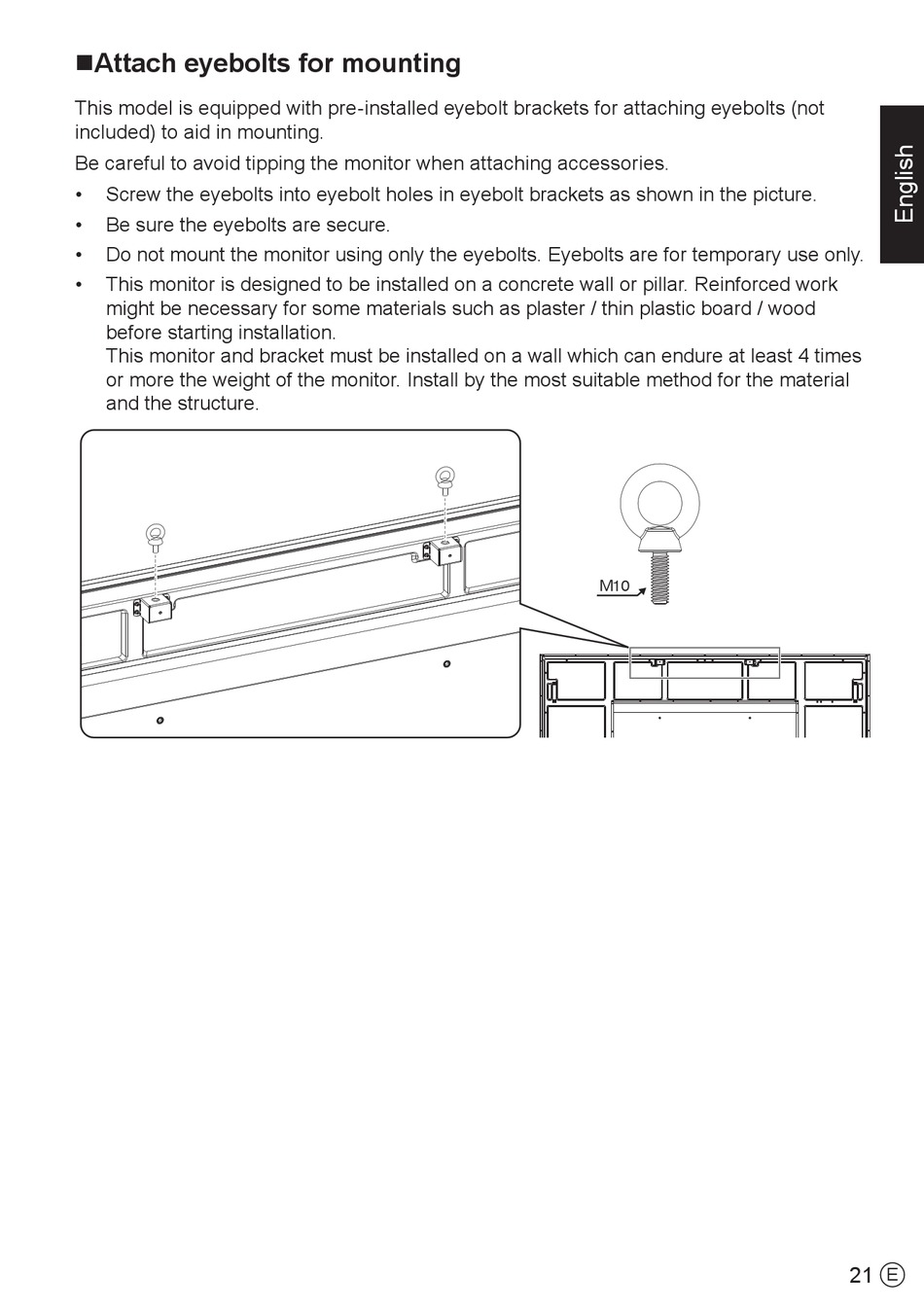

nAttach eyebolts for mounting
This model is equipped with pre-installed eyebolt brackets for attaching eyebolts (not
included) to aid in mounting.
Be careful to avoid tipping the monitor when attaching accessories.
• Screw the eyebolts into eyebolt holes in eyebolt brackets as shown in the picture.
• Be sure the eyebolts are secure.
• Do not mount the monitor using only the eyebolts. Eyebolts are for temporary use only.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work
might be necessary for some materials such as plaster / thin plastic board / wood
before starting installation.
This monitor and bracket must be installed on a wall which can endure at least 4 times
or more the weight of the monitor. Install by the most suitable method for the material
and the structure.
M10
21
E
