Control Box Mounting
12

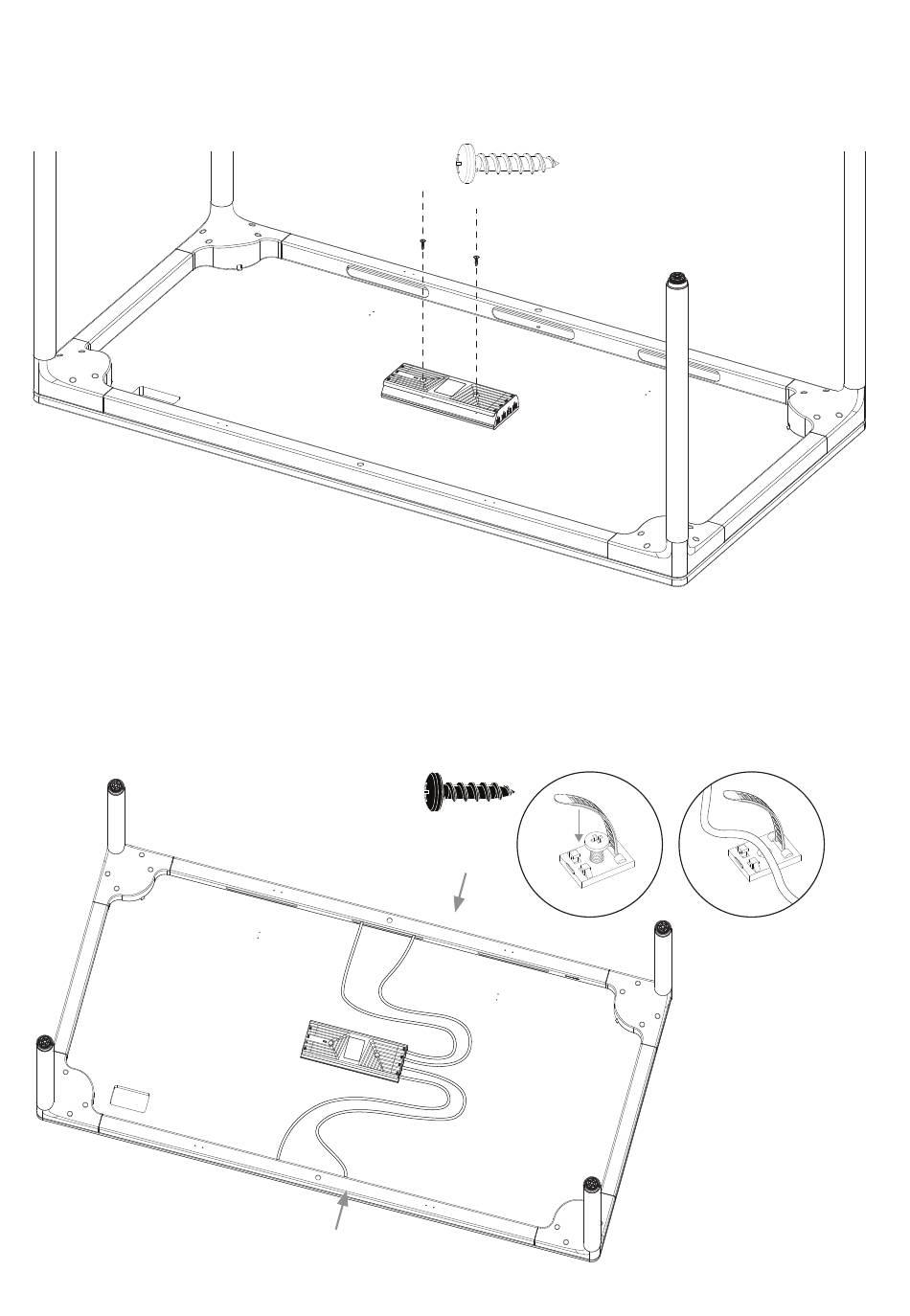

Mount control box to bottom of worksurface using 2 silver 20mm screws. Control box side with
'DC' and 'HS' should face towards the desired leg for routing power cord.
13
Connect all leg cables to control box, ports M 1 - 4. The ports of these cable connections are
universal, order does not matter. Route the cables as desired and install cable clips using the black
16mm screws. Secure the cables using the cable clips.
NOTE: At least one cable clip should be reserved for the hand switch (step 16)
10
①
②
