SAFETY INSTRUCTIONS FOR THE CHARGER
• The charger must not be exposed to moisture or water. The ingress
of water into the charger increases the risk of shock. The charger
may only be used indoors in dry rooms.
• Unplug the charger from the mains before carrying out any
maintenance or cleaning.
• Do not use the charger placed on a flammable surface (e.g. paper,
textiles) or in the vicinity of flammable substances. Due to the
charger's temperature increase during the charging process, there is
a danger of fire.
• Check the condition of the charger, cable and plug each time before
use. If damage is found - do not use the charger. Do not attempt to
disassemble the charger. Refer all repairs to an authorised service
workshop. Improper installation of the charger may result in a risk
of electric shock or fire.
• Children and physically, emotionally or mentally challenged
persons, as well as other persons whose experience or knowledge
is insufficient to operate the charger with all safety precautions,
should not operate the charger without the supervision of a
responsible person. Otherwise there is a danger that the device
will be mishandled resulting in injury.
• When the charger is not in use, it should be disconnected from the
mains.
• All charging instructions must be followed, and the battery must
not be charged at a temperature outside the range specified in the
rating table in the operating instructions. Charging incorrectly or at
temperatures outside the specified range can damage the battery
and increase the risk of fire.
CHARGER REPAIR
• A defective charger must not be repaired. Repairs to the charger
are only permitted by the manufacturer or an authorised service
centre.
• The used charger should be taken to a disposal centre for this type
of waste.
ATTENTION: The device is intended for indoor operation. Despite the
inherently safe design, the use of safety measures and additional
protective measures, there is always a risk of residual injury during
operation. Li-Ion batteries can leak, catch fire or explode if they are
heated to high temperatures or short-circuited. Do not store them in
the car during hot and sunny days. Do not open the battery pack. Li-
Ion batteries contain electronic safety devices which, if damaged, can

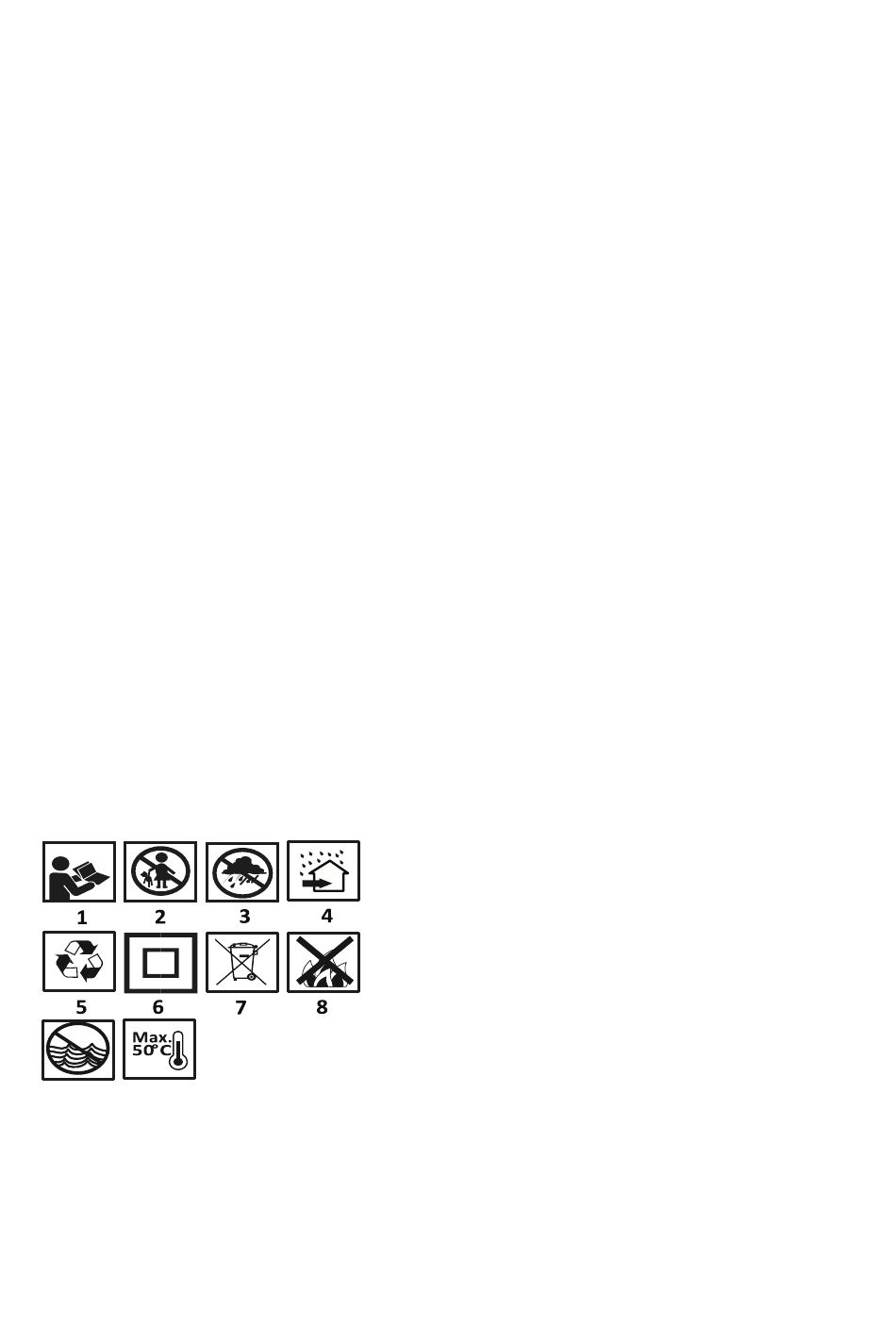

cause the battery to catch fire or explode. Explanation of pictograms
used
9
10
1.Read the operating instructions, observe the warnings and safety
conditions contained therein.
2.Keep children away from the appliance.
3.Protect from rain.
4.Use indoors, protected from water and moisture.
5.Recycling.
6.Second class of protection.
7.Selective collection.
8.Do not throw the cells into the fire.
9.Posing a risk to the aquatic environment.
10.Do not allow heat to exceed 50°C.
PURPOSE
The torch is a wireless portable light source. The light function is
performed by energy-saving LEDs. Unlike traditional incandescent
bulbs, LEDs are resistant to mechanical impact and have a service life
of up to 10,000 hours.
DESCRIPTION OF THE GRAPHIC PAGES
The numbering below refers to the components of the unit shown on
the graphic pages of this manual.
1.Reflector housing
2.Joint axle
3.Switch
4.Handle
5.Battery attachment socket
6.Handle
7.Rechargeable battery (not included)
8.Battery attachment button
9.LEDs
10.Charger (not included)
11.Battery charge status indicator button
12.Battery charge status indication (LEDs).
* There may be differences between the drawing and the device.
PREPARATION FOR WORK
REMOVING / INSERTING THE BATTERY
• Press the battery fixing button (8) and slide out the battery (7) (Fig.
A).
• Insert the charged battery (7) into the battery retaining slot (5)
until the battery retaining button (8) audibly engages.
CHARGING THE BATTERY
The device is supplied with a partially charged battery. The battery
should be charged in conditions where the ambient temperature is 4
C - 40
0
C. A new battery or one that has not been used for a long period
of time will reach full power capability after approximately 3 - 5 charge
and discharge cycles.
• Remove the battery (7) from the unit (Fig. A).
• Plug the charger into a mains socket (230 V AC).
• Insert the battery pack (7) into the charger (10) (Fig. B).Check that
the battery pack is properly seated (pushed all the way in).
When the charger is plugged into a mains socket (230 V AC), the green
LED (9) on the charger lights up to indicate that the voltage is
connected.
When the battery pack (7) is placed in the charger (10), the red LED (9)
on the charger will illuminate to indicate that the battery is being
charged.
At the same time, the green LEDs (12) of the battery's state of charge
light up pulsatingly in different patterns (see description below).
• Pulse lighting of all LEDs - indicates battery depletion and the need
to recharge.
•
The pulsating illumination of
indicates partial discharge.
• Pulsating 1 LED - indicates high battery charge.
When the battery is charged, the LED (9) on the charger lights up green
and all the battery charge status LEDs (12) light up continuously. After
a certain time (approx. 15s), the battery charge status LEDs (12) go out.
The battery should not be charged for more than 8 hours. Exceeding
this time may damage the battery cells. The charger will not switch
off automatically when the battery is fully charged. The green LED on
the charger will remain lit. The battery charge status LED will turn off
after a period of time. Disconnect the power supply before removing
the battery from the charger socket. Avoid consecutive short charges.
Do not recharge the battery after using it for a short time. A
8
.
0
2
LEDs
