Installation instructions
Installation, electrical connection and the first commission-
ing is permitted to be performed by a worker with relevant
qualifications. The panels are intended for mounting on a
wall or ceiling , or – if legs are purchased and fitted - as free-
standing heaters. The producer must be consulted before any
other form of installation is attempted.
Installation on the ceiling
•
Position the mounting frame in the location where the
panel is to be placed, using a pen, mark holes according to
the holes on the frame.
•
Drill the holes, insert the wall anchors and attach the
mounting frame with the screws.
•
Always hang the panel by all four mounting slots
•
Slide the panel into the mounting frame.
Installation on the wall
•

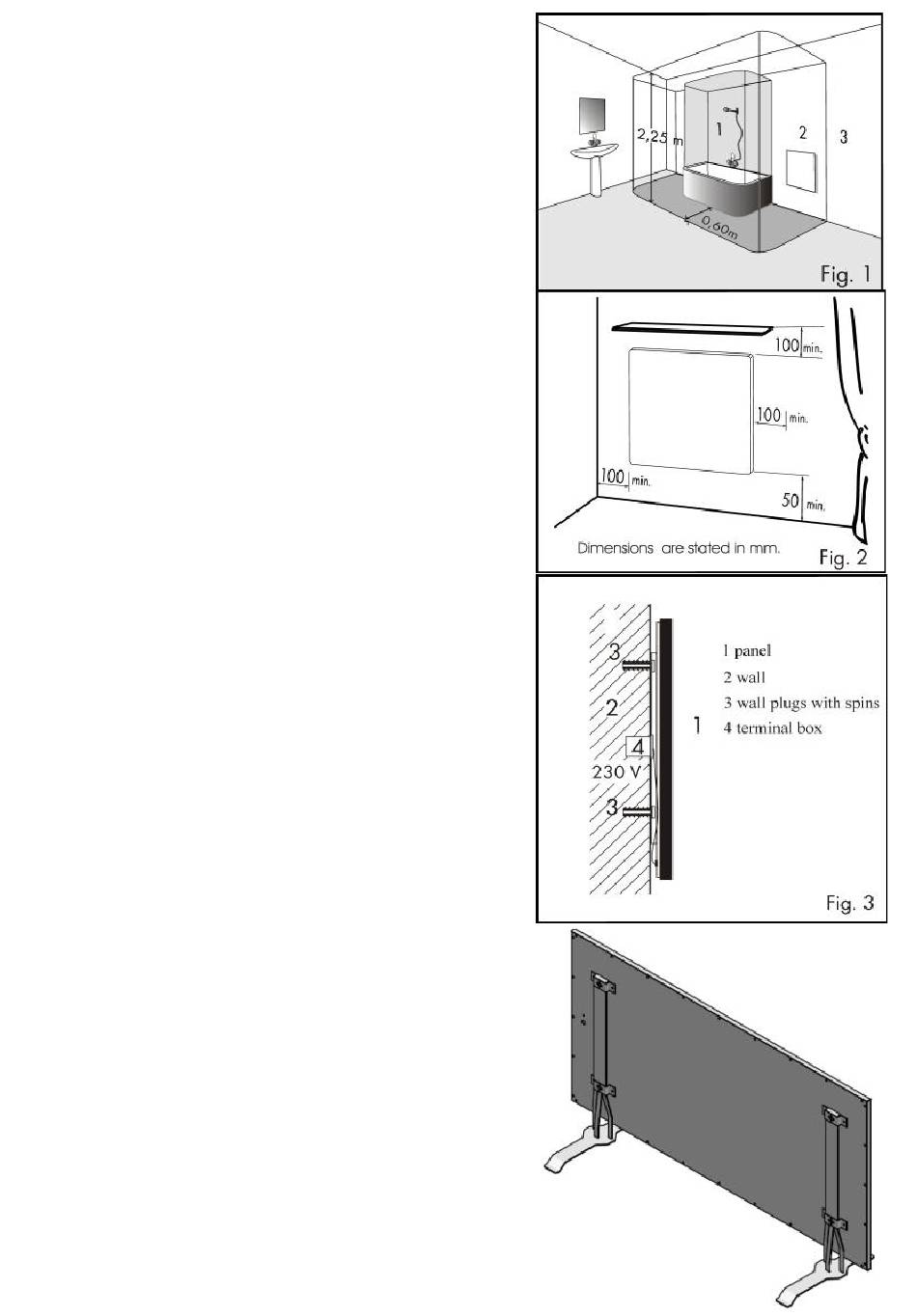

Mark the holes according to the table, drill out the holes,
insert the dowels and drive the screw in to protrude ap-
prox. 5 mm. (Fig. 4)
•
Always hang the panel by all four mounting slots.
•
Put the panel on the screws.
Installation in an open area – free-standing
(fig. 4)
•
Slide the panel onto the leg brackets and place it at the
required location.
Clearance distances
The distance between the bottom edge of the appliance and
the floor mustn't be less than 50 mm; 150 mm is recom-
mended. The clearance distance on the side (e.g. from furni-
ture) must be at least 100 mm, and 100 mm is the minimum
in the upward direction (see Fig. 2).
In bathrooms, the panel must be installed in accordance with
the HD 60364-7-701:2007 standard and is permitted to be
located in accordance with Fig 1.
Electric installation
The panel is equipped with a three-wire cable with a plug for
connection to an electrical socket. Power cable length: 1.9m.
Removal of the plug and shortening of the supply lead will
not result in loss of warranty.
The power supply cable is connected to a box on the wall,
see Fig 3.
The panel must not be placed directly under an electric sock-
et.
The supply cable must be fitted with a device for disconnec-
tion from the mains in which the distance between the dis-
connected contacts is at least 3.5 m for all poles.
The power cable cannot be exchanged. If the power cable is
damaged, the appliance should be discarded.
Furthermore, the panel is fitted with a limit thermostat
which ensures its safe operation.
