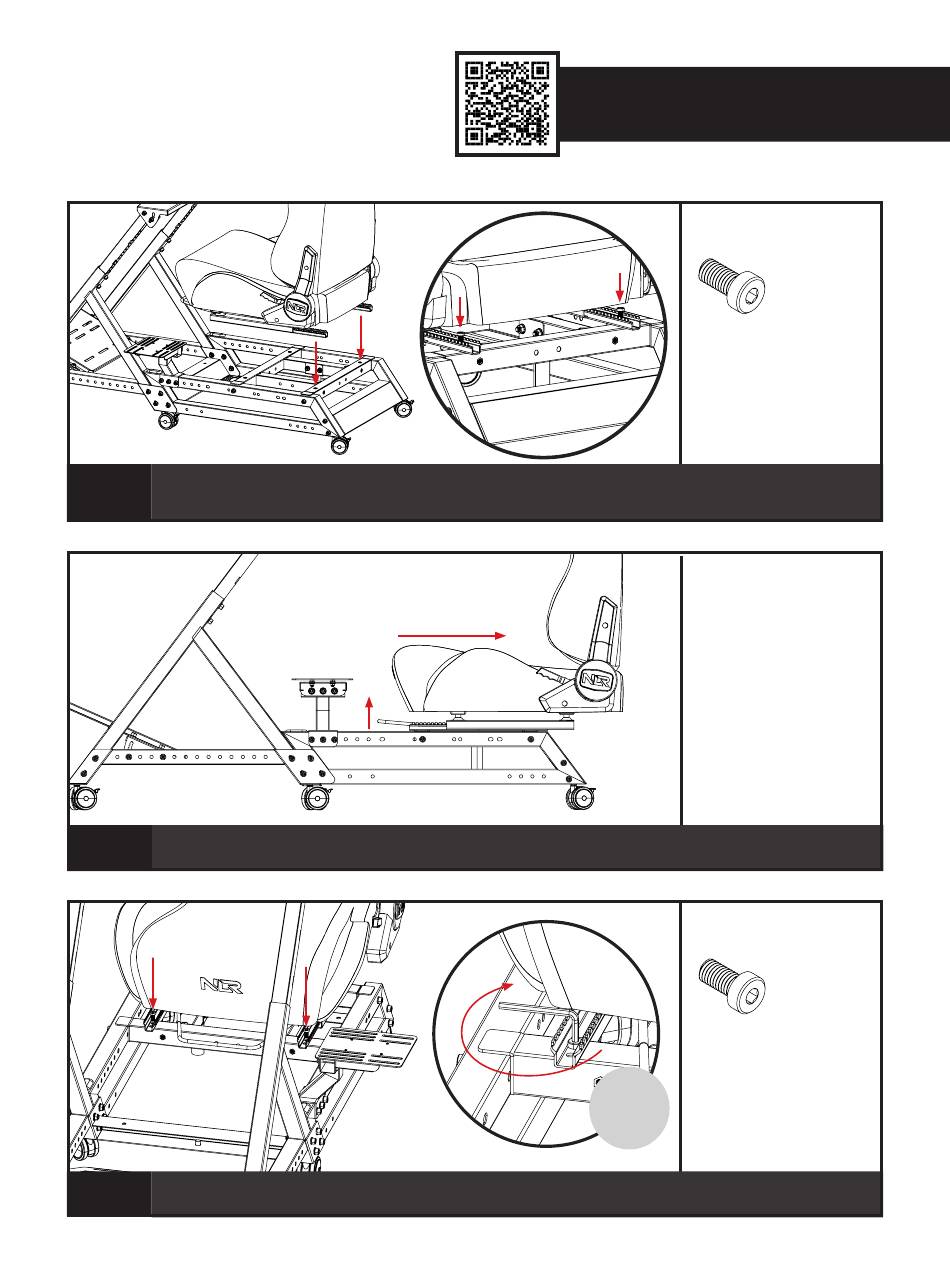

A) Align the identified Seat Slider rear mounting slots with the threaded inserts on the frame.
34
B) Secure the Seat Rail by hand tightening the bolts from step 31. This will help align the front Seat Rail
holes on the cockpit in the following steps.
35
Lift the Seat Slider Lever and slide the Seat all the way back to access the front mounting holes on the
Seat Slider.
A)
36
A) Align the Seat Slider front mounting holes with the inserts in the frame.
B) Bolt through and secure using bolts from Step 29. Secure the rear mounted Seat Rail bolts tight.
Video Instruction: bit.ly/nlrbuild
B)
B)
on other
19
19
PARTS:
• • 2 x M8 16mm Bolts
PARTS:
• • NIL
PARTS:
• • 2 x M8 16mm Bolts
Repeat
side
