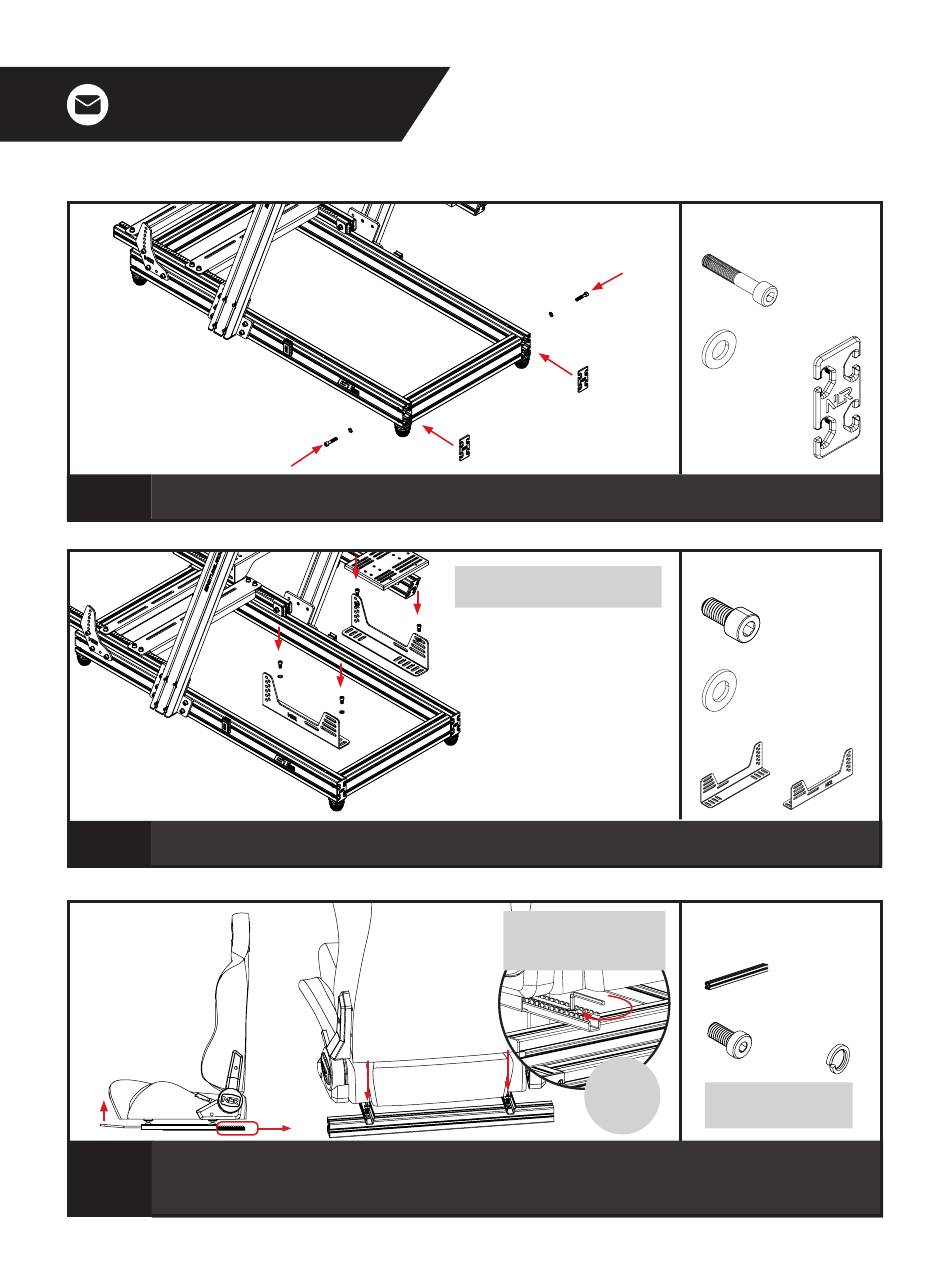

Reinstall the Bolts, Washers and End Caps previously uninstalled in Step 16.
20
Align the mounting slots on the Seat Brackets with the T-Nuts previously installed in Step 18. Bolt
through and secure with 4 x M8 Bolts and Washers.
A)
A) Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the rear mounting slots
21
on the Seat Slider.
B) Align the Seat Slider rear mounting slots with the T-Nuts in the rear 4040 Extrusion that was
uninstalled in Step 14. Secure it to the Seat Sliders using M8 Bolts.
NOTE: Leave Bolts hand tight to allow
adjustment in future steps.
B)
NOTE: Partially tighten bolts
with fingers, then secure using
Allen Key.
Repeat
on Other
Side
14 14
PARTS:
• • 2 x M8 45mm Bolts
• • 2 x M8 Washers
• • 2 x 40x80 End Caps
PARTS:
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
• • 2 x Side Mount Seat Brackets
PARTS:
• • 1 x Rear 4040 Extrusion
• • 2 x M8 16mm Bolts
• • 2 x M8 Spring Washers
Note: Use Spring Washers with M8
Bolts when installing Seat to the
F-GT Elite Cockpit.
