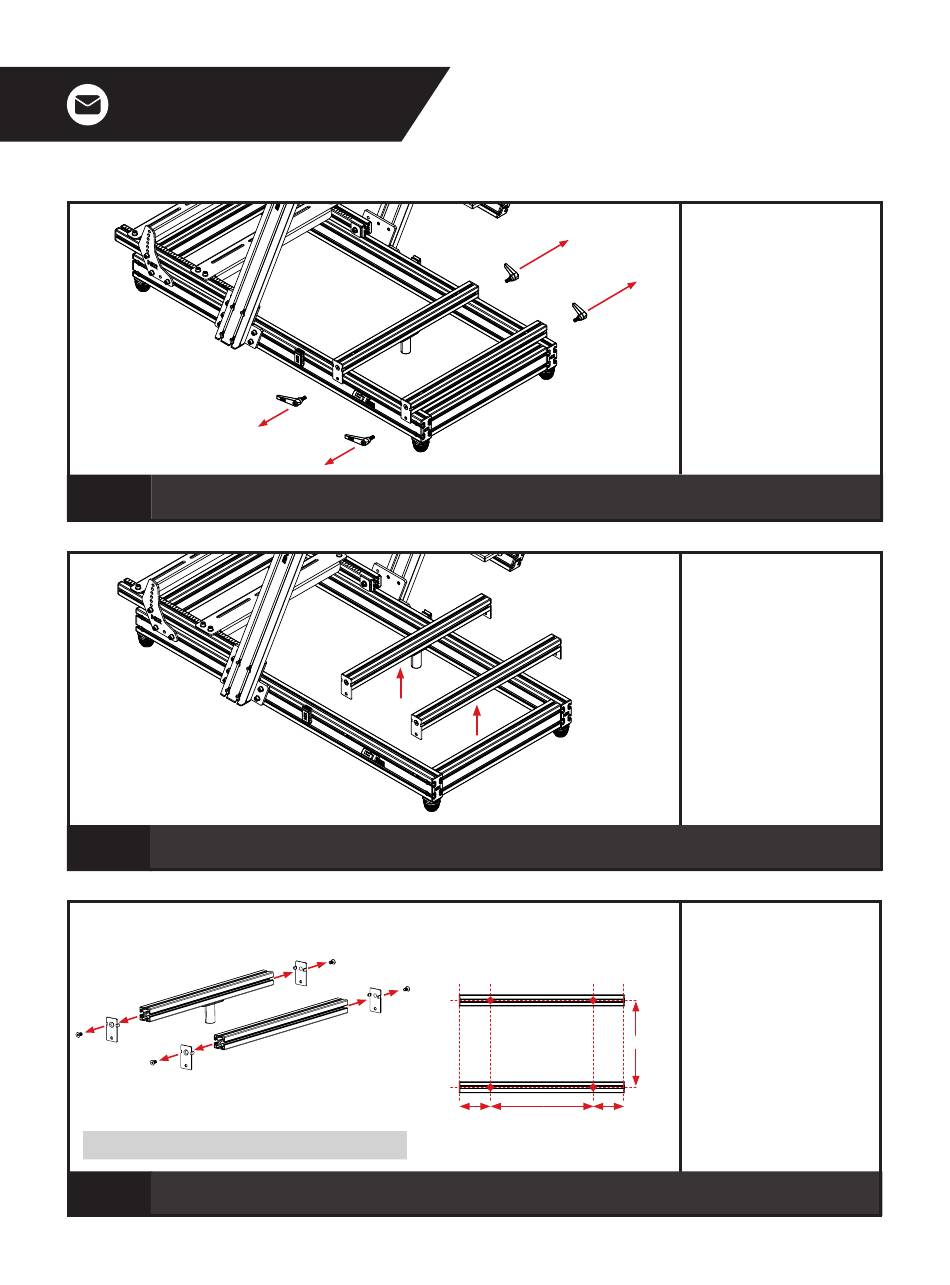

Uninstall the Ratchet Handles securing the 4040 Extrusion Assemblies to the Base Members.
14
Remove the 4040 Extrusion Assemblies.
A)
NOTE: Leave the 4040 Extrusions aside for future steps.
15
A) Uninstall the Countersunk Bolts securing the End Plates to the 4040 Extrusions and remove the End Plates.
B) For ease of installation in later Steps, move T-Nuts in the 4040 Extrusion to locations shown by red dots.
B)
TOP VIEW of 4040 Extrusions from
Elite Cockpits.
(FRONT)
355mm
104mm
(REAR)
12 12
PARTS:
• • NIL
PARTS:
• • NIL
PARTS:
• • NIL
285mm
104mm
