VEVOR XZO-10D Original Bedienungsanleitung Seite 6

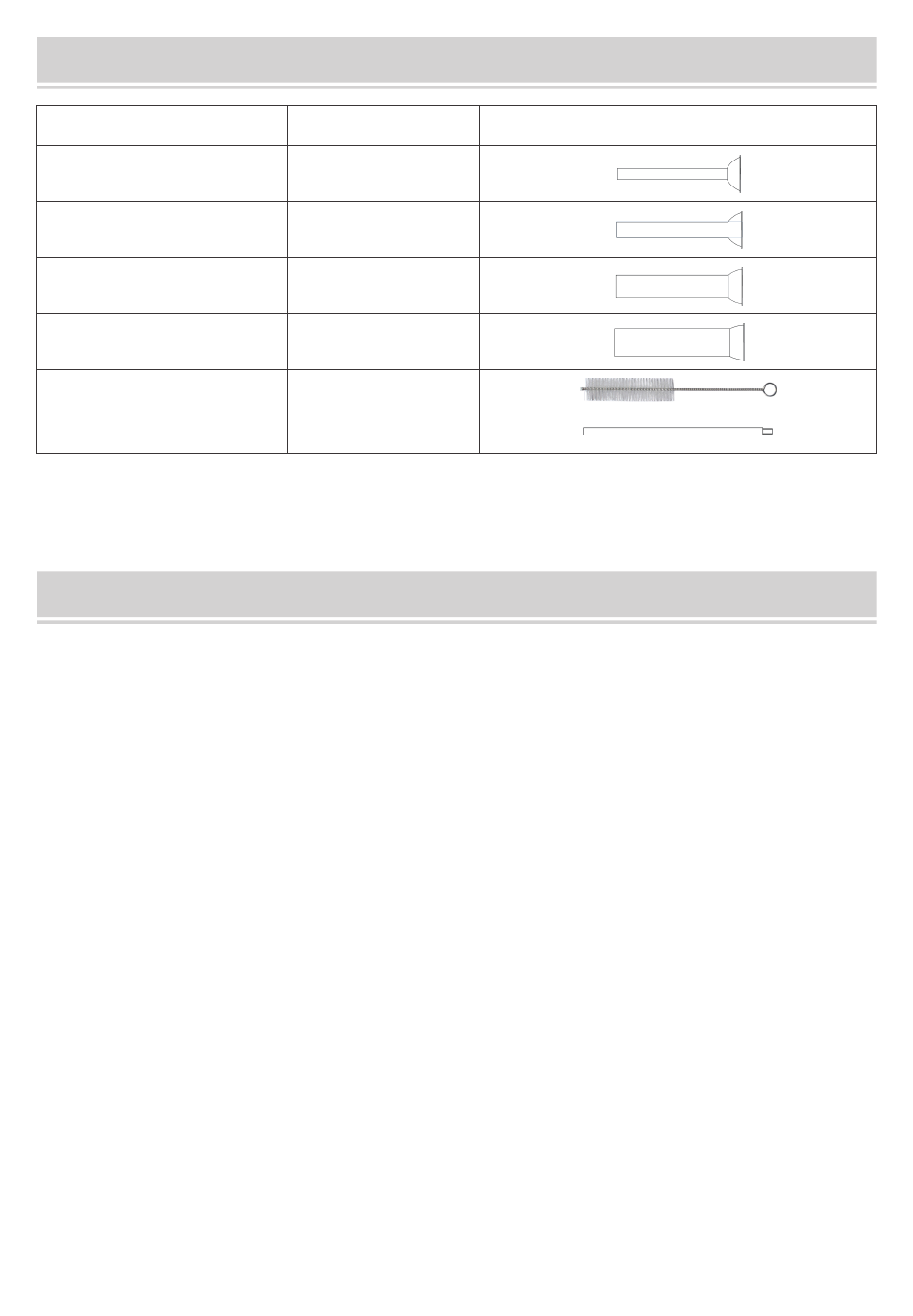

Name
Stuffing tube 16mm
Stuffing tube 22mm
Stuffing tube 32mm
Stuffing tube 38mm
Cleaning brush
Piston rod
1. Choose a workbench with a suitable height and make sure you have enough room for operation.
2. Please make sure the foot switch is plugged into the machine.
3. Assemble the stuffing tube. Four sizes of stuffing tubes have been provided with the unit (Diameters
are 15mm, 21mm, 30mm and 37mm). Choose an appropriate tube and carefully insert it into the fixed
collar, slowly tighten it onto the barrel, press down on the packing tube, and make sure it has been
stuck and locked.
PARTS LIST
QTY
1
1
1
1
1
1
ASSEMBLY AND INSTALLATION
