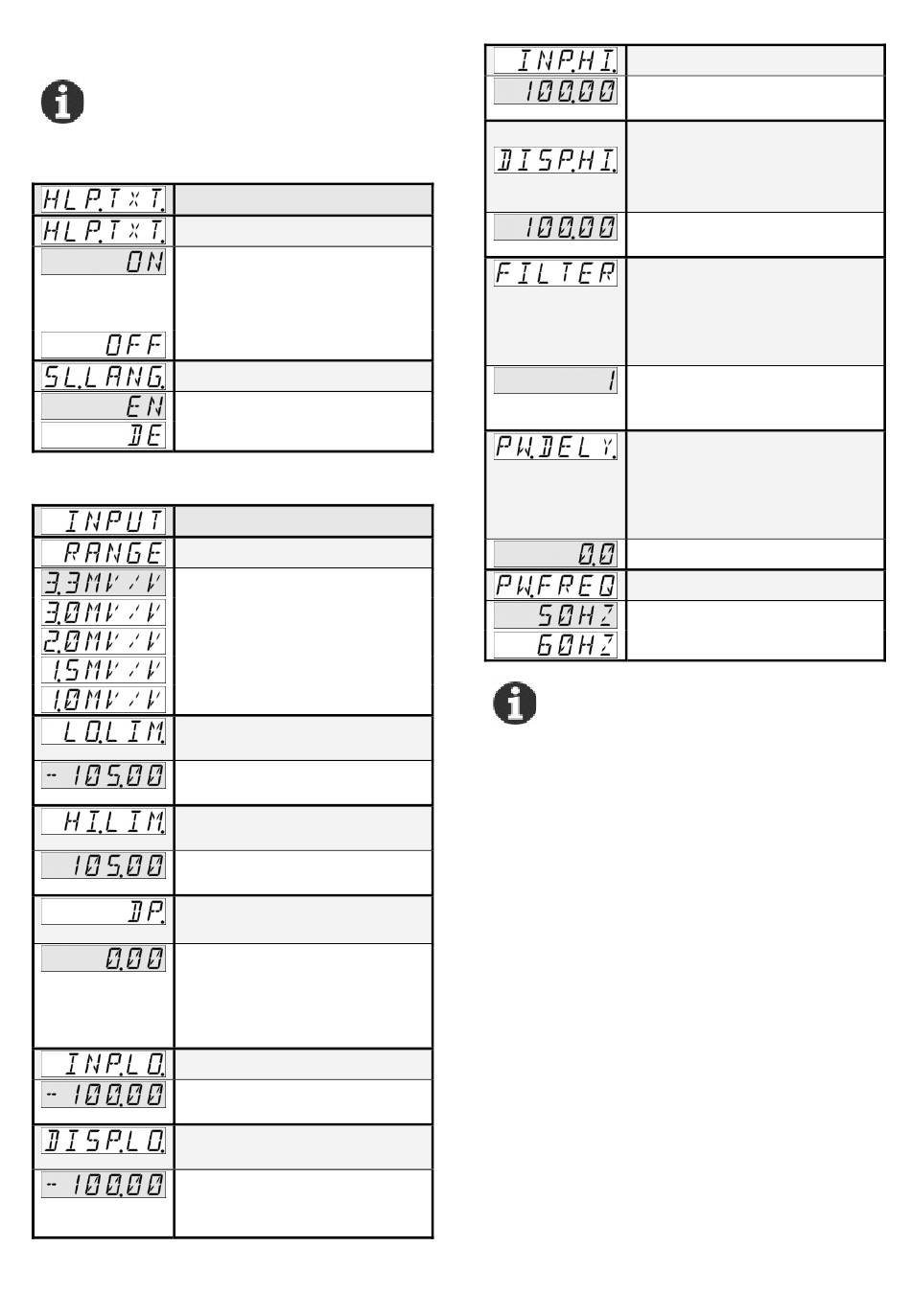

9 Function Groups
Factory settings are highlighted grey
9.1 Help Texts (running text)
9.2 Signal inputs
Page 10
Help Text menu
Select Help Text
ON
- a running text that has
started can be aborted with
any programming key
OFF
Select language for Help Text
English
Deutsch (German)
Menu Input Signal
Select measuring range
Sensitivity 3.3 mV/V
Sensitivity 3.0 mV/V
Sensitivity 2.0 mV/V
Sensitivity 1.5 mV/V
Sensitivity 1.0 mV/V
Select lower measuring range
limit
Input range
0.00 ... -105.00 [%]
Select upper measuring range
limit
Input range
0.00 ... +105.00 [%]
Select decimal point
(optical function only)
0
0.0
0.00
0.000
0.0000
Select input low value
Input range
-105.00 ... +105.00 [%]
Select display low value for
INP.LO.
Input range
-199999 ... +999999 and DP
Select input high value
Input range
-105.00 ... +105.00 [%]
Select display high value for
INP.HI.
Input range
-199999 ... +999999 and DP
Select Input Filter
The Filter function shows how
many measurement cycles are
used to determine the moving
average.
Input range 1 ... 99 [cycles]
- with a value of 1 the filter
function is switched off
Select Start Delay after Power
On
(limit monitoring is processed
only after the programmed
time has expired)
Input range 0.0 ... 99.9 [sec]
Select local mains frequency
Mains frequency 50 Hz
Mains frequency 60 Hz
The input range for the input values is
entered in %. This means that with a
sensor voltage of 10 V and a sensor
sensitivity of 3.3 mV / V then 33 mV
equate to an input value of 100 %.
The functions LO.LIM and HI.LIM limit the
editable range.
The value for HI.LIM must always be
greater than the value for LO.LIM.
