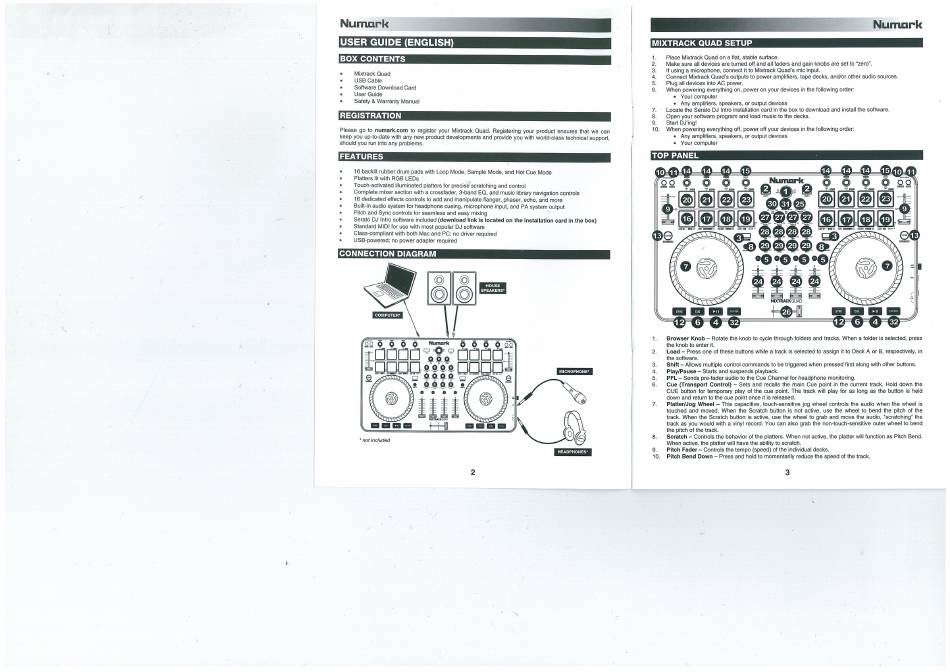

Numark MIXTRACK QUAD Benutzerhandbuch Seite 2

USER GUIDE (ENGLISH)
BOX CONTENTS
Mixtrack Quad
•
USB Cable
Software Download Card
•
User Guide
Safety & Warranty Manual
•
REGISTRATION
Please go to numark.com to register your Mixtrack Quad. Registeringyour product ensures that we can
keepyou up-to-date withanynewproduct d evelopments a ndprovide youwithworld-class technical s upport,
should you run into any problems.
FEATURES
16 backlit rubber drum pads with Loop Mode, Sample Mode, and Hot Cue Mode
Platters lit with RGB LEDs
•
Touch-activatedilluminatedplattersfor precise scratchingand control
Complete mixersection witha crossfader, 3-bandEO,andmusic librarynavigation controls
16 dedicatedeffectscontrolsto add and manipulateflanger, phaser, echo,and more
Built-inaudiosystem for headphone c ueing,microphone input, a ndPAsystem output
•
Pitch and Sync controlsfor seamlessand easy mixing
•
SeratoDJ Intro softwareincluded(download link is located on the installation card in the box)
•
Standard MIDI for use with most popular DJ software
•
Class-compliant with both Mac and PC; no driver required
•
USB-powered; no power adapter required
CONNECTION DIAGRAM
O
HOUSE
SPEAKERS•
COMPUTER•
0 6-00
e OO_öö
• not incltMed
2
MIXTRACK QUAD SETUP
Place Mixtrack Quad on a flat, stable surface.
2. Make sure all devices are turned off and all faders and gain knobs are set to "zero".
3. If using a microphone, connect it to Mixtrack Quad's mic input.
4. Connect Mixtrack Quad's outputs to power amplifiers, tape decks, and/or other audio sources.
Plug all devices into AC power.
5.
6. When powering everything on, power on your devices in the following order:
• Your computer
Any amplifiers, speakers, or output devices
7. Locate the Serato DJ Intro installation
Open your software program and load music to the decks.
8.
9. Start DJ'ing!
10. When powering everything off, power off your devices in the following order.
• Any amplifiers, speakers, or output devices
• Your computer
TOP PANEL
10 1 1 _ 14 _ 14 _
o
—12= 6 4 = 32
I. Browser Knob —Rotate the knob to cycle through folders and tracks. When a folder is selected, press
the knob to enter it.
2. Load —Press one of these buttons while a track is selected to assign it to Deck A or B, respectively, in
the software.
3. Shift —Allows multiple control commands to be triggered when pressed first along with other buttons.
Play/Pause — Starts and suspends playback.
MICROPHONE' 4.
5. PFL — Sends pre-fader audio to the Cue Channel for headphone
Cue (Transport Control) — Sets and recalls the main Cue point in the current track. Hold down the
6.
CUE button for temporary play of the cue point. The track will play for as long as the button is held
down and return to the cue point once it is released.
7. Platter/Jog Wheel —This capacitive, touch-sensitive jog wheel controls the audio when the wheel is
touched and moved. When the Scratch button is not active, use the wheel to bend the pitch of the
track. When the Scratch button is active, use the wheel to grab and move the audio, •scratching" the
track as you would with a vinyl record. You can also grab the non-touch-sensitive outer wheel to bend
the pitch of the track.
Scratch —Controls the behavior of the platters. When not active, the platter will function as Pitch Bend.
8.
When active, the platter will have the ability to scratch.
9. Pitch Fader —Controls the tempo (speed) of the individual decks.
HEADPHONES•
Pitch Bend Down —Press and hold to momentarily reduce the speed of the track.
10.
card in the box to download and install the software.
1 5 14
28 28 28 28
eo 00 00
o
24 24 24 24
12
monitoring.
