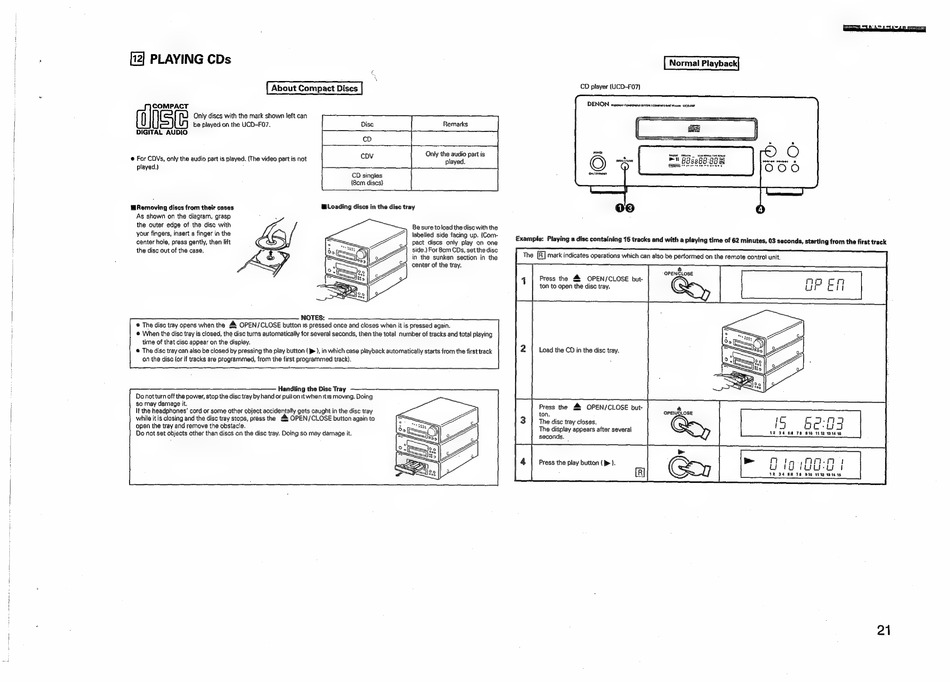

PLAYING CDs
About Compact Discs
COMPACT
Only discs with the mark shown left can
be played on the UCO-F07.
DIGITAL AUDIO
@ For CDVs, only the audio part is played. (The video part is not
played.)
Removing discs from their cases
As shown on the diagram, grasp
the outer edge of the disc with
your fingers, insert a finger in the
center hole, press gently, then lift
the disc out of the case.
=
NOTES:
® The disc tray opens when the
OPEN/CLOSE button is pressed once and closes when it is pressed again.
© When the disc tray is closed, the disc turns automatically for several seconds, then the total number of tracks and total playing
time of that disc appear on the display.
Handling the Disc Tray
-——_|
the audio part is
played.
CD singles
(8cm discs)
WlLoading discs in the disc tray
Be sure toload the disc with the
labelled side facing up. {(Com-
pact discs only play on one
side.) For 8cm CDs, set the disc
in the sunken section in the
center of the tray.
@ The disc tray can also be closed by pressing the play button ( > ), in which case playback automatically starts from the first track
on the disc (or if tracks are programmed, from the first programmed track).
Do not turn off the power, stop the disc tray by hand or pullon it when itis moving. Doing
so may damage it.
If the headphones' cord or some other object accidentally gets caught in the disc tray
while it is closing and the disc tray stops, press the 44 OPEN/CLOSE button again to
open the tray and remove the obstacle.
Do not set objects other than discs on the disc tray. Doing so may damage it.
Normal Playback
CD player (UCD-F07)
DENON rnsone couronse
stat commart one are UCase
sean TE
e's Boseoe doa
te naguaes
Press the
{ OPEN/CLOSE but-
ton to open the disc tray.
Load the CD in the disc tray.
Press the 4 OPEN/CLOSE but-
ton.
OPENK A ose
The disc tray closes.
The display appears after several
seconds.
—
a
Press the play button ( D>).
(Eas:
pe
Reesor a ge
12 34 $6 78 910 1112 131416
met
myth
t
Weed fui
a
12°34 86 78 810 1192 131415
21
