ISEO Smart RELAY 2.0 Installationsanleitung Seite 2

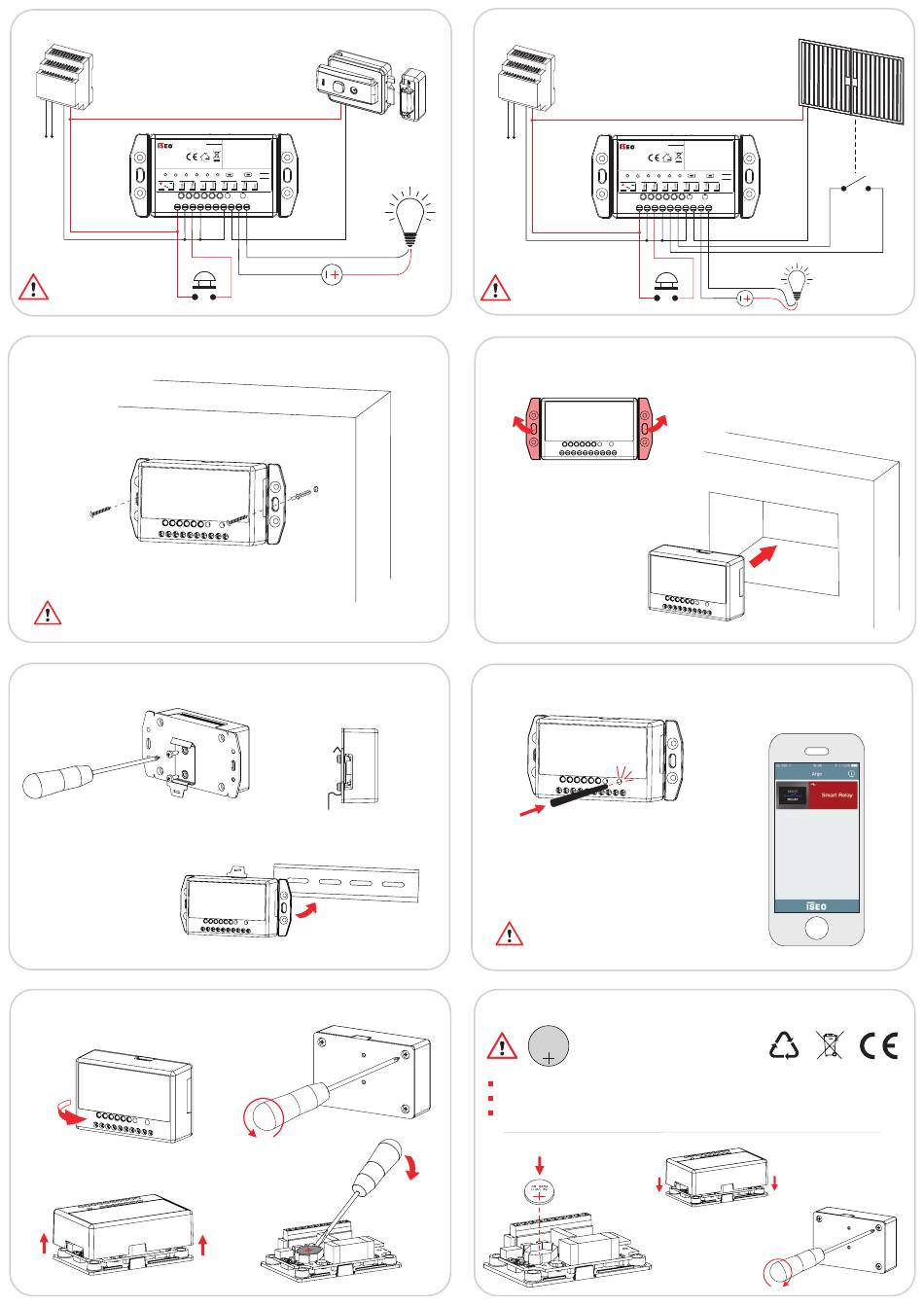

CONNECTION EXAMPLE: SMART RELAY SWITCH ON A COURTESY LIGHT
WHEN OPENING AN ELECTRIC LOCK
Power
supply
230 VAC
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
OUTPUT: 1A - 30VDC/VAC
12 - 24VAC (4VA)
ARGO Power REX IN
Power IN REX
VDC
To program the OUTPUT
behaviour refer to the Argo
User Manual available at
app.iseo.com.
INSTALLATION ON THE WALL
Wall fixing screws and plugs (4 mm diameter), supplied in the kit.
INSTALLATION ON THE DIN RAIL
1
3
MAINTANANCE: BATTERY REMOVAL
1
3
Electric lock
REMOTE ANT .
OUT RELAY SW1 MASTER SER
AUX
INPUT RELAY OUTPUT
Power supply
(MAX 30 VDC/AC)
2
2
4
CONNECTION EXAMPLE: SMART RELAY CHECK DOOR STATUS AND USE IT
TO SWITCH ON A COURTESY LIGHT
230 VAC
Courtesy Light
(MAX 1 A)
To program the INPUT and
the OUTPUT behaviour, refer
to the Argo User Manual
available at app.iseo.com.
INSTALLATION INSIDE A BOX
1
CRACK!
FIRST CONFIGURATION
1
PUSH
For the Smart Relay conguration with Argo, read the
Argo User Manual available at app.iseo.com.
MAINTANANCE: NEW BATTERY INSTALLATION
3V
Lithium
CR2032
Risk of explosion if the battery is replaced with an incorrect type.
Dispose of batteries according to your local environmental laws and guidelines.
Battery replacement must be carried out by qualied technical staff.
PUSH
1
Power
supply
REMOTE ANT .
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
ARGO Power REX IN OUT RELAY SW1 MASTER SER
AUX
Power IN REX INPUT RELAY OUTPUT
VDC
CRACK!
2
CLICK!
Plastic pin
Lithium Battery
Cr2032 - 3 V
2
Electric gate
Door
status
sensor
Courtesy Light (MAX 1 A)
switch ON only when
gate has open.
2
3
